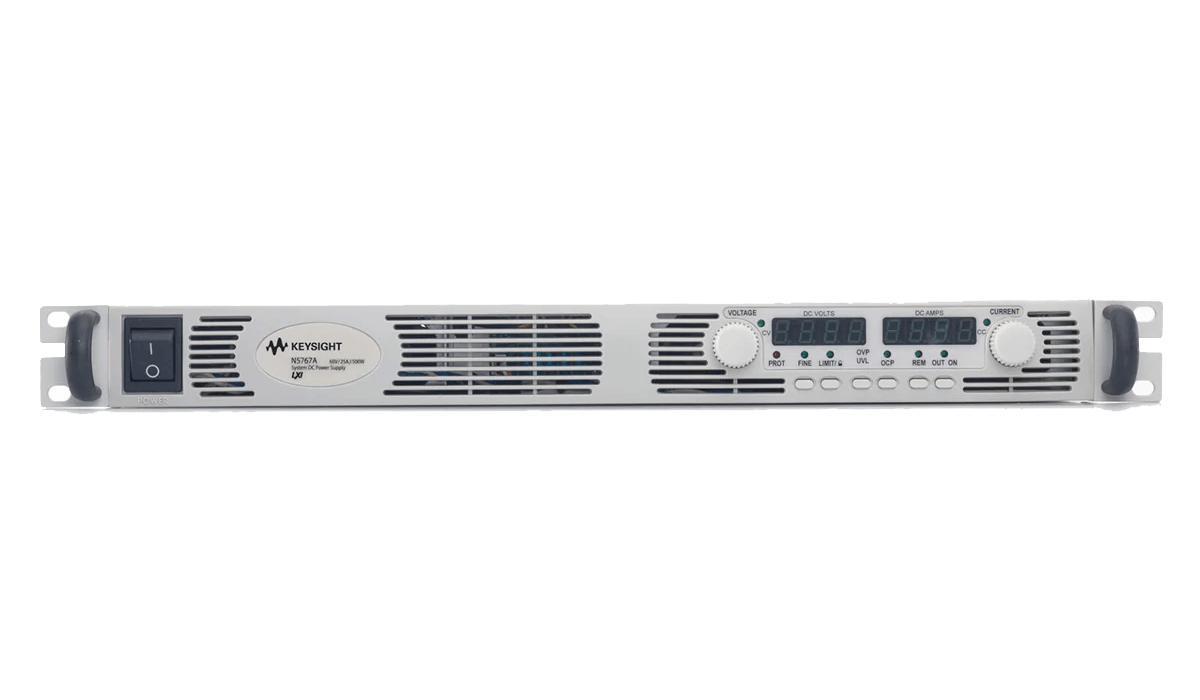

Keysight N5767A Power Supply | 60 V, 25 A, 1500 W

Tech Support
(800) 404-2832

With Every
Rental

Worldwide
Delivery

Rent Now

Larger

SKU: AGIL-N5767A

Categories

DC Power Supply

Documents

Datasheet

The Keysight N5767A Power Supply is a single output source with a capability of delivering up to 60V and 25A, culminating in a maximum output power of 1500W. With a power supply that stands out for its versatility and reliability in providing precise power delivery, the Keysight N5767A provides universal AC input, GPIB, LAN, USB, LXI compliance, and analog/resistance control of output voltage and current. It delivers solid performance and various capabilities in a compact 1U package, as well as featuring a user-friendly interface that simplifies operation. The Keysight N5767A Power Supply was previously manufactured as the Agilent N5767A Power Supply.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

DC Output Ratings	Voltage: 60 V Current: 25 A Power: 1500 W
Output Ripple & Noise	CV p-p²: 60 mV CV rms³: 8 mV
Load Effect (change from 10% to 90%)	Voltage: 8 mV Current: 10 mA
Source Effect (change from 85 – 132 VAC input or 170 – 265 VAC input)	Voltage: 8 mV Current: 4.5 mA
Programming Accuracy	Voltage: 0.05% +30 mV Current: 0.1% +25 mA
Measurement Accuracy	Voltage: 0.1%+ 60 mV Current: 0.1%+ 75 mA
Load Transient Recovery Time	Time: ≤1 ms
