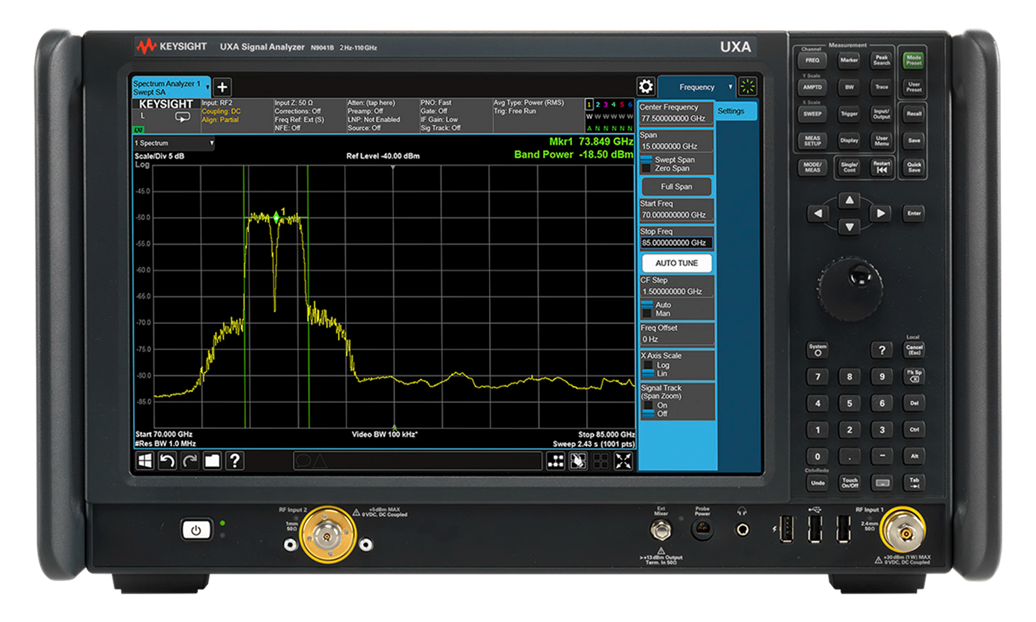

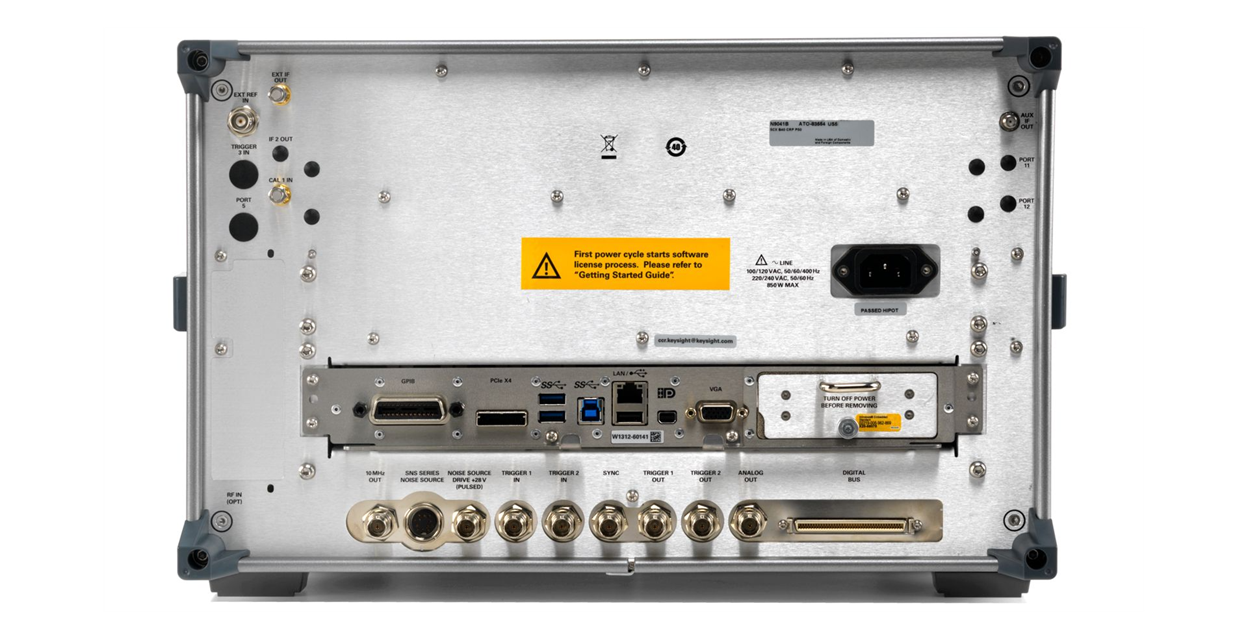

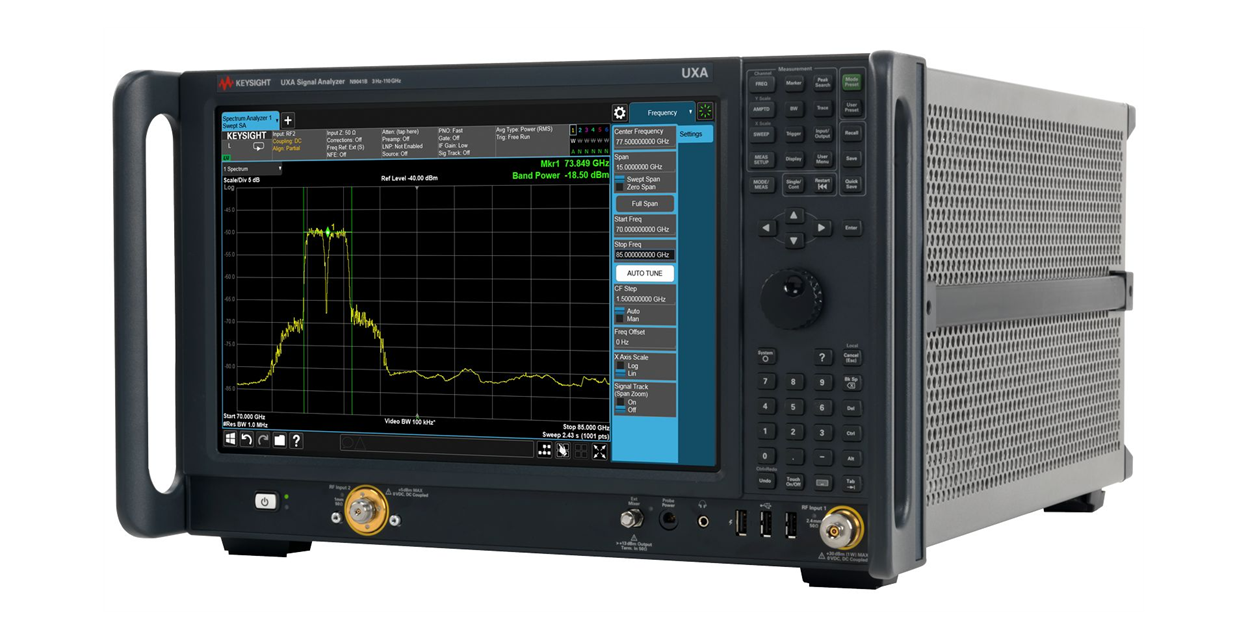

Keysight N9041B UXA Signal Analyzer

Option 5CX, 2Hz – 110GHz

The Keysight N9041B UXA Signal Analyzer configured with Options 5CX, H1G, and RT2 provides a complete high-performance solution. With option 5CX, the analyzer covers 2 Hz to 110 GHz, while option H1G enables up to 1 GHz of analysis bandwidth. Option RT2 adds real-time spectrum analysis with 2 GHz real-time bandwidth and 100% probability of intercept for signals ≥3.84 µs. This integrated configuration achieves a displayed average noise level as low as −174 dBm with a preamplifier, amplitude accuracy of ±0.25 dB, and phase noise of −127 dBc/Hz at 1 kHz offset, making it suited for wideband 5G/6G, satellite, radar, and electronic warfare applications.

Product Info Related Products

Frequency Range	2 Hz – 110 GHz
Analysis Bandwidth	Up to 1 GHz
Real-Time Spectrum Analysis	2 GHz real-time bandwidth (Option RT2) 100% POI for signals ≥3.84 µs
Resolution Bandwidth (RBW)	1 Hz – 3 MHz standard; extended with options
Displayed Average Noise Level (DANL)	As low as −174 dBm with preamplifier (frequency-dependent)
Amplitude Accuracy	±0.25 dB at 50 MHz (Input 1)
Phase Noise (1 GHz carrier)	−127 dBc/Hz @ 1 kHz offset; −145 dBc/Hz @ 1 MHz offset
Frequency Reference Accuracy	±6.6 × 10⁻⁸ (1 year after adjustment)
Maximum Safe Input Level	+30 dBm (≤50 GHz), +25 dBm to +5 dBm above 50 GHz depending on band
Sweep Time	1 μs to 6000 s (zero span), 1 ms to 4000 s (swept span)
Display	14.1" capacitive multi-touch, 1280 × 800 resolution
Dimensions (H × W × D)	281 × 459 × 575 mm
Power Consumption	Up to 850 W (depending on configuration)

Analyze bandwidth-hungry emerging standards such as 5G and automotive radar with up to 1 GHz internal analysis bandwidth and up to 5 GHz external
Make continuous sweeps up to 110 GHz
Capture lower-level spurious signals with DANL as low as -150 dBm/Hz (> 50 GHz)
Record and analyze real-world environments with gap-free streaming up to 255 MHz
Compatible with X-Series application, enabling you to simplify complex measurements and deliver repeatable results
Add the real-time analysis option and detect signals as short as 3.51 µs
See more and take your design farther with the 14.1-inch screen

5G FR2 / 6G research – wideband carrier aggregation and spectrum analysis up to 110 GHz.
Satellite communications – wideband transponders, high-frequency payload testing.
Radar / EW – pulse characterization, wideband threat simulation, interference hunting.
Spectrum monitoring – capture and analyze fast, transient events in real time.

SKU: KEYS-N9041B-5CX-PKG01
