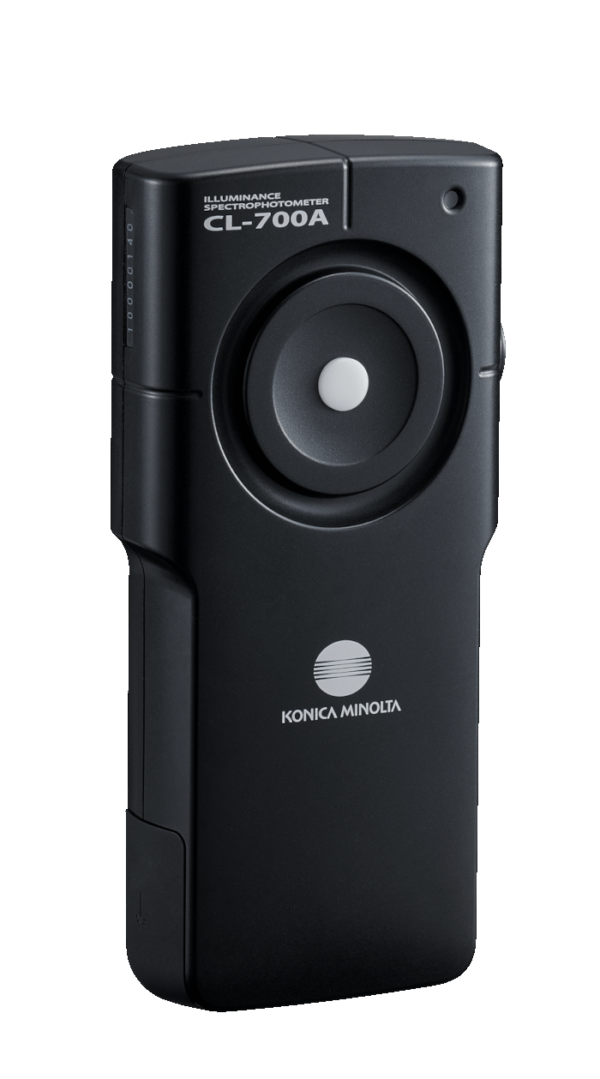

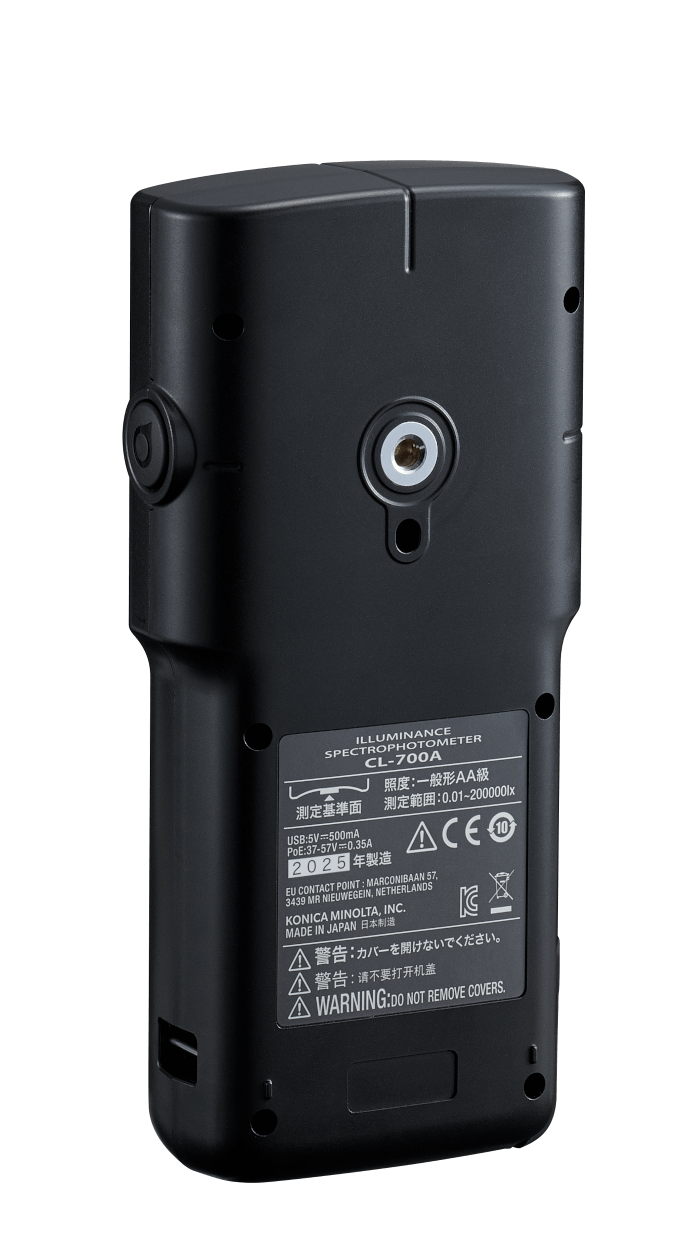

Konica Minolta CL-700A

Illuminance Spectrophotometer | 360 nm – 1,000 nm

The Konica Minolta CL-700A Illuminance Spectrophotometer measures spectral and illuminance data across 360 nm to 1,000 nm with an illuminance range of 0.01 lx – 200,000 lx and measurement speeds as fast as 0.3 seconds. It supports illuminance, chromaticity, CCT, CRI, TM-30, TLCI, PPFD, EML, and spectral irradiance measurements, with automatic zero calibration and multi-point measurement using up to 15 units. USB, Ethernet, PoE, and CL-S30 software support instrument control, data visualization, and integration into automated light measurement systems.

Product Info Related Products

Wavelength Range	360 nm – 1,000 nm
Illuminance Measurement Range	0.01 lx – 200,000 lx
Output Wavelength Pitch	1 nm
Spectral Bandwidth	Approx. 10 nm Half Bandwidth
Wavelength Precision	±0.3 nm
Illuminance Accuracy	±2% ±1 Digit
Chromaticity Accuracy Range	0.5 lx and Above
V(λ) Mismatch	Within 1.5%
Measurement Time	0.3 s Super FAST; 0.5 s FAST; Approx. 0.5 s – 5 s Normal
Measurement Functions	Illuminance, Chromaticity, CCT, Duv, CRI, S/P Ratio, EML, PPFD, Irradiance, Spectral Irradiance
Multi-Point Measurement	Up to 15 Units
Interfaces	USB 2.0, Ethernet
Power	USB Bus Power or PoE (IEEE 802.3af)
Operating Temperature	0°C – 40°C
Operating Humidity	≤85% RH at 35°C, Non-Condensing
Storage Temperature	-10°C – 45°C
Dimensions (W × H × D)	80 × 170.5 × 35 mm

Wide Spectral Range (360–1000 nm)
Broad Illuminance Range (0.01 to 200,000 lux)
Multi-Point Measurement Capability up to 15 synchronized units
Compact and Lightweight Design
CL-S30 Software Included for streamlined data management
Fast Measurement Speeds Offers Super-FAST mode (within 0.3 seconds) and NORMAL mode (up to 5 seconds)
High Accuracy and Repeatability 0.0005 xy (≥50 lx), supporting compliance with industry standards.
USB and Ethernet Connectivity enabling flexible integration
Automatic Zero Calibration and Wavelength Correction

Evaluate LED performance, color rendering, and illuminance uniformity in commercial, industrial, and architectural lighting systems.
Ensure cockpit and cabin lighting systems meet stringent aviation standards.
Calibrate image sensors and displays using both visible and NIR light.
