LAUDA Integral IN 750 XT

Process Thermostat | -50 – 220°C, 7kW @ 20°C Cooling

The LAUDA Integral IN 750 XT is a process thermostat with integrated cooling that provides dynamic temperature control from –50 °C to 220 °C with ±0.05 K stability for external circuits. It delivers up to 8 kW heating power, 7 kW cooling capacity, and 65 L/min pump flow with 3.1 bar pressure, controlled by a PID system with programmable temperature profiles and self‑adapt tuning. The unit includes USB and Ethernet interfaces, an integrated web server, SmartCool energy management, and safety systems such as overtemperature protection, ATEX gas sensors, and quick‑stop shutdown for controlled operation in industrial environments.

Product Info Related Products

Temperature Range	–50 °C – 220 °C
Temperature Stability	±0.05 K
Heating Power	8 kW (max)
Cooling Capacity	Up to 7 kW (temperature dependent)
Pump Pressure	Up to 3.1 bar
Pump Flow Rate	Up to 65 L/min
Controller Type	Electronic PID control with self-adapt function
Programmability	150 segments, up to 5 programs
Cooling System	Integrated refrigeration with air-cooled condenser
Refrigerant	R-290 (GWP 3)
Interfaces	USB, Ethernet (expandable RS232/485, Profibus, EtherCAT)
Remote Operation	Integrated web server (browser-based control)
Power Supply	400 V; 3/PE; 50 Hz
Power Consumption	Up to 11 kW
Filling Volume	4.8 L – 17.2 L

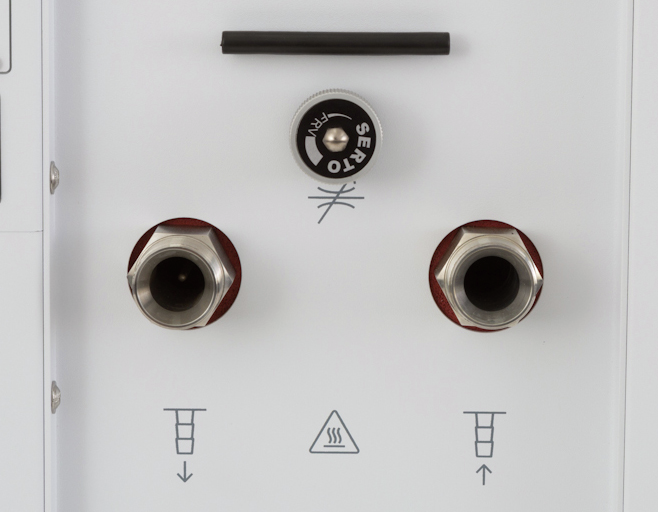

Connections	M30 x 1.5 thread, 3/4" hose
Dimensions (W × D × H)	560 × 550 × 1325 mm
Weight	176 kg
Noise Level	65 dB(A)

Process thermostat with integrated cooling system for dynamic temperature control within external circuits
Management of heat transfer liquids with stored properties
ATEX-certified gas warning sensors with warning and switch-off function and external status interface for higher-level safety systems
Self adapt function for determination of control parameters
Powerful LAUDA Variopump (pressure pump) with 8 selectable output levels or control of outflow pressure
Remote fault indication through floating contact
Programmer with 150 temperature/time segments that can be separated into 5 programs
Integrated web server for browser based operation in local area networks via PC, tablet or smart phone, secure data transfer due to authentication procedure and encryption
Utilizes natural refrigerants

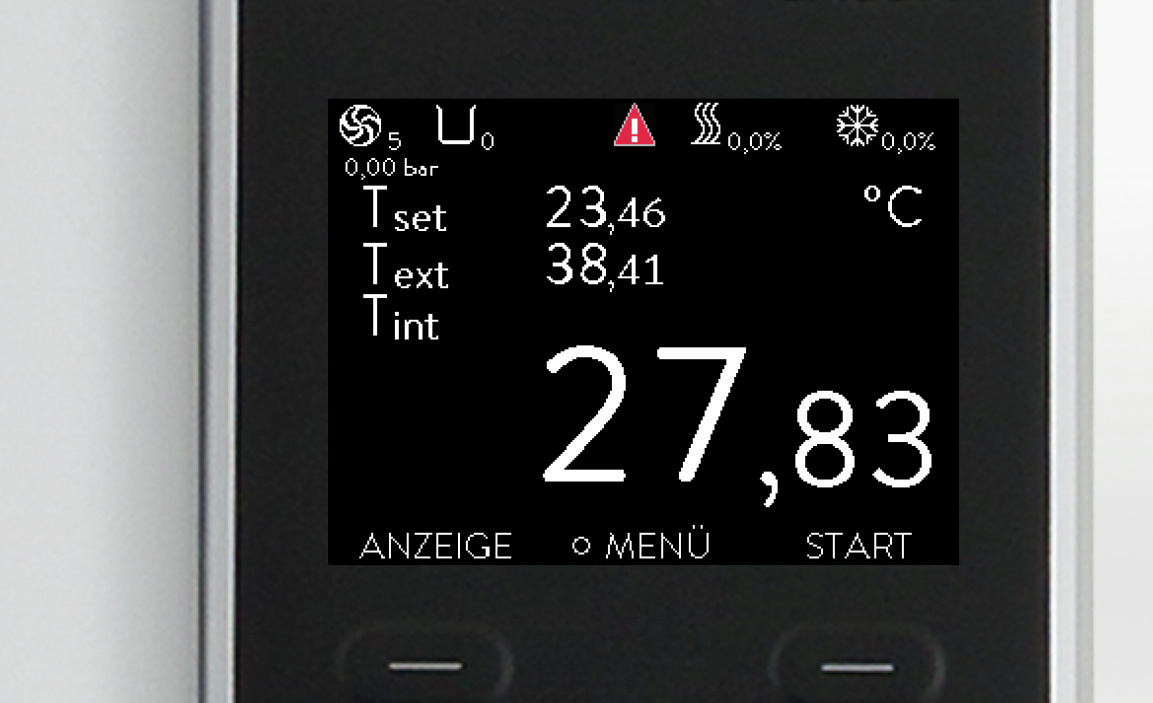

Colored TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Quick-stop function via black push-button and connection contacts for remote release
PowerAdapt system for the use of the maximum possible amount of heat permitted by the power supply system
USB and Ethernet interface equipped as standard
Option for upgrading up to 2 additional interfaces (RS 232/485, Profibus, analogue, contact or EtherCAT module)
Digital display of pump pressure
SmartCool system for energy-saving digital cooling management including compressor on-off control
SelfCheck Assistant for system diagnosis
Fully electronic continuous controller with PID action for internal & external control
Low-level and adjustable over-temperature protection with acoustic alarm for use with flammable and non-flammable liquids
Port for external Pt100 integrated, second external Pt100 feasible via interface module
Integrated and adjustable bypass
Very small internal volume and big non-thermostated expansion vessel (cold fluid layer system)
Condenser cooling Air
