Montena NEMP140

Radiated Susceptibility Test Setup | 140 cm

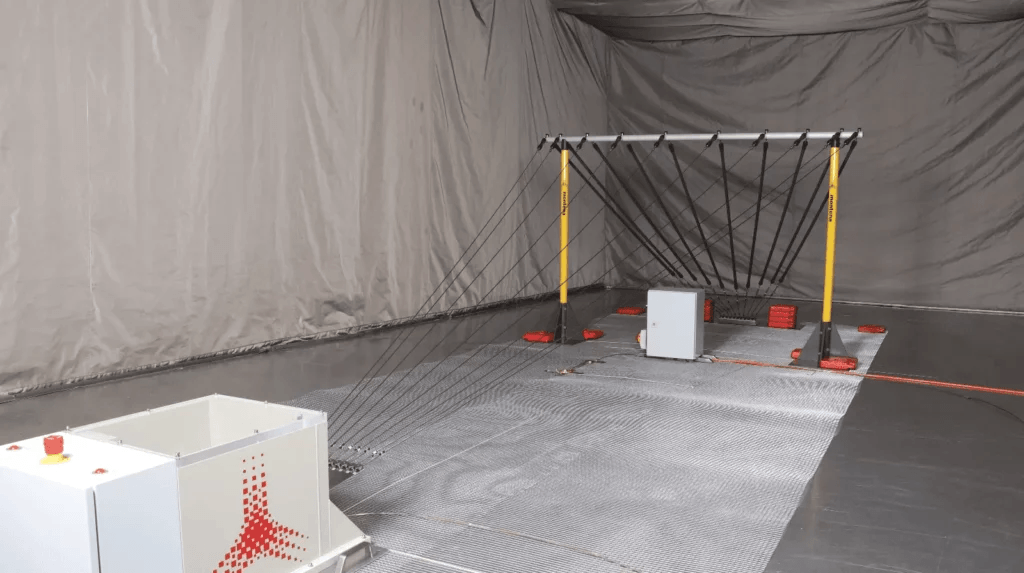

The Montena NEMP140 is a transportable radiated susceptibility test system designed to evaluate the immunity of electronic equipment and subsystems to nuclear electromagnetic pulse (NEMP) environments in accordance with the MIL-STD 461 RS105 test procedure. The system generates a high-voltage pulse that propagates along a radiating line above a conductive ground plane, creating a vertically polarized electromagnetic field capable of exceeding 50 kV/m within the test area. Designed for EMC compliance testing, the NEMP140 offers a charging voltage range of less than 5 kV to 80 kV with positive or negative polarity, a pulse rise time of 2.3 ± 0.5 ns, and a pulse duration of 23 ± 5 ns. These capabilities make the Montena NEMP140 an ideal solution for MIL-STD-461 RS105 radiated susceptibility testing, electromagnetic compatibility (EMC) testing, and NEMP immunity evaluation in defense, aerospace, and electronics applications.

Product Info Related Products

Charging voltage	< 5 - 80kV, positive and negative polarities
Peak electric field strength	≥50kV/m at full charging voltage
Electric field polarisation	vertical
Pulse rise time (10 - 90%)	2.3 ± 0.5ns
Pulse duration (50 - 50%)	23ns ± 5ns
Line structure	bounded wave line / TEM mode
Generator configuration	direct discharge
Power rating	90 - 264VAC / 47 - 63Hz / <70VA / fuse 10AT

Easy assembly and disassembly
Can be operated:
- Indoor (ideally in a semi-anechoic chamber)
- Outdoor when the weather is good
Automated test and report generation

Assesses the immunity of electronic equipment and subsystems to an electromagnetic pulse in accordance with MIL-STD-461 RS105
Defense & military electronics qualification
Aerospace & avionics testing
Critical infrastructure hardening
Electronic subassemblies and PCB testing
- Printed circuit boards (PCBs)
- Electronic modules
- Small subsystems
- Embedded control units
