Narda 8711/8721 Radiation Safety Meter 300 MHz - 40 GHz

Narda 8711/8721 Radiation Safety Meter
Enlarge Image

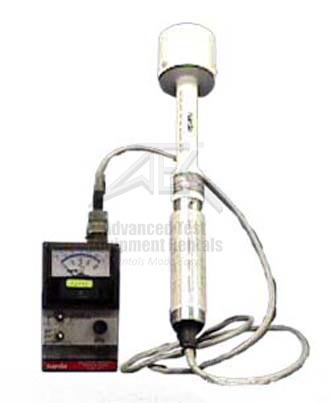

Narda 8711 / 8721
Request Quote Print Page
Other1
The Narda 8711 Radiation Safety Meter operates from a standard 9V battery.



Specifications:

  • Meter
    • Type: D'Arsonval
    • Size: 1.5"
    • Scales: mW/cm² and % of Standard
  • Dynamic Range: 30 dB
  • Response Time: 1 second, 3 seconds most sensitive scale
  • Auto-commutating zero: Yes
  • Batteries Circuit: Standard 9V (250 Hr Life)
  • Size: 4.63" x 2.63" x 1.75"
  • Weight: 1.3 lb

Electric Field Probe - Model 8721

  • Frequency Range: 300 MHz to 40 GHz
  • Measurement Range: 10µW/cm² to 20mW/cm²
  • Shape: Flat
  • CW Overload (mW/cm²): 600
  • Peak Overload (W/cm²): 200
