NetAlly AirCheck G3 Pro Wireless Tester

The NetAlly AirCheck G3 Pro is a handheld wireless tester for validating and troubleshooting Wi-Fi 6/6E/7 networks across the 2.4, 5, and 6 GHz bands. It integrates a 2×2 test radio and 1×1 management radio, supports Bluetooth 5/BLE testing, and includes AutoTest for one-button Wi-Fi assessment. The unit offers AirMapper site survey capability, packet capture up to 1 GB, and remote collaboration via Link-Live. It features a 5-inch touchscreen, and a 10-hour battery life.

Product Info Related Products

Wi-Fi Standards	802.11a/b/g/n/ac/ax (Wi-Fi 6/6E) with Wi-Fi 7 visibility
Frequency Bands	2.4 GHz (2.412–2.484 GHz) 5 GHz (5.170–5.825 GHz) 6 GHz (5.925–7.125 GHz)
Radios	2×2 tri-band Wi-Fi test radio 1×1 dual-band Wi-Fi/Bluetooth management radio
Bluetooth/BLE	Version 5.0, supports site survey capability
Key Functions	AutoTest profiles, AirMapper site survey, packet capture (up to 1 GB), remote troubleshooting with Link-Live, optional spectrum analysis (NXT-2000)
Display	5 in. color LCD touchscreen, 720 × 1280 pixels
Memory	~8 GB user-accessible for results and apps
Battery	Rechargeable Li-ion, ~10 h runtime, ~3–4 h recharge

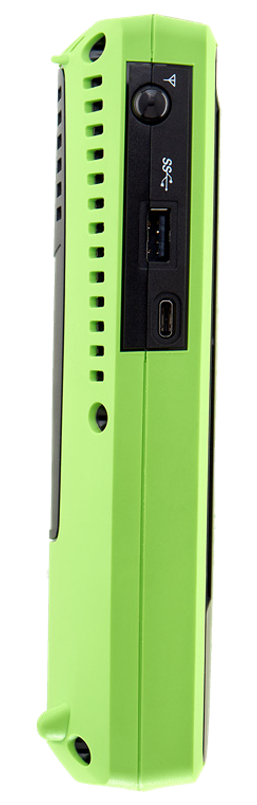

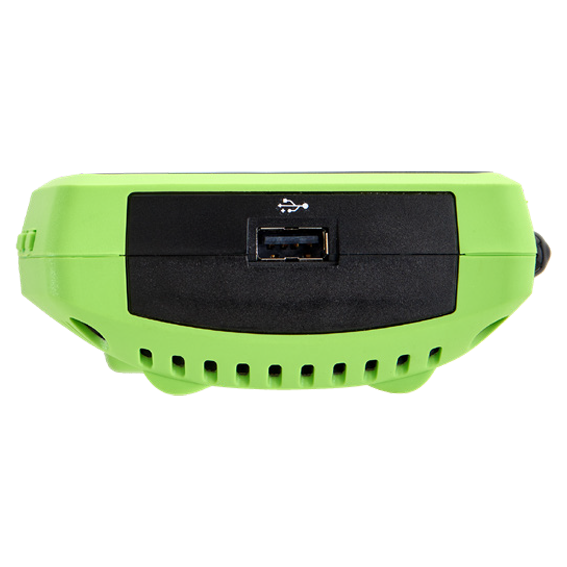

Interfaces	2× USB Type-A, 1× USB-C (charging/power), RP-SMA external antenna port
Compliance	MIL-PRF-28800F Class 3 shock/vibration IEC 61010-1 safety FCC/CISPR 11 EMC

Test, verify, and troubleshoot technology upgrades, Wi-Fi networks, and Bluetooth/BLE devices with advanced testing apps and purpose-built hardware
Validate Wi-Fi network performance for critical services and key end devices
Quickly find the physical location of Wi-Fi access points and clients on the 2.4 GHz, 5 GHz, and 6 GHz bands
Supports 2.4 GHz, 5G Hz, and 6 GHz spectrum analysis with the optional NXT-2000 Portable Spectrum Analyzer adapter
Faster and easier Wi-Fi and Bluetooth/BLE site surveys with AirMapper™ Site Survey
Enables remote engineers to troubleshoot and collaborate with on-site technicians to solve tough problems at remote sites, saving time and cost of travel
Seamlessly consolidate, analyze, manage field test data, and integrate with network management systems via Link-Live™ collaboration, reporting, and analysis platform
Automatically discover and instantly generate a topology map of your wired and Wi-Fi networks using Link-Live
