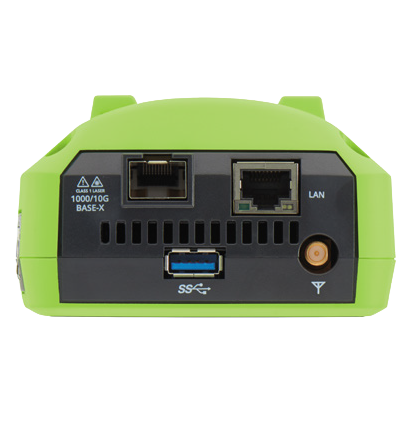

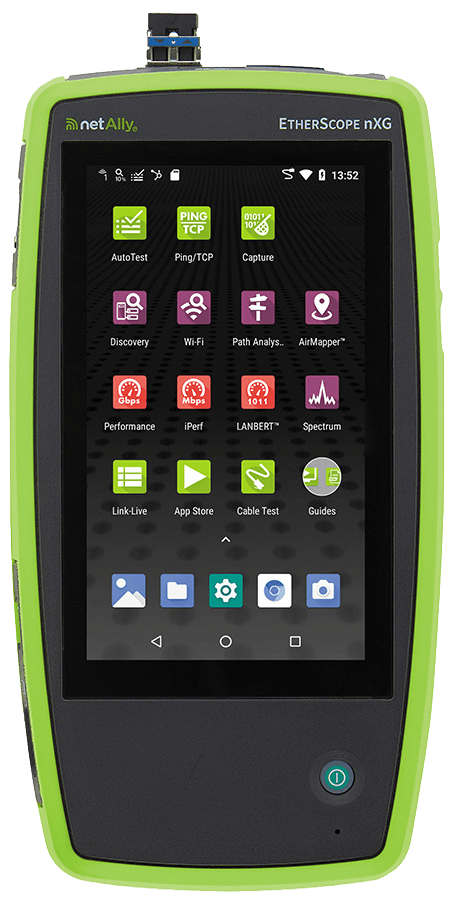

NetAlly EtherScope nXG Portable Network Expert Kit

Ethernet Network Tester & Wi-Fi 6 & 7 Diagnostics Tool

The NetAlly EtherScope nXG Portable Network Expert Kit is a handheld network analyzer that supports 10/100 Mbps through 10 Gbps Ethernet, Multi‑Gig (2.5/5G) validation, and tri‑band Wi‑Fi analysis across 2.4 GHz, 5 GHz, and 6 GHz. It provides automated wired and Wi‑Fi AutoTests, PoE testing up to 90 W, LANBERT™ media qualification, and performance testing with throughput, loss, latency, and jitter measurements. The platform integrates site surveys, spectrum analysis (with optional NXT‑2000), topology mapping, packet capture, and cloud‑based reporting and collaboration via Link‑Live™ for deployment, troubleshooting, and documentation tasks.

Product Info Related Products

Network Technologies Tested	Wired Ethernet, Multi‑Gig (2.5/5G), 10G, Wi‑Fi
Ethernet Speed Support	10/100 Mbps, 1/2.5/5/10 Gbps copper; 1G/10G fiber (SFP/SFP+)
Wi‑Fi Support	2.4 GHz, 5 GHz, 6 GHz (tri‑band, region dependent)
Maximum Throughput Testing	Up to 10 Gbps line‑rate
PoE Testing	IEEE 802.3af/at/bt, up to 90 W
Automated Testing	Wired & Wi‑Fi AutoTest with pass/fail thresholds
Site Survey Capability	AirMapper™ Wi‑Fi & Bluetooth/BLE surveys
Spectrum Analysis	2.4/5/6 GHz with optional NXT‑2000 analyzer
Topology Mapping	Automatic wired & Wi‑Fi topology via Link‑Live™
Link‑Live™ Integration	Cloud reporting, collaboration, remote control

Real‑time Wi‑Fi 7 visibility, including MLO, wider channels, WPA3, and 6 GHz
LANBERT™ media qualification with extended testing for intermittent issues
Portable analyzer for Wi‑Fi surveying, troubleshooting, and spectrum analysis across 2.4/5/6 GHz
Validates multi‑gig and 10G Ethernet performance for servers, devices, and Wi‑Fi 7 deployments
Automatic wired and Wi‑Fi topology mapping via Link‑Live™
Enables remote troubleshooting and collaboration with on‑site technicians
