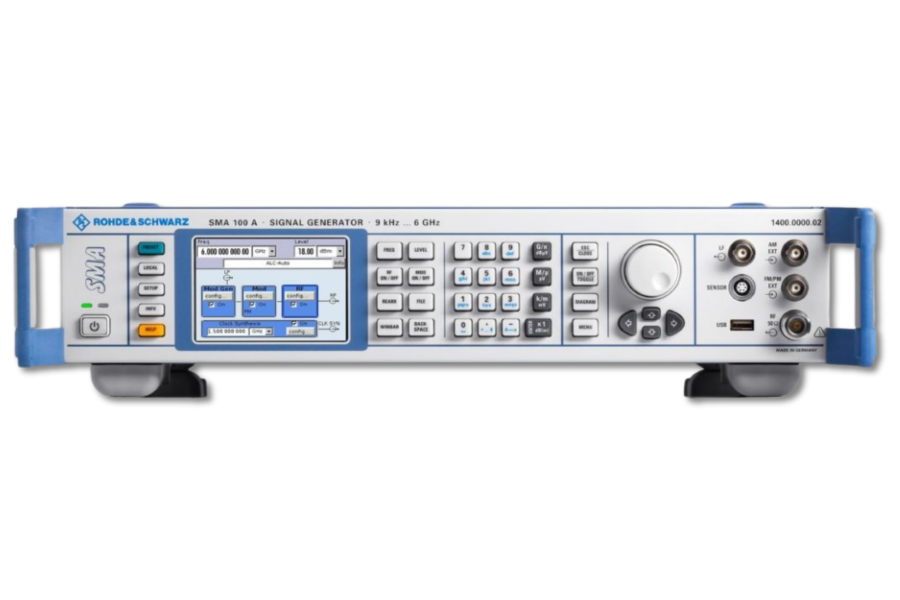

Rohde & Schwarz SMA100A Signal Generator

9 kHz - 6 GHz

The Rohde & Schwarz SMA100A Signal Generator offers a frequency range of 9 kHz - 3/6 GHz. This device offers a Ø noise of <-131dBc/Hz and an output power of up to 18dBm, with an overrange up to 28dBm. Additionally, this device is used for a variety of applications including defense, aerospace, and production.

Product Info Product Options Related Products

Frequency
Frequency range	9 kHz - 3 GHz/6 GHz
Setting time	< 1.2 ms
Level
Range	–145 dBm - +18 dBm (up to +28 dBm overrange)
Setting time	< 1.0 ms
Setting time in list mode/fast hopping mode	< 450 μs
Spectral Purity (at f = 1 GHz)
Nonharmonics (carrier offset > 10 kHz, f ≤ 1500 MHz)	< –80 dBc < –92 dBc with the R&S®SMA-B22 option
SSB phase noise (20 kHz carrier offset, 1 Hz measurement bandwidth)	< –131 dBc (–134 dBc typ.) < –137 dBc ( –141 dBc typ.) with the R&S®SMA-B22 option
Wideband noise (carrier offset > 10 MHz, 1 Hz measurement bandwidth, 750 MHz < f ≤ 1500 MHz)	< –153 dBc (–160 dBc, meas.)
Supported Modulation Modes
AM	Standard
FM/φM	Optional (with the R&S®SMA-B20/R&S®SMA-B22 options)
Pulse	Standard
Chirped pulses	Optional (with the R&S®SMA-B20/R&S®SMA-B22 options)
VOR/ILS	Optional (with the R&S®SMA-K25 option)
DME	Optional (with the R&S®SMA-K26 option)
Clock Synthesis
Frequency range	100 kHz - 1.5 GHz (with the R&S®SMA-B29 option)
IEEE 488.2, LAN (10/100BaseT), 2 × USB, 1 × USB slave

Very low SSB phase noise of typ. -139.5 dBc (at 1 GHz, 20 kHz offset, 1 Hz measurement bandwidth) with option
Frequency range of 9 kHz to 3 GHz (R&S®SMA‑B103 or R&S®SMA‑B103L) or 6 GHz (R&S®SMA-B106 or R&S®SMA‑B106L)
Frequency, level and LF sweeps
Phase-continuous frequency setting
AM, broadband FM/φM (R&S®SMA-B20 or R&S®SMA-B22), pulse modulation
Built-in LF generator up to 1 MHz, optional multifunction generator (R&S®SMA-K24) up to 10 MHz
Optional low-jitter clock synthesizer up to 1.5 GHz (R&S®SMA-B29)
Power measurement using R&S®NRP-Zxx power sensors
Optional power analysis (R&S®SMA-K28) using R&S®NRP-Zxx power sensors for scalar network analysis or automatic pulse parameter measurement

Production and ATE
Aerospace
Defense
Production

SKU: ROHD-SMA100A-B106L

SMA-B103	9kHz - 3GHz, with electronic attenuator
SMA-B106	9kHz - 6GHz, with electronic attenuator
SMA100A-PKG01	SMA-B103	9kHz - 3GHz, with electronic attenuator
	SMA-B20	FM//φM modulator
