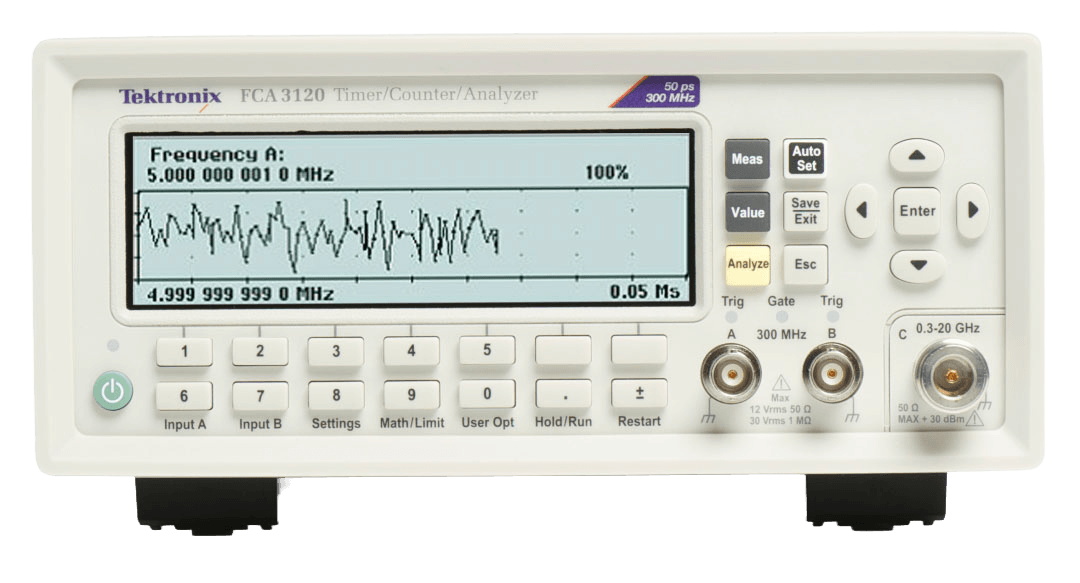

Tektronix FCA3120

RF Frequency Counter

The Tektronix FCA3120 Timer Counter Analyzers measure frequency, time interval, phase, and voltage over bandwidths up to 20 GHz depending on model. They provide single‑shot time resolution of 100 ps for FCA3000 models and 50 ps for FCA3100 models with frequency resolution of 12 digits per second. The instruments support up to three input channels and sustain measurement rates up to 250 k readings per second to internal memory.

Product Info Related Products

Maximum input frequency	20 GHz
Single‑shot time resolution	50 ps
Frequency resolution	12 digit/s
Phase resolution	0.001°
Voltage resolution	1 mV
Input channels	Up to 3
Measurement rate to internal memory	250k measurement/s
Internal memory capacity	3.75 M readings
Block transfer rate over USB/GPIB	15k measurement/s
Individually triggered measurement rate	650 measurement/s
Power requirements	90 - 265 V RMS; 45 - 440 Hz; <40 W
Operating and storage temperature	0 °C - +50 °C; −40 °C - +71 °C
Physical dimensions	90 × 210 × 395 mm
Net weight	2.7 kg

Measures frequency, time interval, phase, voltage, and pulse parameters across high‑frequency signals
Supports up to three input channels for simultaneous multi‑signal analysis
Provides zero dead‑time measurement and continuous time stamping for critical timing analysis
Enables statistical analysis including trend plots, histograms, and Allan deviation
Streams measurement data to internal memory or over USB and GPIB interfaces
Supports programmable pulse output and external arming for automated test setups

SKU: TEKT-FCA3120
