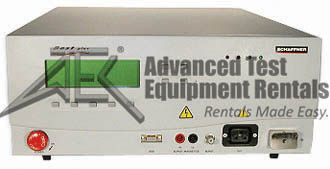

Teseq Best Plus EMC Conducted Immunity Test System

Discontinued
Teseq C5 software available for EMC testing.

Product Info

Burst per IEC61000-4-4 / EN61000-4-4


  • Pulse Form: 5/50 ns
  • Pulse Amplitude: 200 - 2200 V
  • Pulse Frequency: 1 - 100 kHz
  • Polarity: pos/neg
  • Pulse/Burst: 1 - 75
  • Burst Period: 100 ms - 99 s
  • Coupling: L<>Ref. GND
    N<>Ref. GND
    PE<>Ref. GND
    L+N<>Ref. GND
    Coupling Clamp

Surge per IEC61000-4-5 / EN61000-4-5



  • Pulse Form: 1.2/50 µs open-circuit, 8/20 µs short-circuit
  • Pulse Amplitude: 200 - 2200 V
  • Impedance: 2/12 ohms
  • Polarity: pos/neg
  • Pulse Repetition: 10 s min, 600 s max
  • Coupling:
    L<>N
    L<>PE / N<>PE
    L+N<>PE

ESD per IEC61000-4-2 / EN61000-4-2



  • Discharge Voltage: 8.8 kV air, 6.6 kV contact
  • Pulse Rise-Time: 0.7 - 1 ns
  • Network: 150 pF/330 ohms
  • Polarity: pos/neg
  • Pulse Repetition: Single pulse repetitive up to 25 Hz, pre-settable counter, remote triggering

Power Quality (Dips & Interrupts) per IEC61000-4-11 / EN61000-4-11



  • Mains Drop-Out: 10 ms - 5 s
  • Voltage Dip: 70% Vn for 10 ms - 5 s
  • Phase Angle: 0 - 359°
  • Power Up Current: 500 Amps

EMC Compliance Tests:


Generic Standards:
EN 50082-1 Generic immunity standard - part 1: residential, commercial and light industry
EN 50082-2 Generic immunity standard - part 2: industrial environment
Product Standard:
EN 50090 Home and building electronic systems (HBES)
EN 50130 Alarm systems including fire, intruder and personal alarms
EN 55011 Industrial scientific and medical (ISM) equipment (CISPR 11)
EN 55103 Professional audio, video, audio-visual and entertainment lighting control apparatus
EN 55104 Household appliances, tools and similar apparatus
EN 60601 Medical electrical equipment
EN 60945 Maritime navigation and radio communication equipment and systems
EN 60947 Low voltage switchgear and control gear
EN 61131 Programmable controllers
EN 61800 Adjustable speed electrical power drive systems


SKU: SCHA-BEST PLUS EMC
