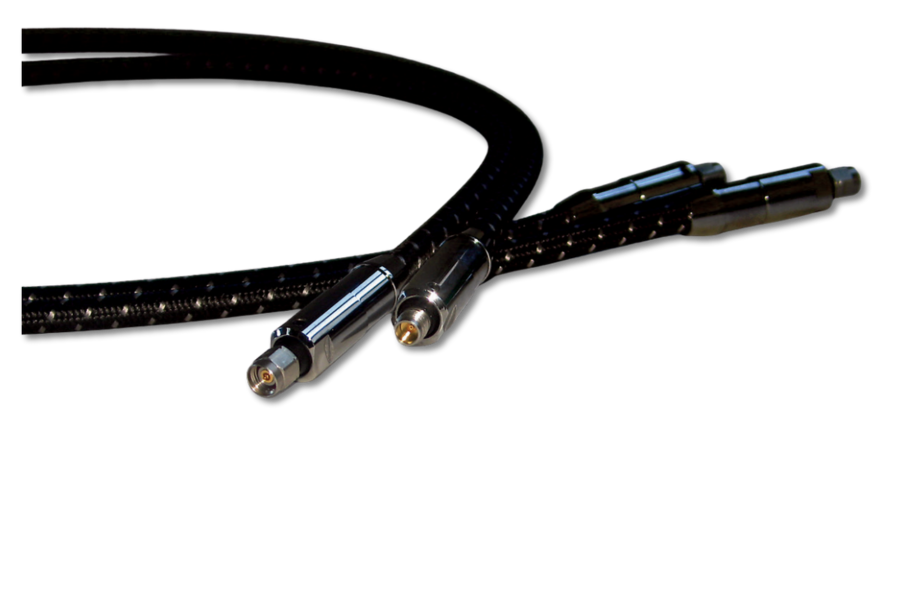

Times Microwave Systems SLSV40-KMKF-01.00M Silverline VNA Cable

40 GHz

The Times Microwave Systems SLSV40-KMKF-01.00M Silverline VNA Cable has a frequency range from DC - 40GHz. This device offers a velocity propogation of 78% and has a shielding effectiveness of >100dB. It can be used for a variety of applications such as VNA measurements, laboratory use, and research and development.

Product Info Related Products

Mechanical Specifications
Armored diameter: armor/strain relief	0.430in (10.80mm)
Min bend radius, armored (max flex life)	2.5in (63.50mm)
Crushing (armored version)	1050lbs/lin.in
Mating life cycle	500
Electrical Specifications
Impedance	50Ω
Velocity of propogation	78%
Shielding effectiveness	>100dB
Capacitance	26pf/ft (85pf/m)
VSWR (maximum)	1.45:1
Phase stability (typical)	±2°
Amplitude stability (typical)	±0.04dB
Attenuation, max@77°F (25°C)	82dB/100ft
Attenuation, max@77°F (25°C)	269dB/100m
Cable power handling (cable only) @77°F (25°C) sea level, watts (max)	15
