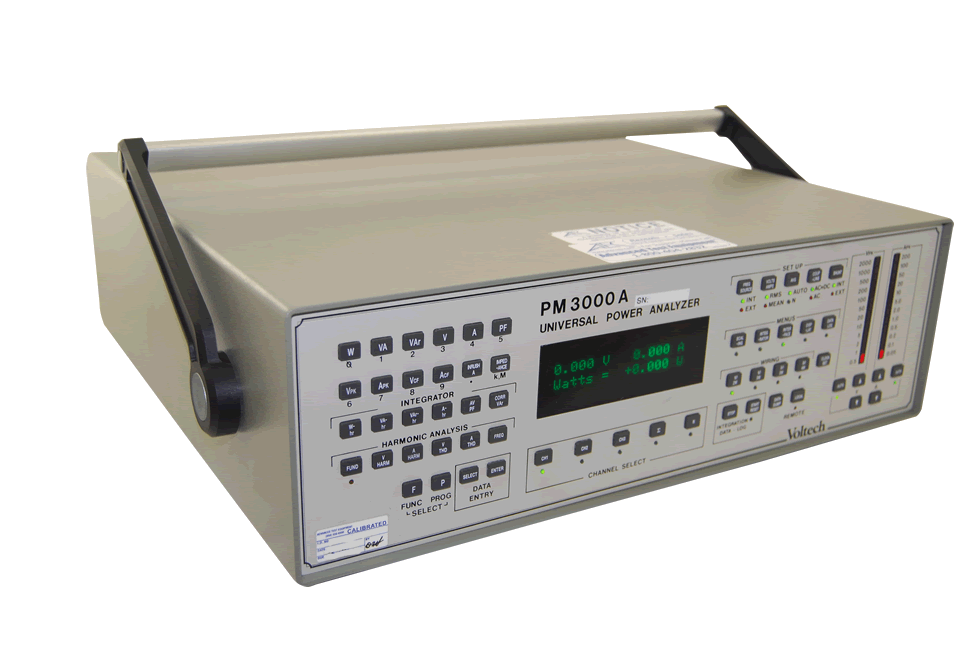

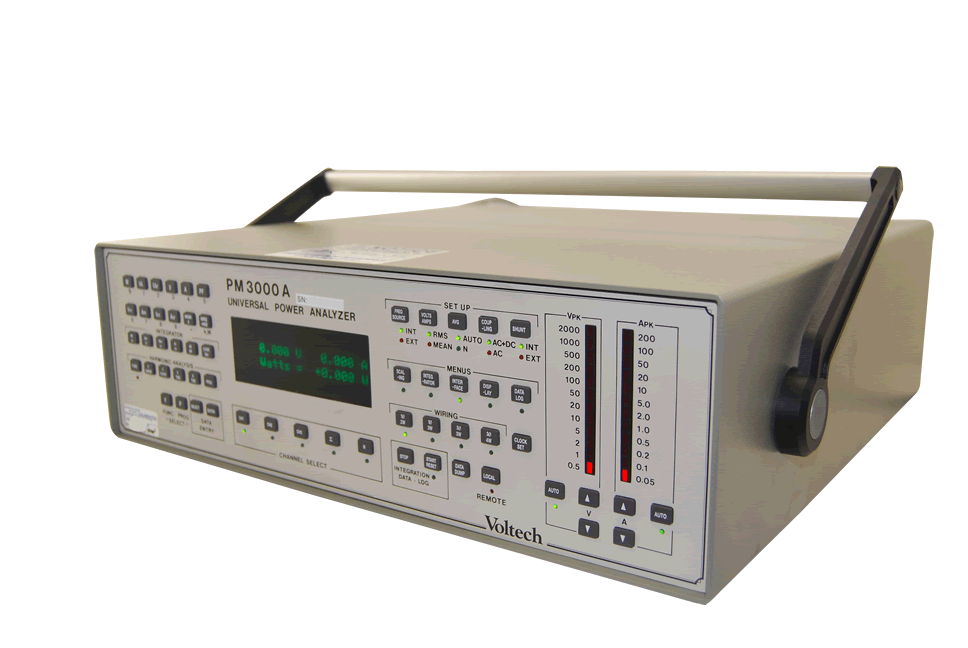

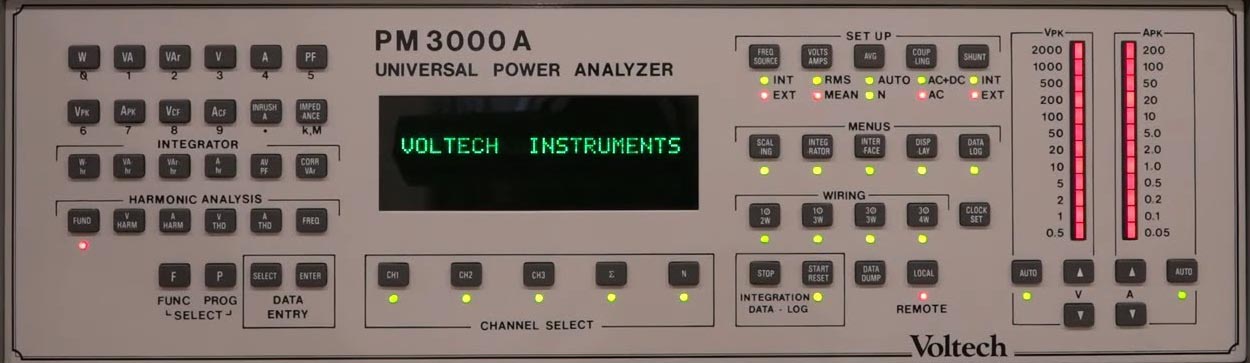

Voltech PM3000A Universal Power Analyzer

Voltech PM3000A Universal Power Analyzer
Enlarge Image
Voltech PM3000A Universal Power Analyzer Voltech PM3000A Universal Power Analyzer Voltech PM3000A Universal Power Analyzer
Voltech PM3000A
Request Quote Print Page
Other1
1 Ch or 3 Ch DC - 500 kHz, 0 - 1400 VRMS and 0 - 30 A (or external shunt input) Universal Power Analyzer

Voltech PM3000A Features
  • 0.05% basic accuracy
  • Universal application: single-phase, three-phase, and DC rectifier measurements
  • Harmonic analysis of voltage current and power on each phase and neutral to the 99th harmonic
  • Accurate with distorted waveforms and poor power factors
  • Built-in integrator for measuring energy maximum demand or averaged values
  • Exceptionally wide input ranges on voltage (0.2 to 2000Vpk) and current (10mA to 200 Apk)
  • Measures short term events, such as start-up current and burst power
  • Accepts inputs directly or from external shunts, current transformers and voltage transformers
  • Provides eight programmable outputs for chart recorders or scopes
  • Wide frequency range: -DC to 1MHz
  • Full system capability with IEEE488.2, RS232 and Centronics interfaces as standard
Voltech PM3000A Specs
Basic Measurements:

Real Power; Apparent Power; Reactive Volt-Amperes; Voltage; Current; Power Factor; Peak Voltage; Peak Current; Voltage Crest Factor; Current Crest Factor; Impedance; Peak Inrush Current.

Note: This model is also available in a single phase only (single channel) version. Consult your sales representative for assistance in selecting the correct model for your application.


Specifications:
Voltage (V) Ranges (Auto or Manual) (12 ranges 1-2-5 sequence): 0.5 V to 2000 Vpk (1400 Vrms)
Frequency Range: DC and 0.1 Hz to 500 kHz
Current (A) Ranges (Auto or Manual) (12 ranges 1-2-5 sequences) INT: 0.05A to 200Apk (30A rms)
EXT: 6.25mV to 2.5pK (1.5Vrms)
Power (W) Ranges (Auto or Manual) (144 ranges corresponding to V and A) 25mW to 400kW pk (with scaling to 100,000MW)
Apparent Power (VA) Ranges (Auto or Manual) (144 ranges corresponding to V and A) 25mVA to 400kVA pk (with scaling to 100,000MVA)
Reactive Power (VAR) Ranges (Auto or Manual)(144 ranges corresponding to V and A) 25mVAr to 400kVArpk (with scaling to 100,000MVAr)
Power Factor (PF) Range ±0.000 to ±1.000
Crest Factor Range 1.000 to 19.999
Inrush Current Range 0.1A to 200Apk (with scaling to 20 MA)
Impedance Range 0.0001 Ω to 9.999 MΩ
Frequency Range Internal Source 5Hz to 1MHz
Harmonic Analysis Range DC and Fundamental to 99th harmonic for voltage and current. Maximum harmonic = 1MHz
Integrator Range 0.001 W.hr to 100,000MW.hr
