Anritsu MA2473A Power Sensor 10 MHz - 32 GHz

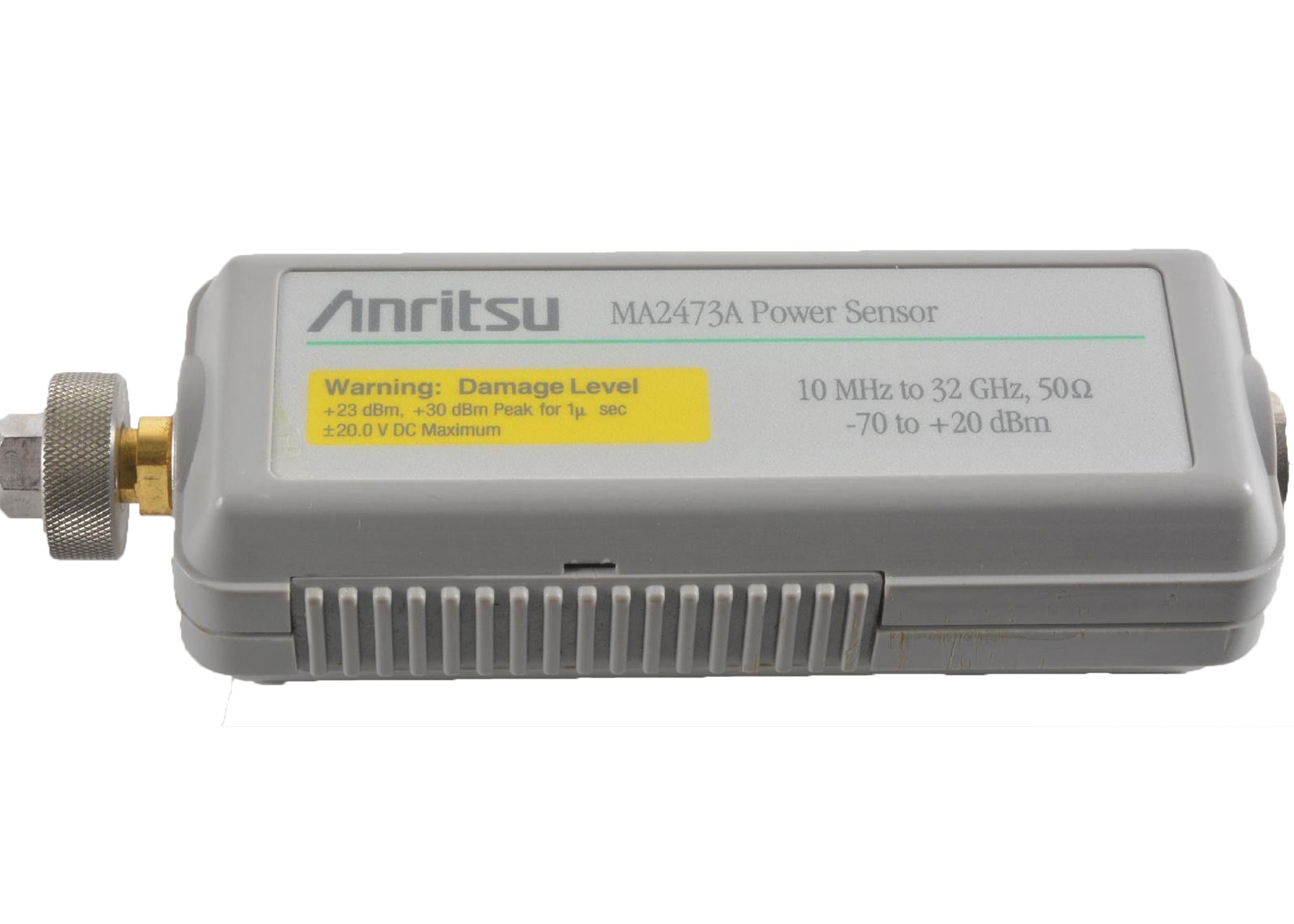

Anritsu MA2473A Power Sensor
Enlarge Image
Request Quote Print Page
Manual Datasheet

Specifications: for ML2430 series

Frequency Range 10 MHz - 32 GHz
Dynamic Range -70 to +20
SWR <1.90; 10 - 50 MHz
<1.17; 50 - 150 MHz
<1.12; 0.15 - 2 GHz
<1.22; 2 - 12.4 GHz
<1.25; 12.4 - 18 GHz
<1.35; 18 - 32 GHz
<1.50; 32 - 40 GHz
<1.63; 40 - 50 GHz
RF Connector Type K (m)
Sensor linearity 1.8%, <18 GHz
2.5%, <40 GHz
3.5%, <50 GHz
Rise time-1(ms) <0.004
