Boonton 57006 Peak Power Sensor

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery

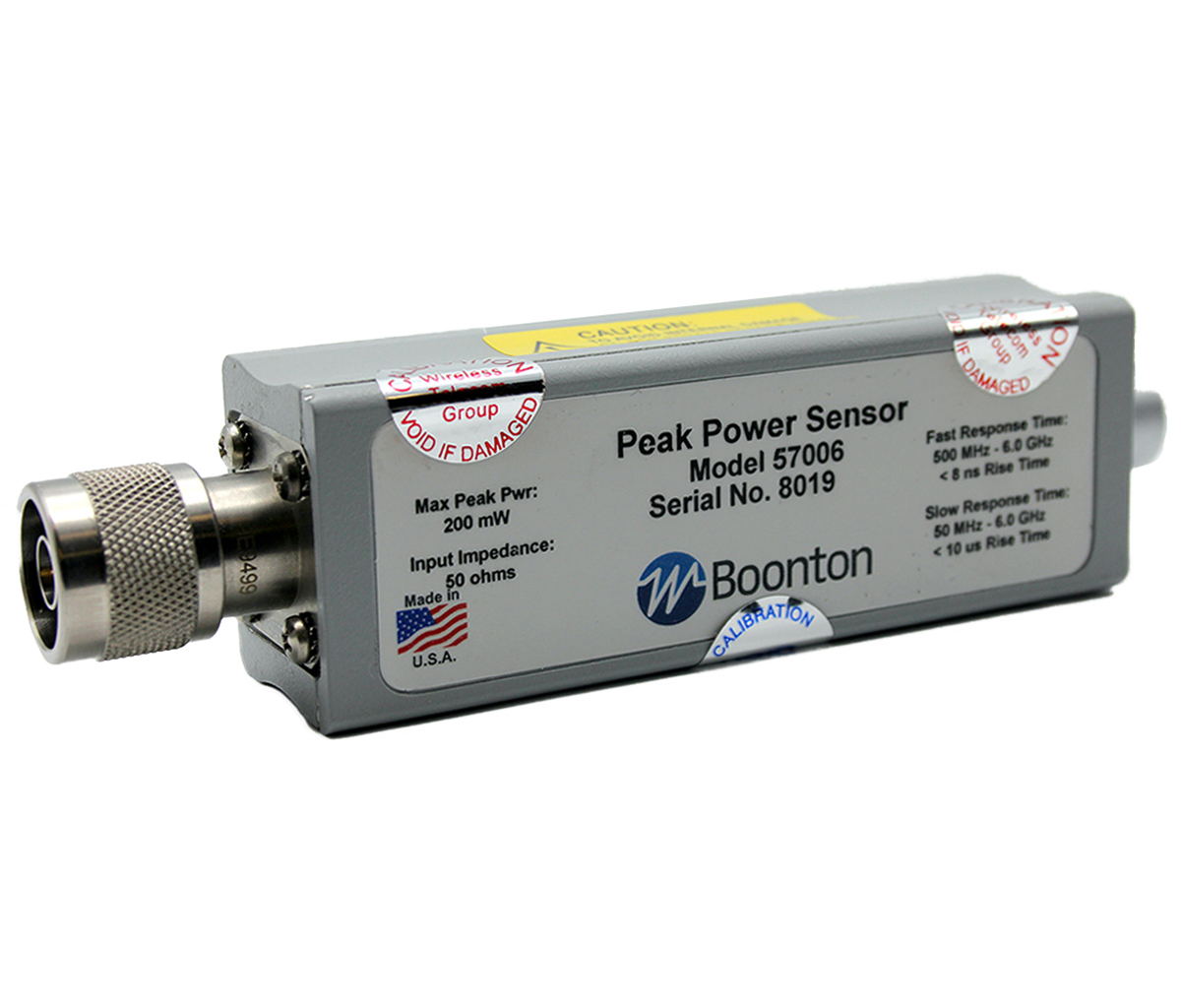

The Boonton 57006 is a peak power sensor for frequencies up to 6 GHz. The 57006 RF real power sensor provides a dynamic input power range of -50 dBm to +20 dBm in Peak mode and -60 dBm to +20 dBm in Continuous Wave (CW) mode. 57006 units offer a rise time of less than 7 ns and a bandwidth of 70MHz. Due to Boonton's high-speed technology, the 57006 power sensor is ideal for statistical measurements with high dynamic signal content.
