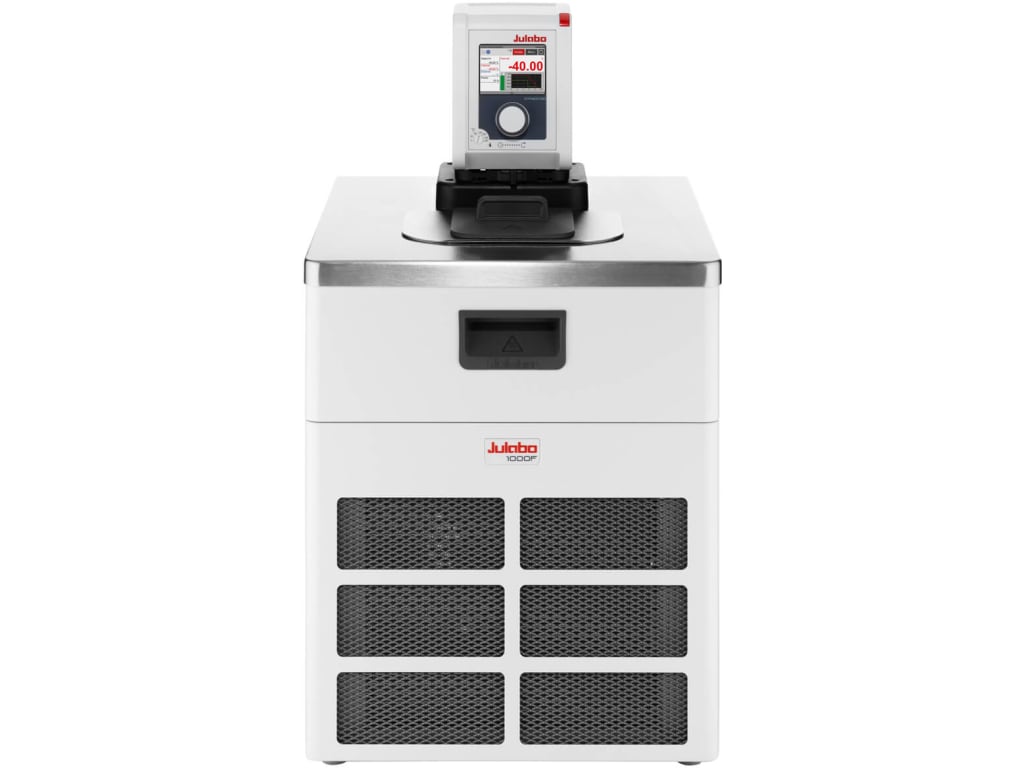

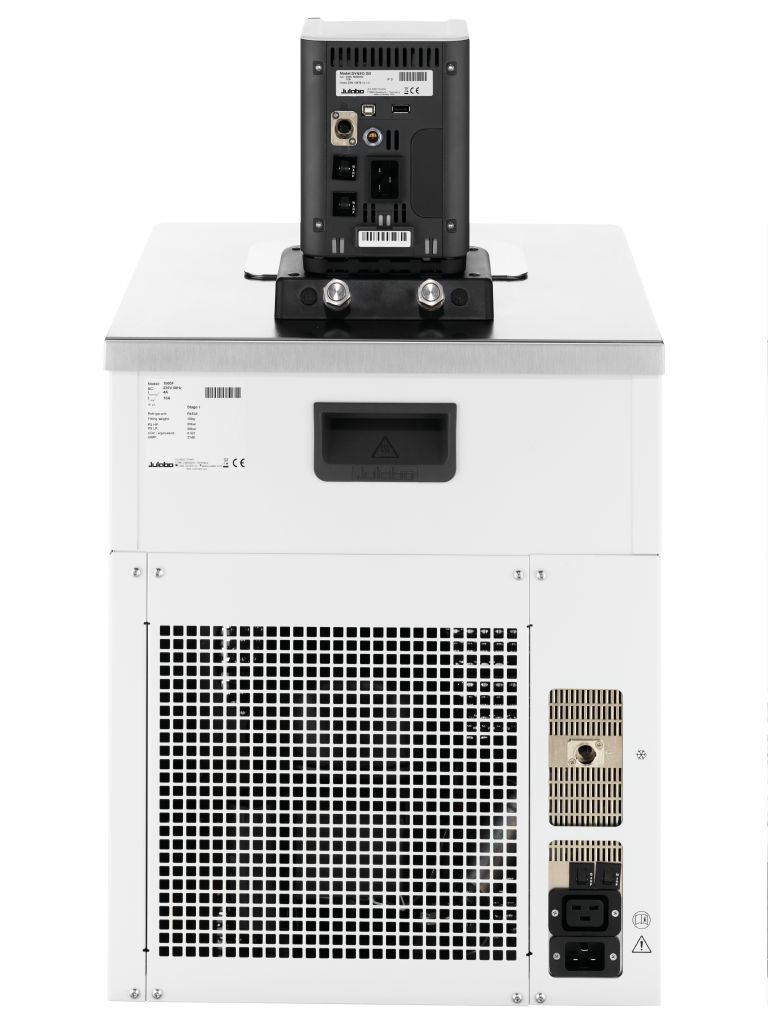

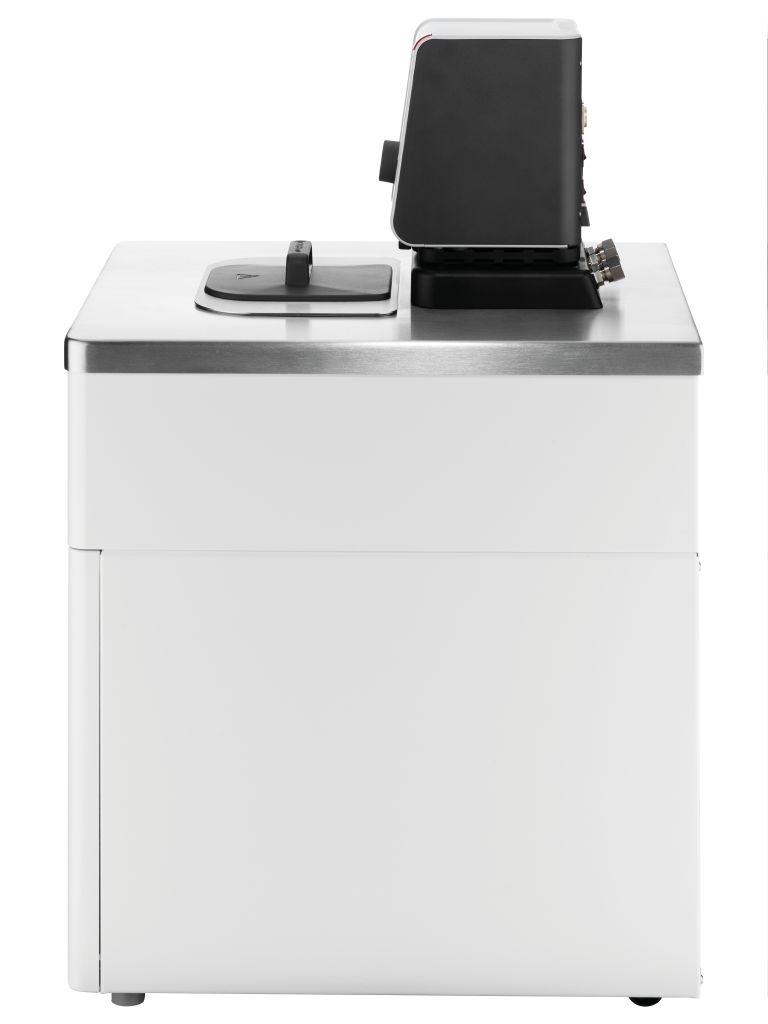

The Julabo DYNEO DD-1000F is a powerful refrigerated and heating circulator with a closed bath tank that has 7.5 liters of volume to guarantee proper use. Not only containing a coil for counter-cooling, the DYNEO DD-1000F circulator can also be used for internal and external applications. Many of these different uses are made easier with improved temperature control technology that's controlled through a multilingual 3.5-inch color display.

A vast temperature range from -50°C to 200°C further allows users to perform a variety of product tests with the Julabo DYNEO DD-1000F bath. The refrigerated and heating circulator even sports an exceptional flow rate of 27 L/min and pressure of 0.7 bar and an integrated drain tap to spend less time starting and cleaning.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Suitable for internal and external applications
Optimized cooling coil design saves space in the bath tank
Powerful and infinitely adjustable pressure pump
Flow rate 22 l/min, pressure 0.6 bar
Easy switching between internal and external circulation
Large color TFT display, multilingual interface
Central rotary knob (controller) simplifies operation
Integrated programmer for 8 x 60 program steps
Integrated external Pt100 connection
Integrated drain makes emptying liquid easy and safe

Specifications

General Specifications
Temperature Range (°C)	-50 ... +200
Heating Capacity	1 kW
Pump Pressure	1.5 ... 10.2 psi
Pump Flow Rate	8 ... 27 L/min
Filling Volume	5 ... 7.5 L
Temperature Stability	±0.01 °C
Pump Connections	M16x1 male

Cooling Capacity
°C	20	10	0	-10	-20	-30	-40
kW	1	1	0.96	0.73	0.51	0.25	0.11
