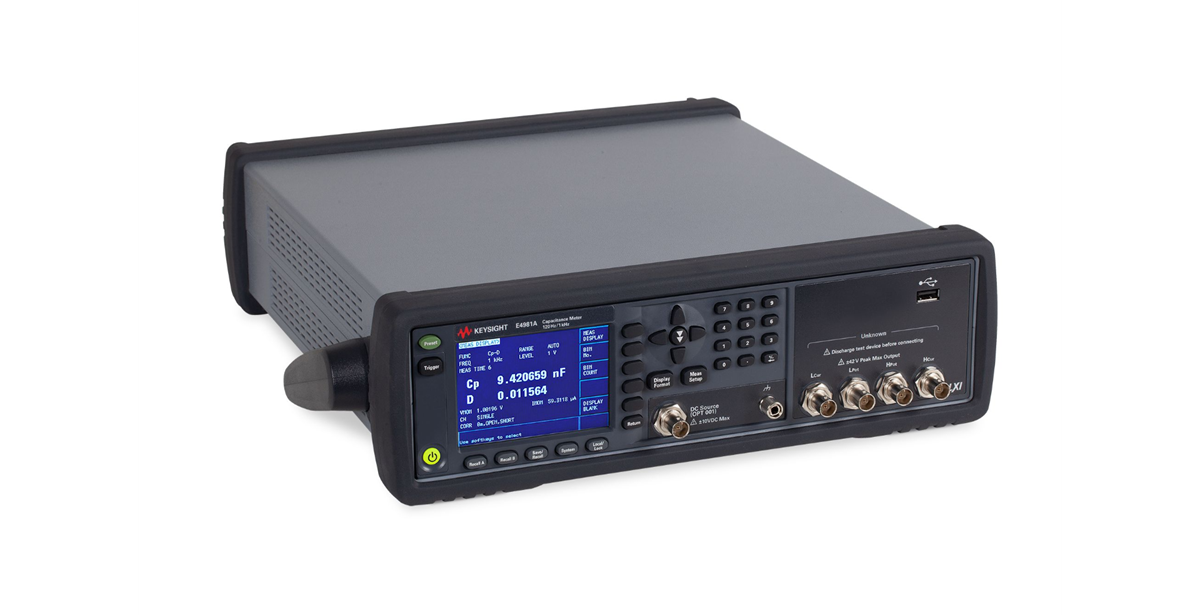

Keysight E4981A Capacitance Meter
The Keysight E4981A Capacitance Meter is designed for precise and swift measurements, crucial for ceramic capacitor production tests. It supports multiple test frequencies—120 Hz, 1 kHz, and 1 MHz—allowing versatile application. With a rapid measurement capability as quick as 2.0 ms at 1 MHz and high accuracy rates (±0.07% for capacitance and ±0.0005 for dissipation factor), it ensures reliable testing outcomes. The Keysight E4981A meter also features multiple connectivity options, including GPIB, LAN, and USB, facilitating easy integration into various test systems.
| Basic Accuracy | 0.05%, D:0.0005 (specification) 0.042%, D:0.0003 (typical) |
|
| Measurement | 4TP | |
| Maximum Frequency | 1 MHz | |
| Measurement Time | 2.3 ms (1 MHz), 3.0 ms (1 kHz), 11.0 ms (120 Hz) | |
| Level | Range | 0.1 V to 1 V |
| Resolution | 0.01 V | |
| Accuracy | ±5% | |
| Source delay time | Range: 0 - 1s | |
| Resolution: 0.1ms | ||
| Measurement cable lengths | 0 m, 1 m, 2 m | |
| Output mode | Continuous or synchronous | |
- 9 Bin Sorting
- 256 Multi-channel correction
- Compatible SCPI command and Handler/Scanner interfaces with the 4268A and 4288A
- Test signal level compensation for high value ceramic capacitor tests
- Versatile PC connectivity (LAN, USB and GPIB)
SKU: KEYS-E4981A
