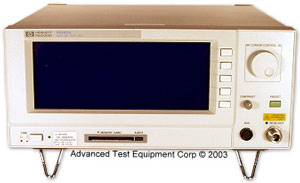

Keysight E6392A GSM Mobile Station Test Set

Agilent E6392A GSM Mobile Station Test Set
Enlarge Image
Keysight E6392A
Request Quote Print Page
Datasheet Brochure
GSM Mobile Station Test Set

Keysight E6392A Features
  • Complete tool sets for measuring power consumption, RF spectrum, and more
  • Flexibility for performing MS service tasks, from simple auto test for go/no-go inspection to manual test for detail troubleshooting
  • Accurate, reliable troubleshooting
  • Adjustment capabilities after repair
  • Load and store test plans quickly on PCMCIA cards
Keysight E6392A Specs
RF Signal Generator
  • Frequency Range: 935MHz to 1880 MHz
  • Frequency Resolution: 200 kHz
  • Modulation: 0.3 GMSK
  • Output Power: -110 dBm to -50 dBm

RF Analyzer
  • Frequency Range: 890 MHz to 1785 MHz
  • Frequency Resolution: 1 Hz ( 100 kHz in hop mode )

Transmitter Carrier Peak Power Measurement
  • Range: -20 dBm to +39 dBm
  • Resolution: 0.2 dB

PowerRamp Measurement
  • Range: -11 dBm to +39 dBm
  • Resolution: 0.2 dB

Phase & Frequency Error Measurement
  • Input Level Range: -11 dBm to +39 dBm
  • Input Phase Error Range: 0 to 20°
  • Frequency Error Measurement Range: ±9 kHz

DC Power Supply
  • Range: 3 Vdc to 9 Vdc
  • Resolution: 0.1 V
  • Maximum Current: 1 A, 2 A peak

DC Current Measurement Range: 3 mA to 1000 mA

Memory Card: 512 KB SRAM PCMCIA


RF Input/Output
  • Maximum Safe Reverse Power: +41 dBm (peak)
  • Impedance: 50 ohm nominal
  • SWR: ≤1.5:1
  • Connector: Type N, female
