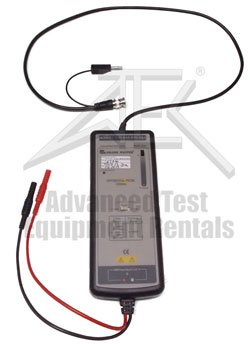

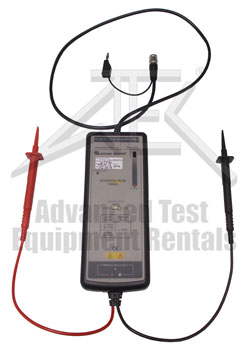

Probe Master 4234
Request Quote Print Page
Accessory Kit
The Probe Master 4234 Power Management Differential Probe meets EN61010 Category III Requirements. With wide choice of attenuation ratio, the 4234 is capable of making full range (from millivolts to ±1400V) measurements of floating signals in power electronic circuits.

Probe Master 4234 Features
  • Bandwidth up to 100 MHz
  • Up to +/-1400V(DC+Peak AC) Differential and Common Mode
  • Safety Certified Applications
  • Switching Power Supply Design
  • Motor Drive Design
  • Electronic Ballast Design
  • CRT Display Design
Probe Master 4234 Specs
Bandwidth: DC-100MHz (-3dB)
Attenuation: 1/100 and 1/1000 (switchable)
Rise Time: 3.5 ns
Accuracy: +/- 2%
Input Impedance: 4 M Ohm // 7pF each side to ground
