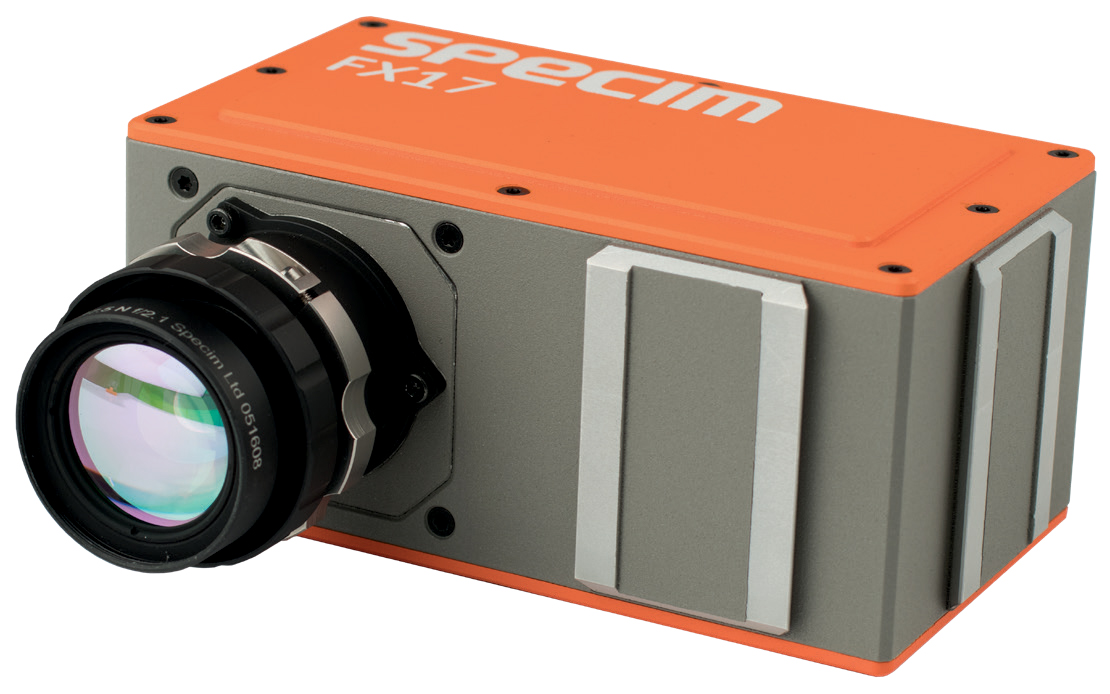

Specim FX17
Hyperspectral Camera | Spectral Range of 900 – 1700 nm
The Specim FX17 is a line-scan hyperspectral camera that captures near-infrared data from 900 to 1700 nm with 224 spectral bands and 640 spatial pixels for material identification and analysis. It provides spectral resolution of 8 nm, signal-to-noise ratio of 1000:1, and frame rates up to 670 FPS for high-speed inspection applications. The system supports GigE Vision or CameraLink interfaces with built-in image correction, spectral calibration, and selectable regions of interest. It operates on 12 V DC power with up to 24 W consumption in a compact IP52-rated housing for industrial integration.
| Spectral Range | 900 – 1700 nm |
| Spectral Resolution | 8 nm (FWHM) |
| Spectral Bands | 224 |
| Spectral Sampling | 3.5 nm/pixel |
| Spatial Resolution | 640 pixels |
| Frame Rate | Up to 670 FPS (CameraLink), 527 FPS (GigE) |
| Signal-to-Noise Ratio | 1000:1 |
| Bit Depth | 12-bit |
| Sensor Type | InGaAs |
| Pixel Size | 18.7 µm |
| Field of View Options | 12°, 22°, 38°, 53°, 66°, 75°, 90°, macro |
| Interfaces | GigE Vision, CameraLink |
| Control Protocols | GenICam, ASCII |
| Power Input | 12 V DC |
| Power Consumption | Max 24 W |
| Ingress Protection | IP52 |
| Operating Temperature | +5°C ... +40°C |
| Storage Temperature | –20°C ... +50°C |
- Free wavelength selection from 224 bands within the camera coverage
- High sensitivity and detection accuracy
- High frame rate for fast-speed imaging
- Flexible and easy installation
- Unified wavelength calibration between individual cameras guarantees that the data received from different units is comparable
- Communicates with commercial analysis softwares through standard interfaces
- Recycling and waste management
- Textile recycling
- Food quality and safety
- Mining and mineral exploration
- Pharmaceutics and medical
- Surface and coating inspection
- Environmental monitoring
- Agriculture and vegetation
- Art and archaelogy
- Moisture measurement
SKU: SPIM-FX17
