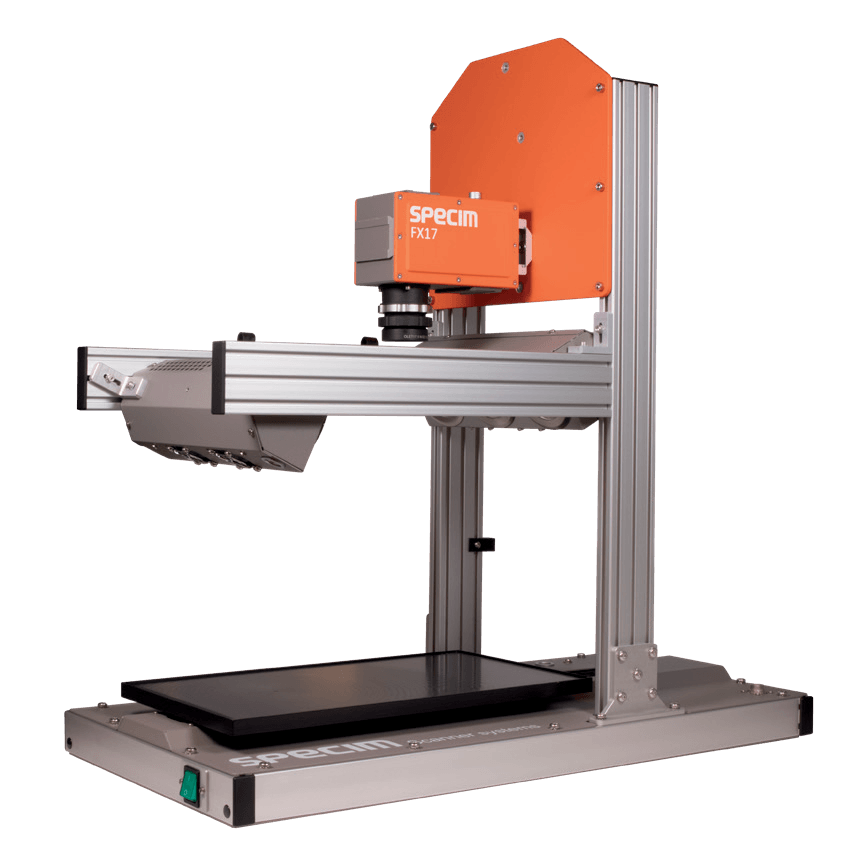

Specim LabScanner 40x20

The Specim LabScanner 40x20 is a desktop hyperspectral imaging platform featuring a 400 × 200 mm sample tray, integrated halogen illumination, and compatibility with Specim FX10, FX17, GX17, and SWIR cameras. It supports scan speeds from 0.1 to 99 mm/s and can be controlled through the connected camera or via USB and RS‑232 interfaces using the LUMO Scanner Software Suite. Optional camera height adjustment and dual illumination configurations provide flexibility for laboratory imaging and material analysis workflows. The system accommodates samples up to 5 kg and operates from a 100–240 VAC power source.

Product Info Related Products

Compatible Cameras	Specim FX10, FX17, GX17, SWIR
Sample Tray Dimensions	400 × 200 mm
Maximum Sample Weight	5 kg
Scanning Speed	0.1 – 99 mm/s
Camera Height Adjustment	Optional, 200 mm
Control Interface	Via spectral camera, USB, or RS-232
Illumination	DECOSTAR 51 ALU 20 W, 12 V halogen
Input Voltage	100 – 240 VAC
Output Voltage	12 VDC
Output Current	26.7 A
Power Consumption	110 W (single illumination), 170 W (dual illumination)
Dimensions (L × W × H)	699 × 335 × 710 mm
Weight	13 kg
