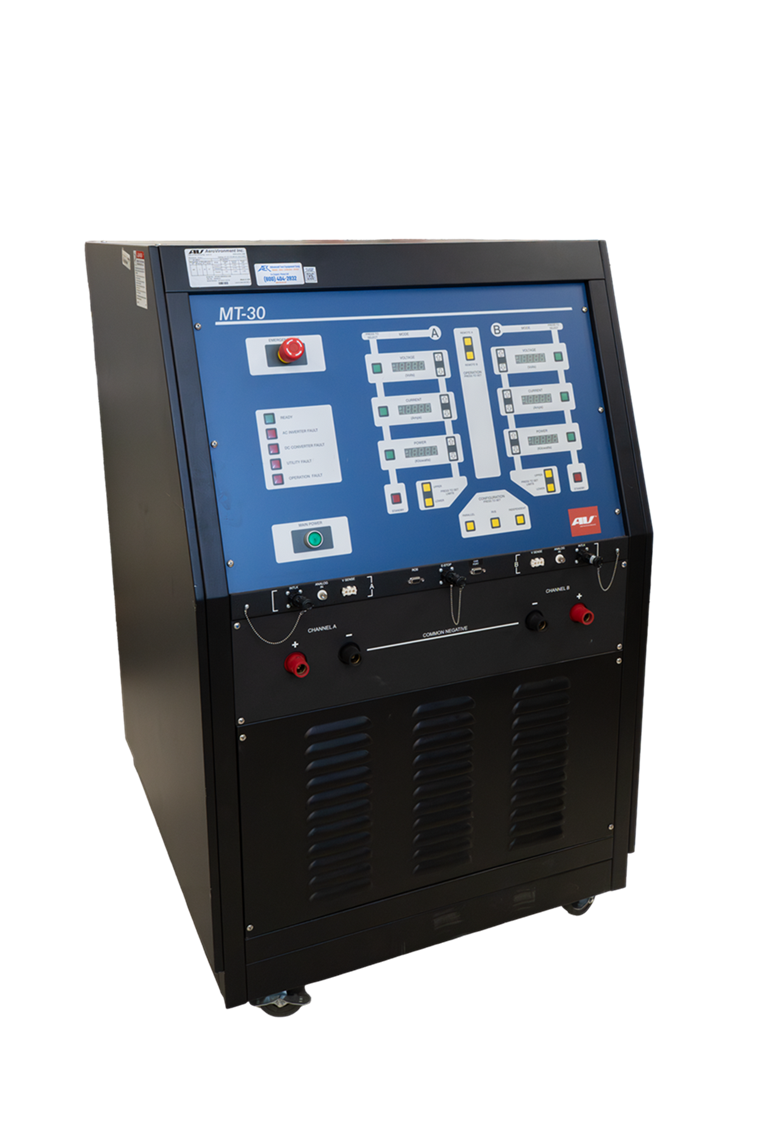

Webasto (AeroVironment) MT-30 Dual Channel Cycling Station for Modules

The Webasto (AeroVironment) MT-30 is ideal for testing smaller applications such as battery modules, fuel stacks, partial modules and smaller components. This system provides an economical solution for a variety of testing needs while occupying a small footprint in the laboratory. All AV power cycling systems are equipped with a real-time clock on the system’s control board that enables measurement of Ah and kWh during cycling.

Product Info Related Products

Input Rating	3 Phase, 240Vrms (380Vrms, 400Vrms, 440Vrms, 480Vrms options)
Current	130Arms at 240Vrms (67Arms with 480V option)
Frequency	60Hz (50Hz optional)
Isolation Transformer	Internal Transformer
Power Factor	> 99%
Harmonic Distortion	< 3% THD; IEEE 519 Compliant
Multiple User Interfaces	Manual; Remote Operation System (ROS); DCOM Driver for LabVIEW; C++ and Visual Basic; CAN

99% Power Factor
Bidirectional Current and Power
Reverse Power Flow Returned to Grid
Dual Independently Controlled Channels
Automatic Shutdown on Loss of Power
Independent Channel Interlock
Load Disconnect Protection
Easy Front Panel Connections
Emergency Stop Button
Set Each Channel Independently in Current, Voltage, Or Power Mode
Fully Programmable Computer Control
Analog Control Signal Capability
Remote Voltage Sensing Capability
Multiple User Interfaces: Manual, AV Remote Operating System (ROS), Windows DCOM Driver for LabView, Visual Basic, C++, Studio.NET, CAN
