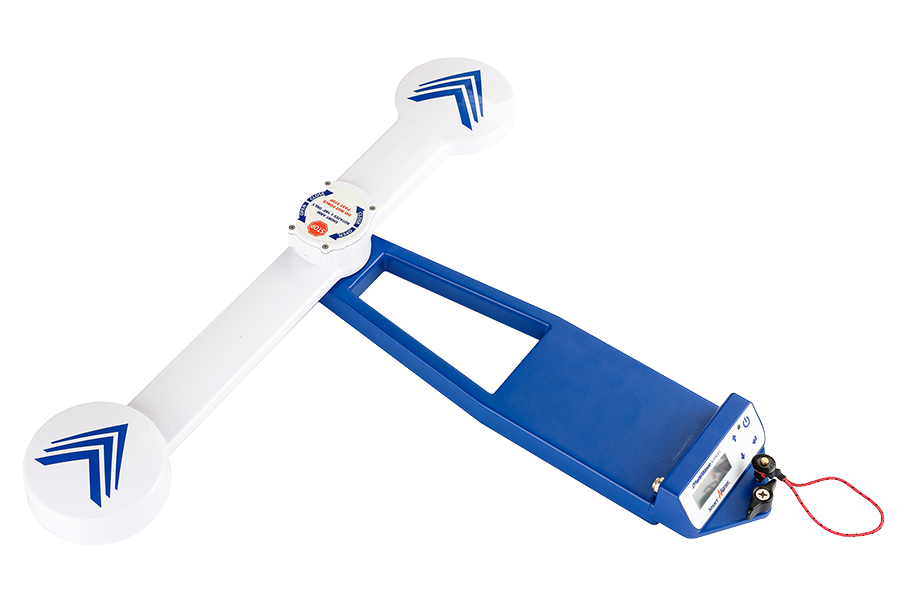

3Z Telecom RF Aligner 3Z RFA-1000 GPS Antenna Alignment Tool Test
support_agent
Tech Support
(800) 404-2832
With Every
Rental
language
Worldwide
Delivery
Larger
SKU:
3ZTE-RFALIGNER
Categories
Antenna Alignment Tools (AAT)
Documents
Accessory Kit
Brochure
print
Print
send
Email
3Z TELECOM RF ALIGNER 3Z RFA-1000 GPS ANTENNA ALIGNMENT TOOL TEST HAS BEEN REPLACED BY THE RFV-2000 MODEL
Upgrade to the 3Z Telecom RFV-2000
The 3Z Telecom RF Aligner GPS Antenna Alignment Tool is the most compact in the industry. It incorporates GPS Technology to calculate precise Azimuth, Tilt, Roll, and AGL measurements for a multitude of directional antenna systems. Our universal antenna mounting system is used for quick antenna attachment and release. The 3Z RF Aligner is user friendly and easy to transport up any tower. Save all your antenna installation measurements for recordkeeping and reporting, easily accessible over USB.
Designed with the tower technician in mind. The 3Z RF Aligner easily attached to virtually any Directional Antenna and comes with an easy to read 4.3” Built-in Color LCD Display. Screenshots save measurements in Seconds.
The 3Z RF Aligner was designed for RF Engineers as well. During site inspections, site troubleshooting, and new site design most RF Engineers carry a compass, GPS, and a range finder. The 3Z RF Aligner replaces all these devices, making field visits a breeze.
Read more on 3Z RFA-1000 Applications
Specifications
Features
Applications
Options
Accessories
Standards
Videos
Features
Install Antennas right the first time. No Go-Backs!
Easy to read 4.3" Built-in Color LCD Display
Measure Azimuth, Tilt, Roll and AGL in one-step
Microwave Dish Alignment Mode
Universal Antenna Clamp fits 99% of Panel Antennas
Record Field Measurements Instantly
No Post Processing Software Required
Easy USB Plug and Play Results Retrieval
Carrier Approved Closeouts
Verify Proper Antenna Installation by Tower Crews
Troubleshoot Site Performance Issues, Improve KPls
Properly Identify Antenna Placement during New Site Design
Replace your compass, range finder, and GPS with one Device
A magnetic compass cannot be used on most rooftops, the 3Z RF Aligner can be used anywhere a GPS signal is available.
Specifications
Applications
Options
Accessories
Standards
Learn About The Communications Industry
Media
Video: Unpacking your 3Z RF Alignment Tool
Video: 3Z RF Alignment Tutorial
RELATED PRODUCTS
3Z Telecom RFV-2000 Vision Antenna Alignment Tool
MultiWave Sensors Smart Aligner System
Sunsight MW15 RF/Microwave Path Alignment Kit
Sunsight AAT-30 Antenna Alignment Tool
Spectracom 2241CR Climb Ready Antenna Alignment 1.8 GHz - 23.5 GHz
Sunsight AAT AntennAlign Alignment Tool
Sunsight AAT-08 Microwave Path Alignment Kit
