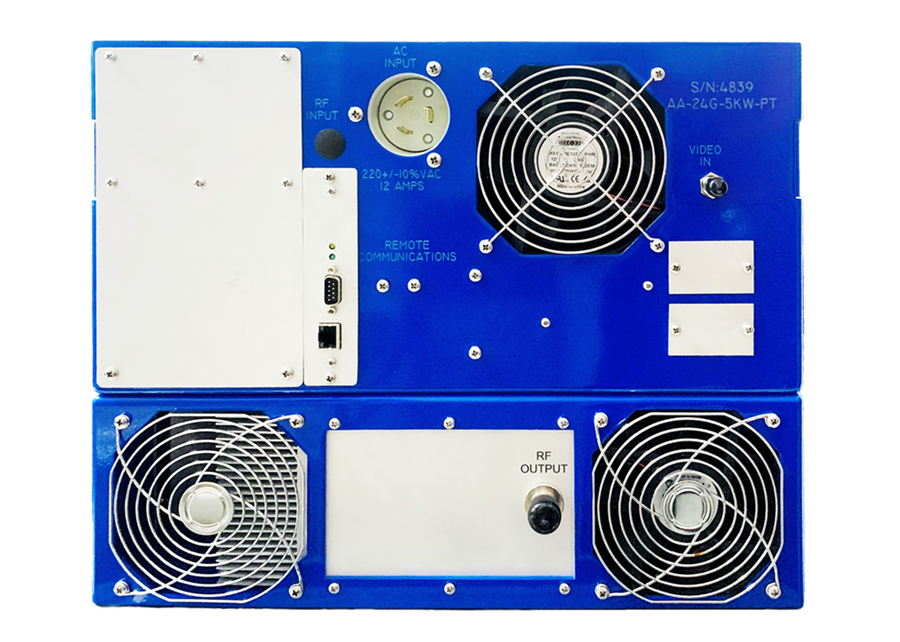

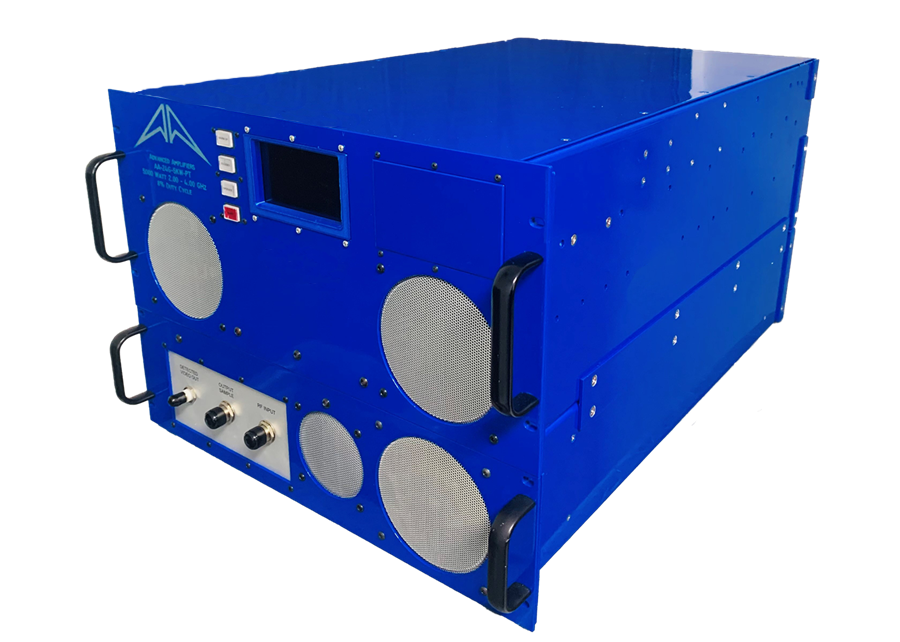

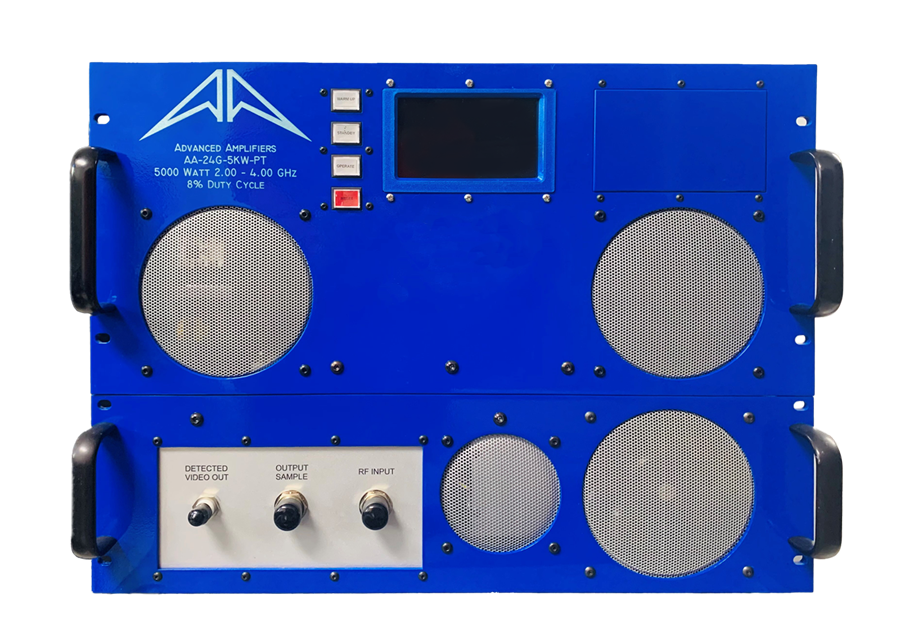

Advanced Amplifier AA-24G-5KW-PT Pulsed Amplifier

Larger

Categories

Documents

Datasheet
Manual

The Advanced Amplifier AA-24G-5KW-PT Pulsed Amplifier is a 5000-watt TWT high-power amplifier, offering instantaneous E and F-band octave bandwidth and small form factor 5U chassis. The system has a frequency range of 2.0 to 4.0 GHz, ideal for linear high-peak pulse applications. With built-in protection circuits and a versatile interface design, the Advanced Amplifier AA-24G-5KW-PT is reliable and easy to operate.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

RF & Modulation Specifications
Parameter	Specification
Operating Frequency Range	2.0 - 4.0 GHz
Power Ripple	± 0.1 dB (maximum)
Output Peak Power	+67 dBm (minimum)
Load VSWR	2:1 (maximum)
Duty Cycle	6% (maximum)
Gain (for rated output)	67 dB (minimum)
Input Power (for Rated Output)	0 dBm (typical)
Spurious Output	0 - 250 Hz > 250 Hz
Gain Stability	0.25 dB/24 hours (typical)
Pulse Width	0.075 µs to 50 µs
Repetition Rate	0 - 500 kHz
Rise and Fall Time	25 ns (maximum)
Input Power Protection	+10 dBm Max
Load VSWR Protection	4:1: Max
Sample Port	-50 dB

Environmental Characteristics
Parameter	Specification
Operating Ambient Temperature	0.1 to +50°C
Storage Temperature	-40 to +85°C
Relative Humidity	0 - 100% non-condensing
Altitude	0 to 10,000 feet above sea level
