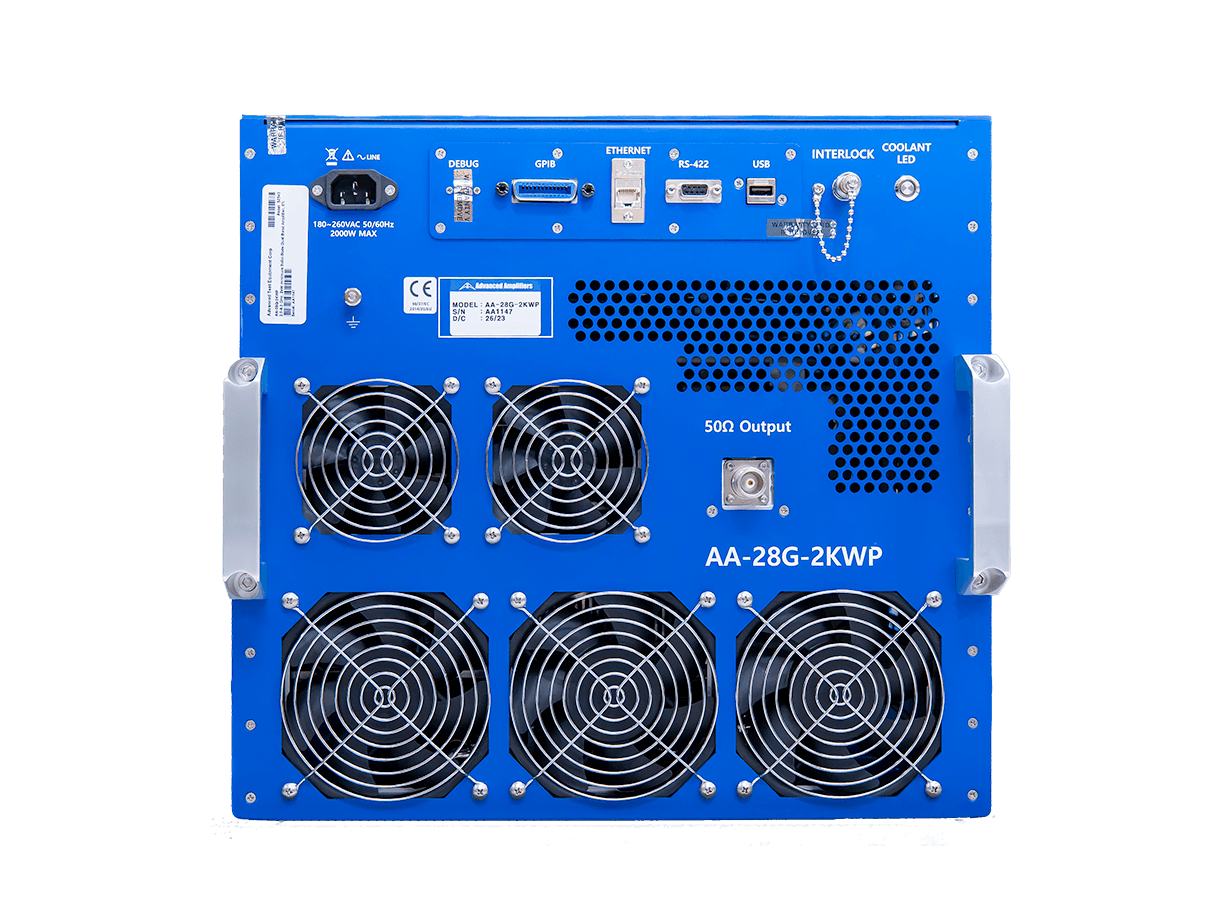

Advanced Amplifiers AA-28G-2KWP High Pulse Power Amplifier

2 - 8 GHz, 2 kW

The Advanced Amplifiers AA-28G-2KWP High Pulse Power Amplifier has a frequency range of 2 - 8GHz and a typical pulse power output of 2kW. This device has a pulse width of up to 100μS and a maximum duty cycle of 6%. Additionally, this device is used for EMI/RFI, lab, and HIRF/Pulse applications.

Product Info Related Products

Operating frequency range	Band A: 2.0 - 4.0GHz
Operating frequency range	Band B: 4.0 - 8.0GHz
Power output @ pulse	2.0kW (typ.)
Input pulse characteristics	Width: <100μS
	Duty: 6% (max)
	PRF: <100kHz
Power gain	63dB (min)
Power gain flatness	5.0dB p-p (max)
Gain adjustment range	20dB (min)
Input return loss	-10dB (max)
Output power on/off ratio	-80dB (min)
Harmonics	<-20dBc (max)
Spurious	-60dBc (max)
Operating voltage	180 - 260VAC, single phase
Power consumption	1000W (max)
Input power protection	+10dBm (max)
Load VSWR protection	4 : 1 (max)
