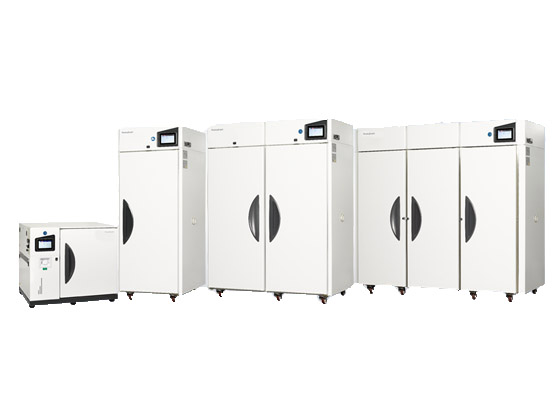

PharmaEvent 280 |
PharmaEvent 600 |
PharmaEvent 1300 |
PharmaEvent 2000 |
| Workspace volume |
10 cu. ft. (280 l) |
21 cu. ft. (600 l) |
46 cu. ft. (1300 l) |
71 cu. ft. (2000 l) |
| Water supply |
3.4 gal (13 l) |
4.9 gal (19 l) |
4.9 gal (19 l) |
4.9 gal (19 l) |
| Temperature range |
2°C – 70°C (35.6°F – 158°F) |
2°C – 70°C (35.6°F – 158°F) |
2°C – 70°C (35.6°F – 158°F) |
2°C – 70°C (35.6°F – 158°F) |
| Temperature control |
±0.1°C – ±0.2°C |
±0.1°C – ±0.2°C |
±0.1°C – ±0.2°C |
±0.1°C – ±0.2°C |
| Dewpoint temperature range |
5°C – 45°C (41°F – 113°F) |
5°C – 45°C (41°F – 113°F) |
5°C – 45°C (41°F – 113°F) |
5°C – 45°C (41°F – 113°F) |
| Humidity range |
20% – 90% RH |
20% – 90% RH |
20% – 90% RH |
20% – 90% RH |
| Humidity control |
±0.2 – ±1% RH |
±0.2 – ±1% RH |
±0.2 – ±1% RH |
±0.2 – ±1% RH |
| Power consumption |
1.1 kW |
1.2 kW |
1.4 kW |
2.0 kW |
| Internal dimensions (W x D x H) |
25.4 x 26.5 x 25.2 in (645 x 673 x 641 mm) |
24.4 x 27 x 50.4 in (621 x 687 x 1280 mm) |
52.8 x 27 x 50.4 in (1341 x 687 x 1280 mm) |
80.1 x 27.3 x 50.4 in (2035 x 695 x 1280 mm) |
| External dimensions (W x D x H) |
45.6 x 34.3 x 40 in (1159 x 872 x 1017 mm) |
31.6 x 41.7 x 78.5 in (803 x 1060 x 1995 mm) |
60 x 41 x 78.5 in (1523 x 1043 x 1995 mm) |
85.8 x 40.9 x 78.7 in (2180 x 1040 x 2000 mm) |
