Model |

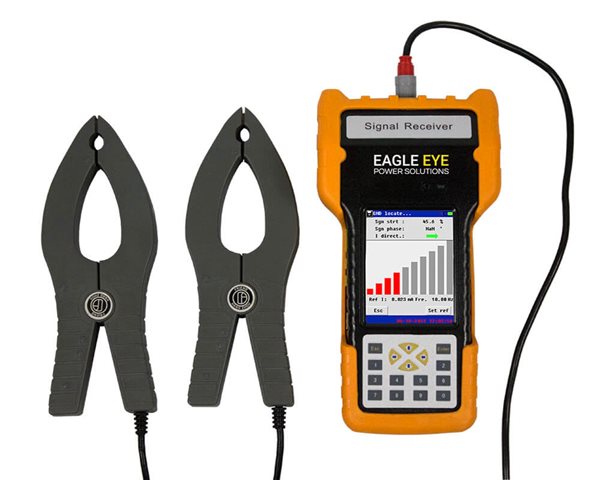

GFL-1000 |
Output Voltage |
24, 48, 110, 220, 500, 1000 VDC |
Output Frequency |
10 Hz |
Output Current Limitation |
5 mA or Unlimited (Max 25 mA) |
Fault Location Sensitivity |
≤1 MΩ |
Current Detect Sensitivity |
AC/DC Circuit: ≥0.5 mA |
Quick Search Clamp |
55 mm (diameter)
60 mm (jaw opening) |
Display |
Backlit Color LCD |
Operating Temperature |
-5°C – 40°C (23°F – 104°F) |
Power Requirements |
8.4 VDC Li-ion battery |
Dimensions |
360 x 260 x 135 mm (14.2 x 10.2 x 5.3 in) |
Weight |
7 kg (15.4 lb.) |
