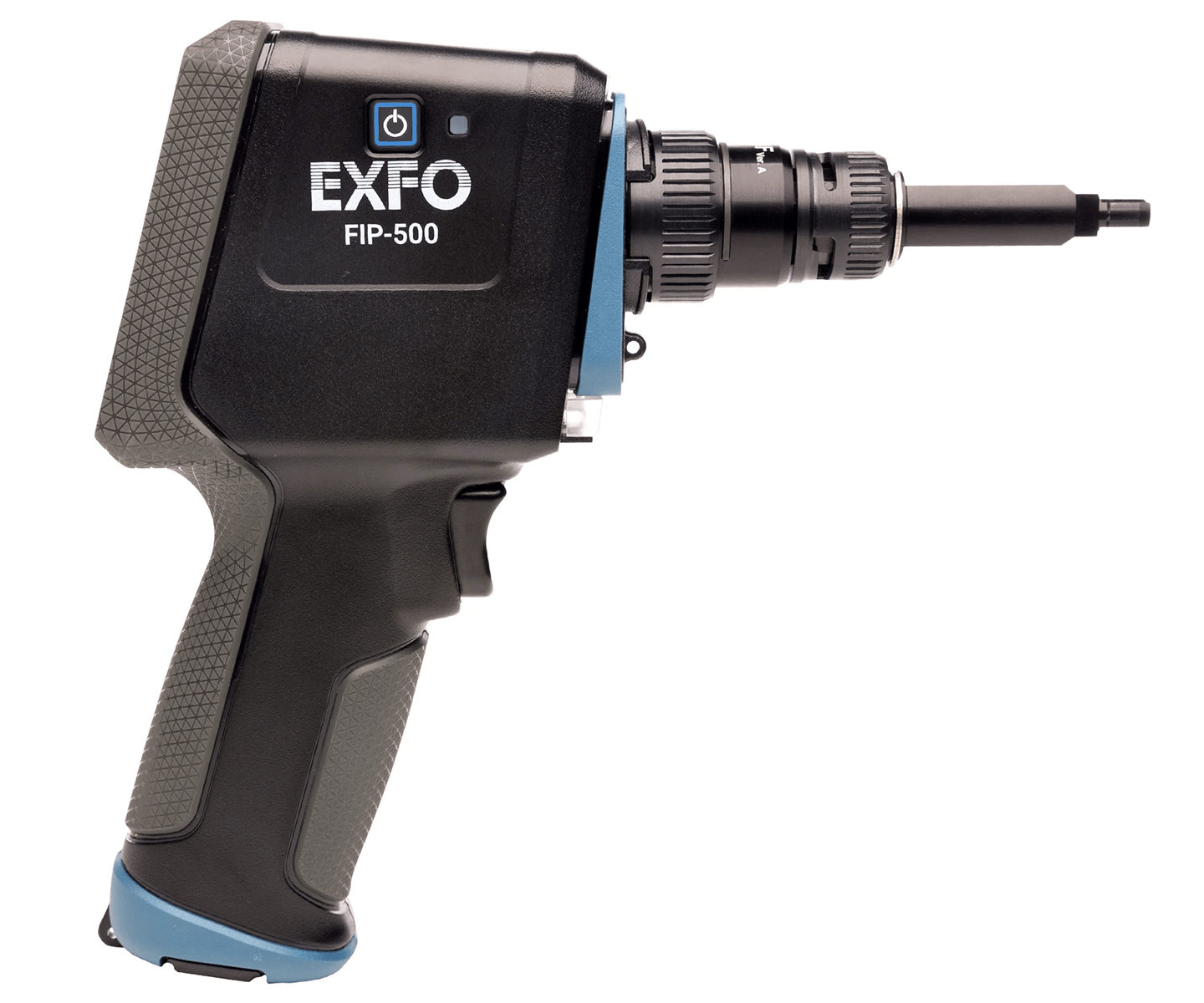

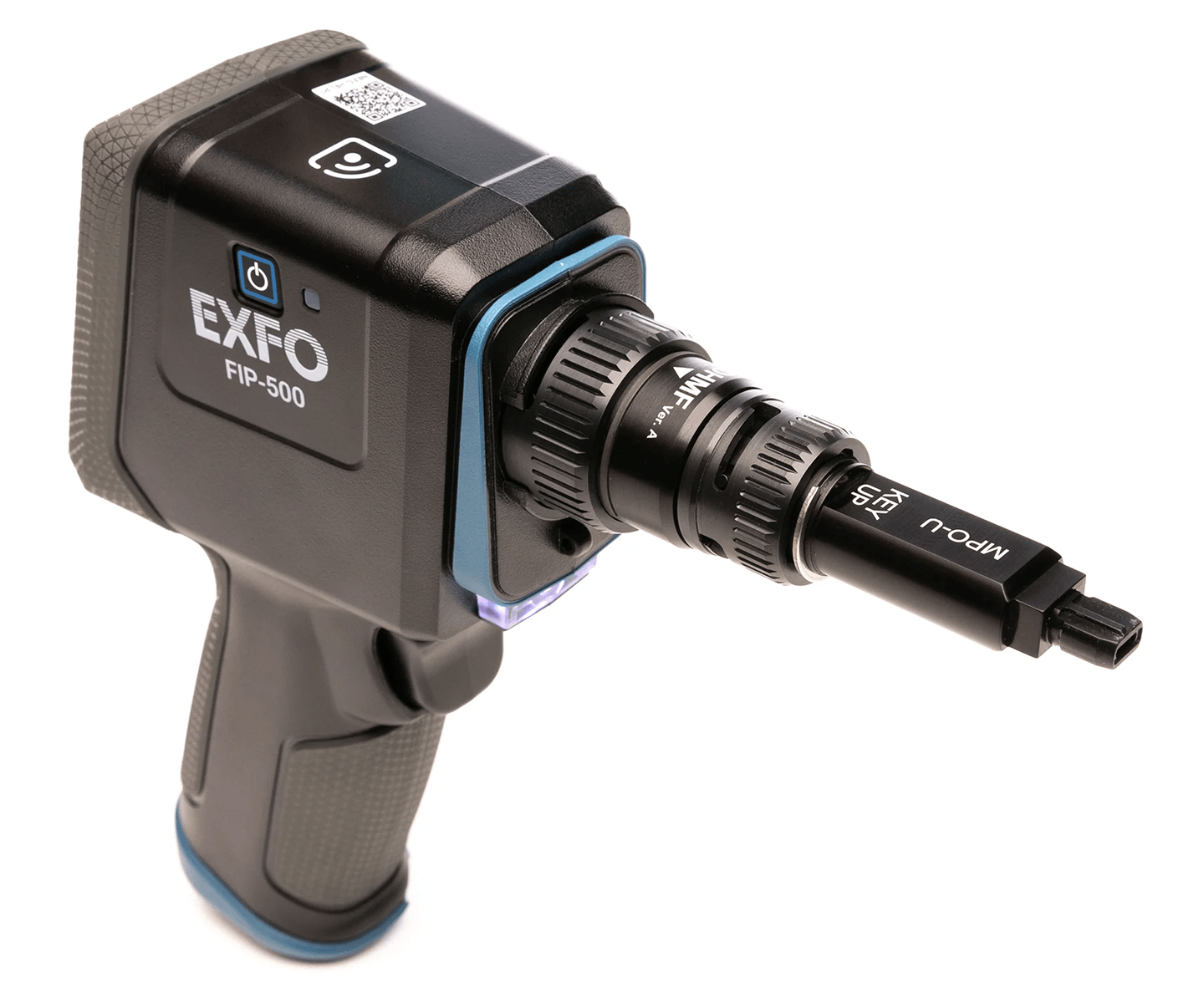

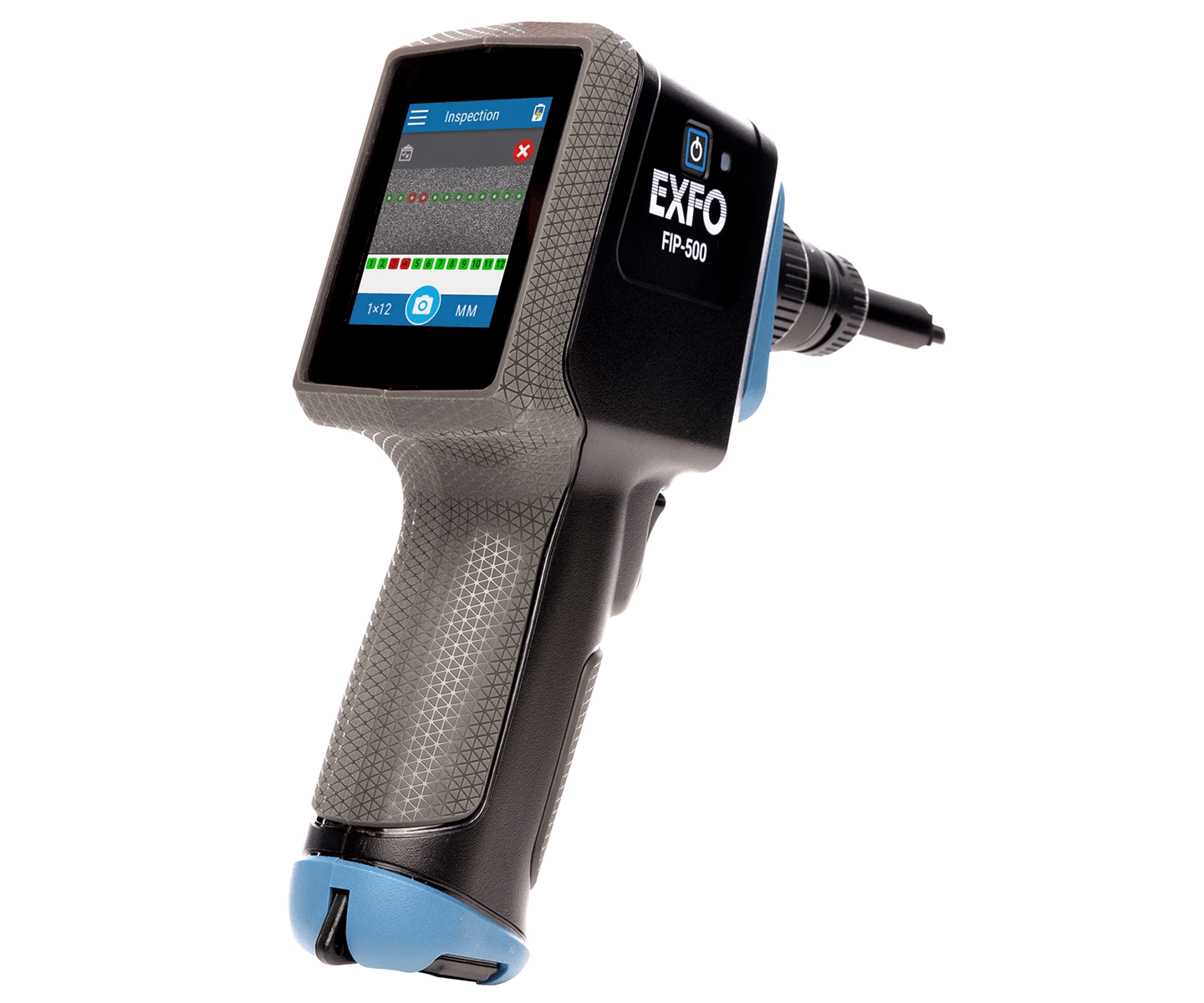

EXFO FIP-500 Fiber Inspection Probe

The EXFO FIP‑500 Fiber Inspection Probe is a fully automated, AI‑powered fiber inspection scope made for single‑fiber, duplex, and multi‑fiber (MPO) connector inspection. It performs zero‑button inspection with automatic detection, focus, image capture, IEC‑compliant analysis, pass/fail determination, and result storage. The FIP‑500 supports MPO connectors up to 4 rows, native duplex inspection, and stores up to 10,000 single‑fiber or 2,000 MPO‑12 results, with Wi‑Fi, Bluetooth, and USB‑C connectivity for reporting and job management.

ATEC offers the MPO UPC & APC inspection kit, which includes the FIP‑500 fiber inspection probe, an interchangeable multi‑fiber optical head, MPO/UPC and MPO/APC SmarTips, and a soft carrying case.

Product Info Related Products

End-to-end inspection and analysis time	MPO-12: 10 s MPO-24: 15 s Single-fiber: 4 s
Field of view	Multi-fiber: 2.03 mm × 5.16 mm Single-fiber: 0.75 mm × 0.75 mm
Pass/fail analysis	IEC 61300-3-35 ED.3 (2022), IEC 61300-3-35 (2015), user-set criteria
Camera sensor	2 sensors of 5 megapixels
Light source	2 violet LEDs at 415 ±15 nm
Lighting technique	Coaxial, pulsed
Display	2.4 in IPS color LCD, 166 dpi, capacitive touchscreen
CPU	1.4 GHz dual-core
Connectivity	Bluetooth®, Wi‑Fi, USB‑C
Battery type	Lithium‑ion polymer (Li‑Po) rechargeable battery
Autonomy	11 hours
Connector	USB‑C

First AI-powered inspection in the industry for enhanced detection accuracy even in poor lighting or dirty fiber scenarios
Fastest inspection in the industry (in under 10 seconds for MPO-12)
Best-in-class optical performance for accurate and repeatable results
Zero-button inspection: 100% automated from insertion to data saving
Wide array of adapter tips for single, duplex and multi-fiber connectors (e.g., LC, SC, ST, MPO, OptiTap®, OptiTip®)
Smartphone-grade 2.4-inch color touchscreen
