Viavi INX 760 Fiber-Optic Probe Microscope

The Viavi INX 760 is an automated fiber‑optic probe microscope made for simplex, duplex, and multifiber (MPO) connector inspection and analysis. It automates setup, focus, panning, IEC‑compliant analysis, and result storage, delivering inspection cycle times of under 10 seconds depending on connector type. The INX 760 uses AutoID™ inspection tips, PanOptic™ imaging for full field‑of‑view, and supports wired USB‑C and wireless Wi‑Fi/Bluetooth connectivity for efficient field workflows and job management.

Product Info Related Products

Field of View (FOV)	Multifiber: 6400 x 1425 μm Simplex: 1000 x 1425 μm
Supported Connectors	Simplex, duplex, and multifiber (≤2 rows, ≤16 fibers per row)
Inspection Automation	Auto setup, focus, panning, IEC analysis, and result storage
Inspection Speed	≤4 s (simplex), ≤5 s (duplex), ≤8 s (MPO 12×1)
Standards Compliance	IEC 61300-3-35 (Edition 2 & 3), custom profiles
Imaging Engine	PanOptic™ Imaging Engine (full edge-to-edge field of view)
Inspection Tips	AutoID™ stainless-steel tips for automatic configuration
Display	2.4-inch color touchscreen (320 × 240)
Connectivity	USB‑C wired, Wi‑Fi (802.11 b/g/n), Bluetooth® 5.2 BLE
Onboard Storage	Up to 10,000 simplex results with images (varies by connector type)
Battery Type	Quick-swap Li-ion battery (17 Wh)
Battery Runtime	>4 hr (1 test/min), >2 hr (4 tests/min)
Mounting	¼-20 tripod mount
Operating Temperature	0 °C–40 °C (32 °F–104 °F)
Weight	0.67 kg (1.47 lb) without tip

True Automated Inspection delivers the industry's fastest workflow for user applications that automates every step of the inspection process.
AutoID technology auto-configures the microscope for the attached tip.
PanOptic Imaging Engine ensures edge-to-edge field-of-view without compromising magnification and resolution quality.
Engineered to deliver the best of both classical and AI-based image analysis, using classical algorithms for rapid, energy-efficient analysis in standard scenarios and AI-augmented analysis for more complex inspections.

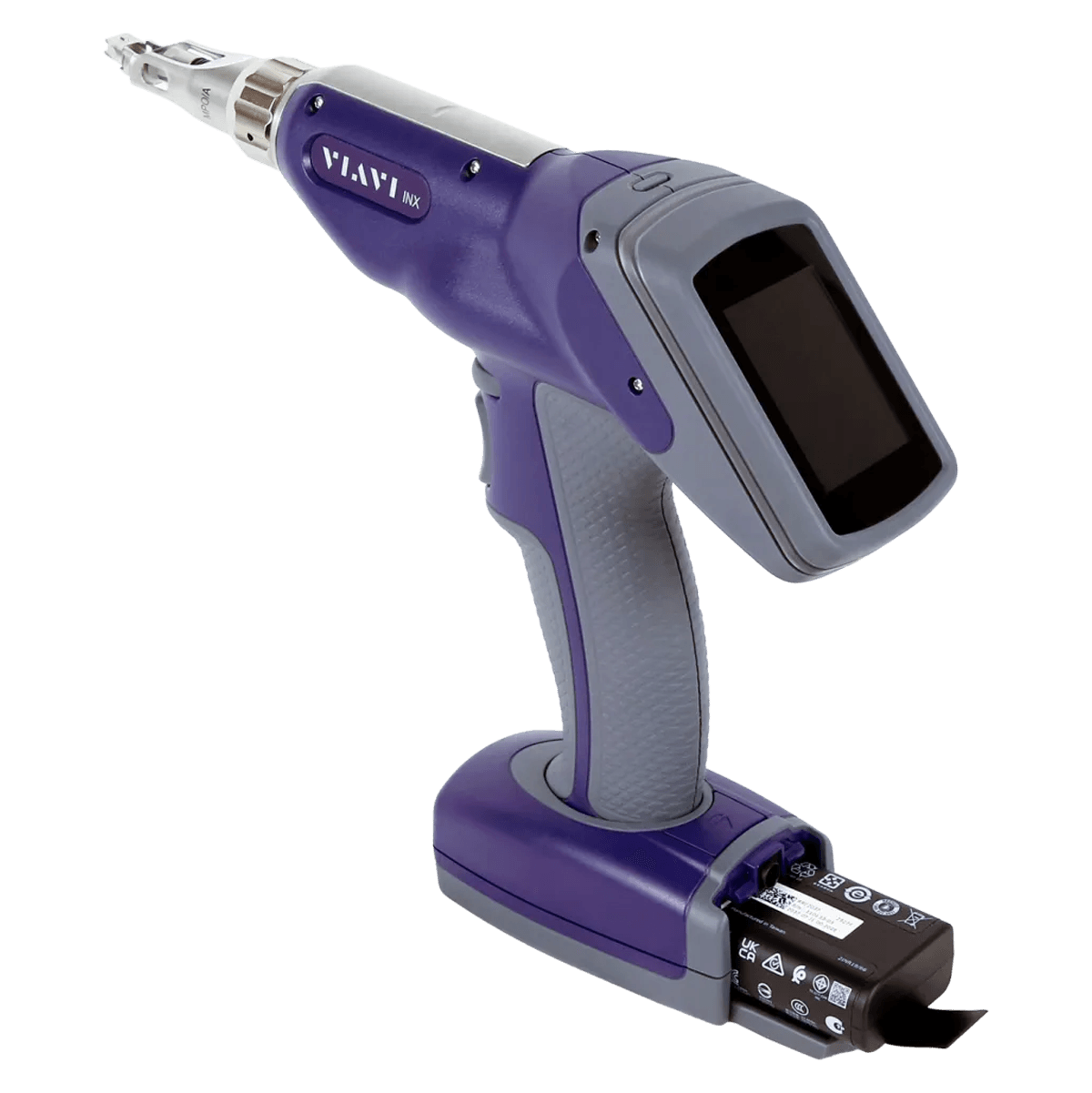

Quick-swappable and externally chargeable battery to maximize nonstop operation.
VIAVI TPA Enabled, ensuring alignment, efficiency, and accuracy at every stage of a job with Test Process Automation.
