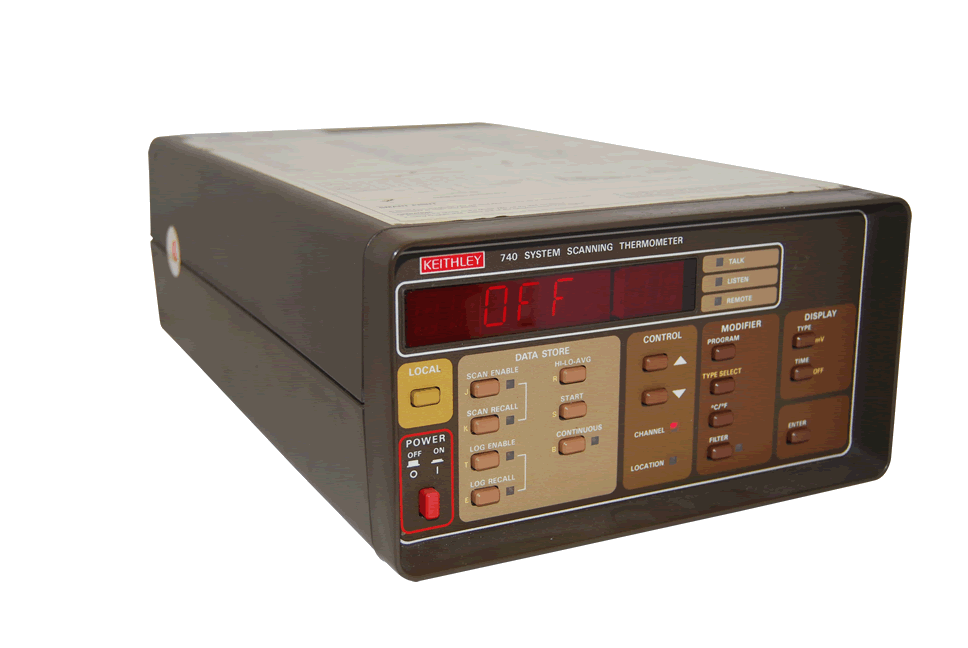

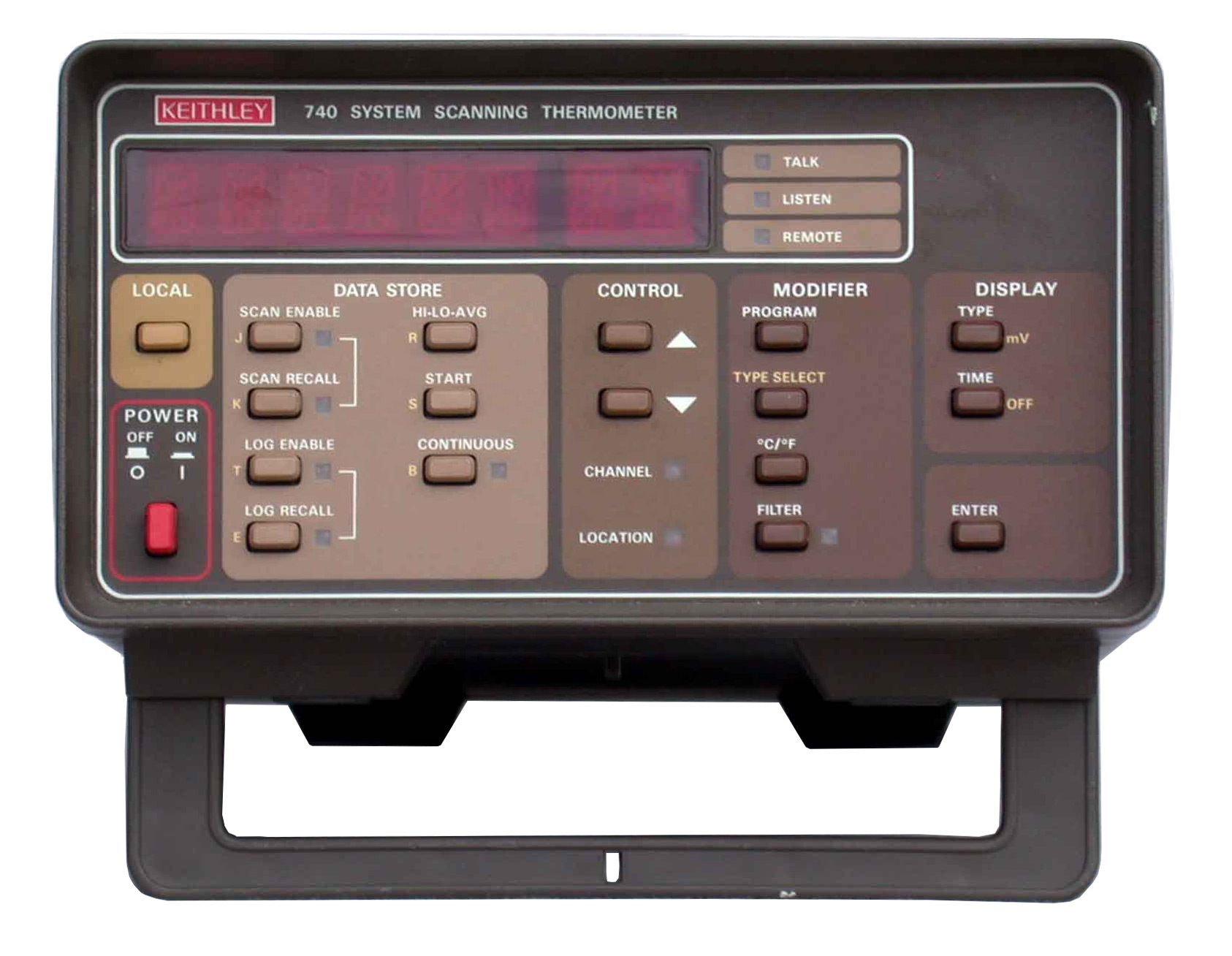

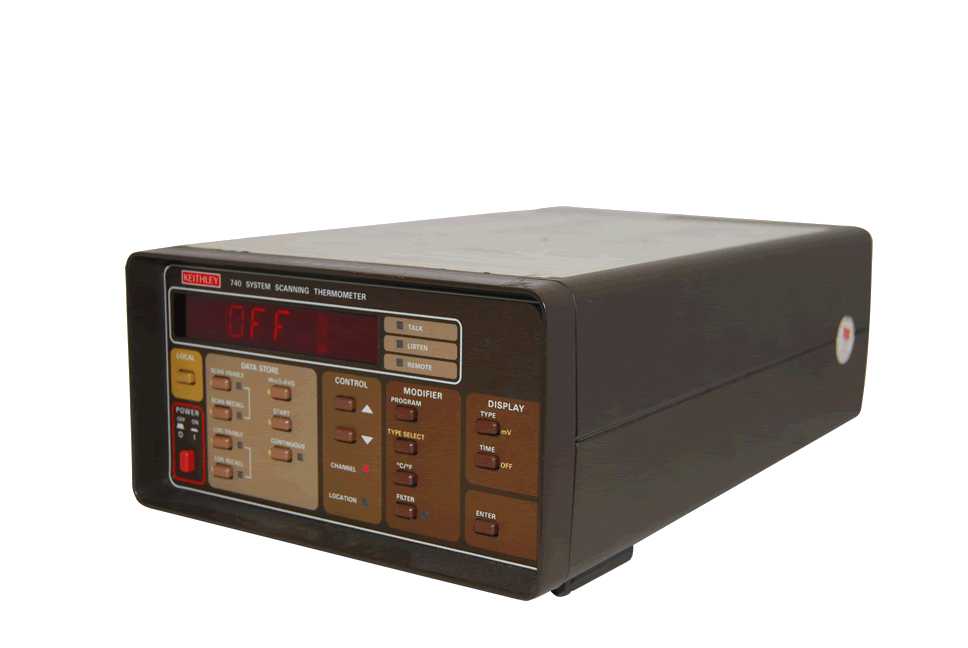

Keithley 740 System Scanning Thermometer

Keithley 740 System Scanning Thermometer
Enlarge Image
Keithley 740 System Scanning Thermometer Keithley 740 System Scanning Thermometer Keithley 740 System Scanning Thermometer
Request Quote Print Page
Datasheet



The Model 740 Programmable Thermometer has a built-in reference junction and will linearize any of 7 different thermocouple types.


Features:

  • Scan 9 thermocouple inputs
  • Expand to 81 inputs
  • Thermocouple types J, K, T, E, R, S or B
  • °C, °F, or mV readings
  • Store temperature profiles
  • Record temperature trends


Specifications:

mV Input Resistance >1 GW
Input Current 800 pA max
Max Input 250V rms, 350V peak
Max Common Mode Voltage 200V peak to earth
Thermocouple Loop Resistance 1 kW max
Filter Settling Time 100 ms
Scanning Rate Filter Disabled >20 channels/second
Filter Enabled >5 channels/second
Bench Reading Rate Filter Disabled 8 readings/second
Filter Enabled 4 readings/second
Logging Interval One of 12 selectable rates from 50ms to 1 hour
Scanning Interval One of 10 selectable rates from 500ms to 1 hour

Type Temperature Range °C Temperature Range °F Accuracy
mV
-99.999 to 100.000 mV
±(0.02% + 3 mV)
J -100 to 760 -148 to 1400 ±0.4°C or ±0.8°F
K -100 to 1372 -148 to 2501 ±0.5 °C or ±0.9°F
T -100 to 400 -148 to 752 ±0.5°C or ±0.8°F
E -100 to 1000 -148 to 1832 ±0.5 °C or ±0.9°F
R 0 to 1780 32 to 3236 ±1 °C or ±2°F
S 0 to 1780 32 to 3236 ±1°C or ±2°F
B 350 to 1820 662 to 3308 ±1 °C or ±2°F
