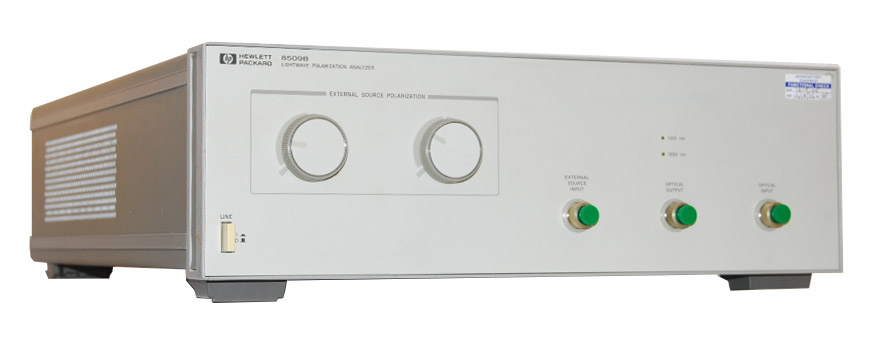

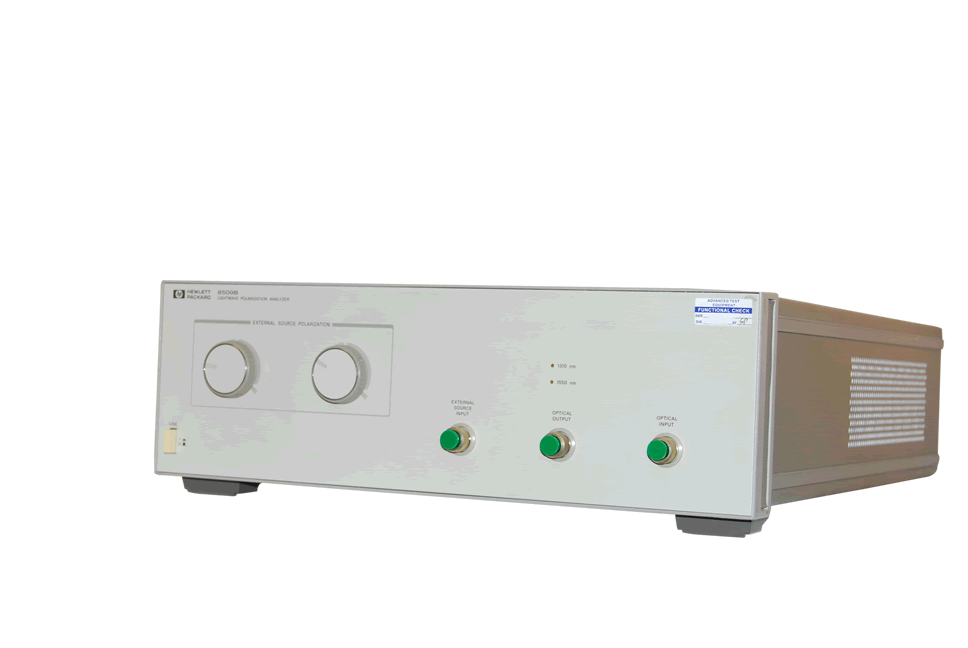

Keysight 8509B Polarization Analyzer/Controller System

1200 to 1600 nm Polarization Controller and Analyzer System

Product Info
  • Wavelength: 1200 to 1600 nm
  • Input Power: +10 to -55 dBm
  • Avg. Linearity: ±0.6 dB
  • Avg. Measurement Uncertainty:  ±15%
  • Degree of Polarization Measurement Uncertainty:
    • 1200 to 1280 nm: ±5%
    • 1280 to 1340 nm: ±2%
    • 1470 to 1580 nm: ±2%
    • 1580 to 1600 nm: ±3%
  • Measurement Rate: >1000 per second
  • Average Optical Power Output:
    • 1310 nm: 300 mW
    • 1550 nm: 230 mW
  • Wavelength Accuracy: ±20 nm
  • Automated polarization-mode dispersion measurements
  • Calibrated, real-time measurements of state and degree of polarization
  • Fast, automatic measurements of polarization-dependent loss in optical components


SKU: AGIL-8509B-012
