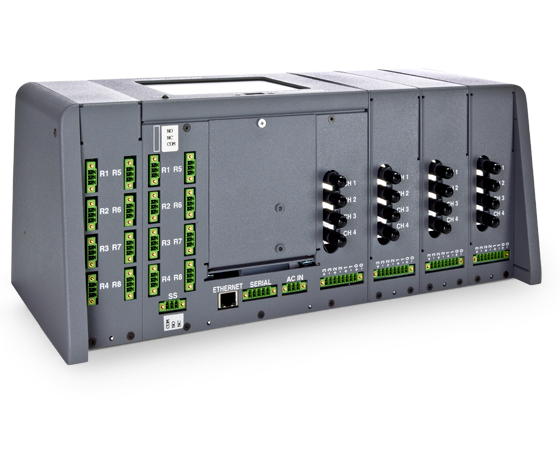

LumaSense LumaSMART Winding Hot Spot Temperature Controller

Categories

Transformer Turn Ratio (TTR)

Documents

Datasheet

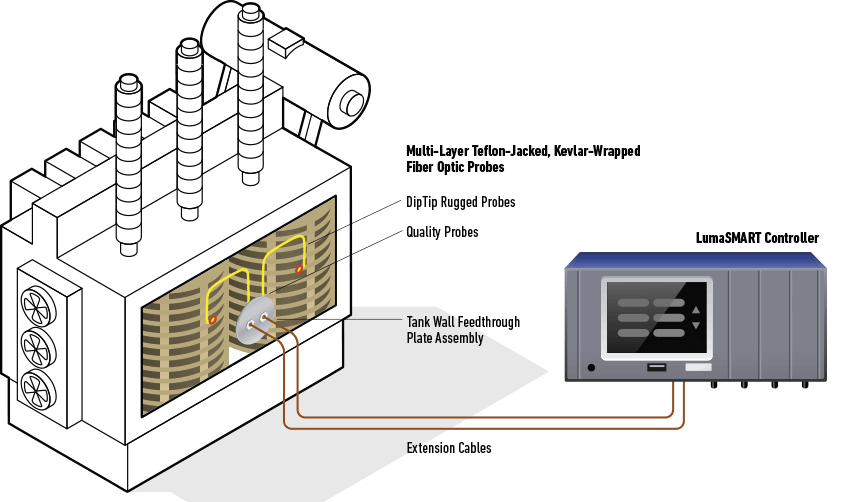

The LumaSense LumaSMART Winding Hot Spot Temperature Controller is ideal for EHV/UHV/HVDC transformers and generation, transmission and distribution transformers and reactors. LumaSense LumaSMART controllers utilize Luxtron Fluoroptic fiber optic temperature measurement technology to provide real time transformer temperatures that can be used for protection and control at a cost effective price. Transformers are critical assets that often take the brunt of an overload condition and are the most likely to be damaged without proper control and protection. The drift-free, calibration-free nature inherent in Fluoroptic technology makes the LumaSMART ideally suited for use in transformers as a reliable and cost-effective means of protection for these valuable assets.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Maximize transformer performance and extend transformer life with real time data
Modernized controller with full communications capabilities and interactive touch screen display
Enables accurate and safe control during overload situations
Enables condition based maintenance and inspections
Trusted performance, durability and longevity worthy of your investment
Design verification of transformers in the factory
Allow for dynamic loading conditions
Ability to control cooling fans, oil circulation pumps and alarms / protective trips
Enable Smart Grid interaction with your transformers

Specifications

Performance
Number of Channels	4 to 16 (in increments of 2)
Temperature Range	-30 to 230ºC
Accuracy	±2°C over entire temperature range for life of transformer without calibration
Display Response Time	1 sec
Measurement Resolution	0.1ºC
Precision	±0.5ºC
Light Source Life Span	Life of the transformer
EMI/RFI Susceptibility	Complete immunity
Interface
Display	5.7-inch interactive touch screen
Probe Signal Strength Readout	Accessible for all channels
Diagnostics	On-board self diagnostics and troubleshooting guide
Environmental Specifications
Operating Temperature	-30 to 70°C
Storage Temperature	-35 to 75ºC
Communication
Analog Output	Choice of 4-20mA or 0-1mA
Serial Output	RS-232C and RS-485, Ethernet, USB
Relays	0, 8 or 16 Form-C programmable relays
System Status Relay	1 Form-C relay
Communications	Modbus ASCII, Modbus RTU, DNP3.0, ASCII and IEC61850 Standard
Probes	Accepts LUXTRON Rugged and Quality Probes
Data Storage	2 GB of data at 1 minute intervals on all channels, as well as error codes and relay statuses. Retains approximately 40 years of data.
Electrical
Input Power	90 to 264 VAC or 127 to 370 VDC, 47 to 63 Hz
Surge Protection	4000V (IEEE C37.90.1-2002)
Consumption	08 W (maximum)
Physical
Mounting	Rack, panel or wall mount available
