| Supply |
Single-Phase |
| VAC |
24 to 440 Vrms, 50/60 Hz (Phase - Phase) |
| 24 to 240 Vrms, 50/60 Hz (Phase - protective earth) |
| VDC |
50 V |
| Current |
1 x 25 A rms continuous |
| 1 x 30 A rms for 30 min |
| Dimensions |
17.7" W x 12.2" H x 19.7" D (449 x 310 x 500 mm) |
| Weight |
~79.5 lbs (36 kg) |

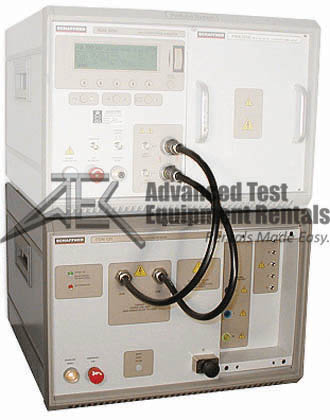

Note: The Schaffner CDN 133 is a 3-phase Coupling Network version.
The CDN 131 single-phase Coupling Network can be used for the following testing standards:
| ANSI/IEEE C62.45 - 1987 |
VDE 0109 |
| IEEE 587 |
VDE 0845/T2 |
| IEC 1000-4-5 (IEC 801-5) |
VDE 0846/T11 |
| IEC 664 |
EN 50082-1/ -2 |
| EN 55101-4 |
IEC 1000-4-4 |
| VDE 0843 |
VDE 0846 Part 11 |
| FTZ |
NAMUR |
| ANSI/IEEE C62.41 |
