Com-Power ANK-318

EMC Antenna and Current Probe Kit | 30 Hz - 18 GHz

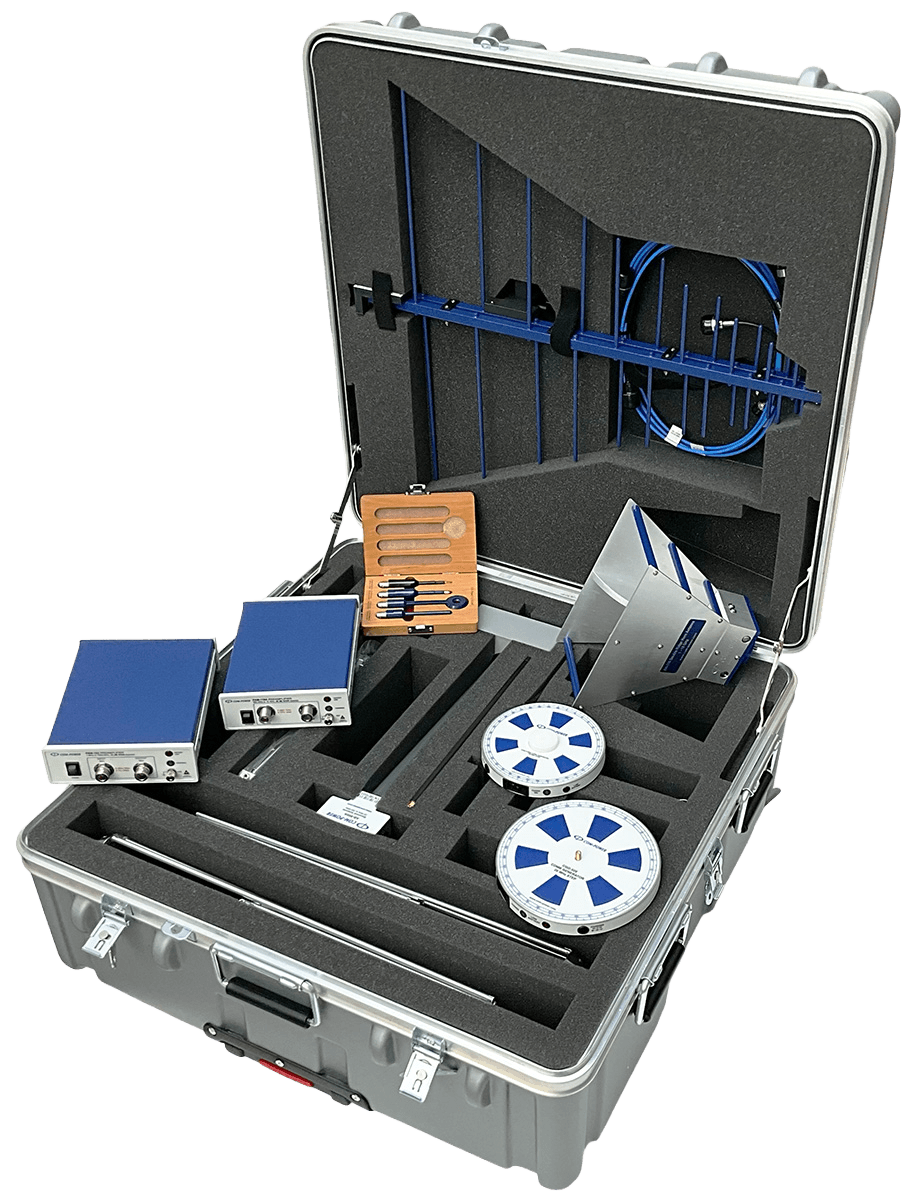

The Com-Power ANK-318 is an antenna kit that offers a frequency range of 30MHz - 18GHz. This kit comes with three antennas, two preamplifiers, two comb generators, a measurement cable set, a near-field probe set, and a compartmentalized carrying case. This kit is used to perform pre-compliance and qualification-level radiated emissions testing, test-site verification, and EMI troubleshooting.

Product Info Available Add-Ons Related Products

Included Components
ABF-900 Biconical antenna	30 - 300MHz
ALC-100 Log periodic antenna	300MHz - 1GHz
AH-118 Double-ridge horn antenna	1 - 18GHz
PAM-103 Preamplifier	1MHz - 1GHz
PAM-118A Preamplifier	1 - 18GHz
CGO-520 Comb Generator	20MHz - 4.5GHz
CGO-5100B Comb Generator	1 - 18GHz
CBL-ANK318 Measurement Cable Set	(1) 1m coaxial cable w/ Type-N (m) connectors
	(1) 1m coaxial cable w/ Type-N (m) and BNC (m) connectors
	(1) 5m coaxial cable w/ Type-N (m) connectors
PS-500 Near-Field Probe Set

Broadband antennas
High gain, low noise preamplifiers
Comb generators
Measurement cable set
Near-field probe set
Carrying case

Portable measurement solution for pre-compliance and qualification-level radiated emissions testing across 30 MHz to 18 GHz.
Test-site verification
Supports board- and enclosure-level EMI troubleshooting
