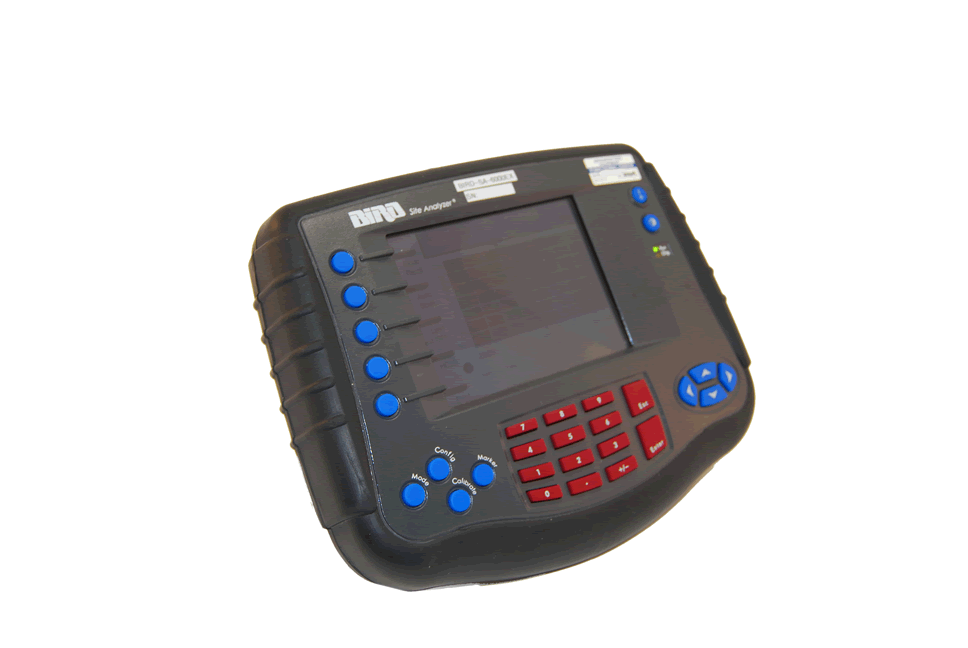

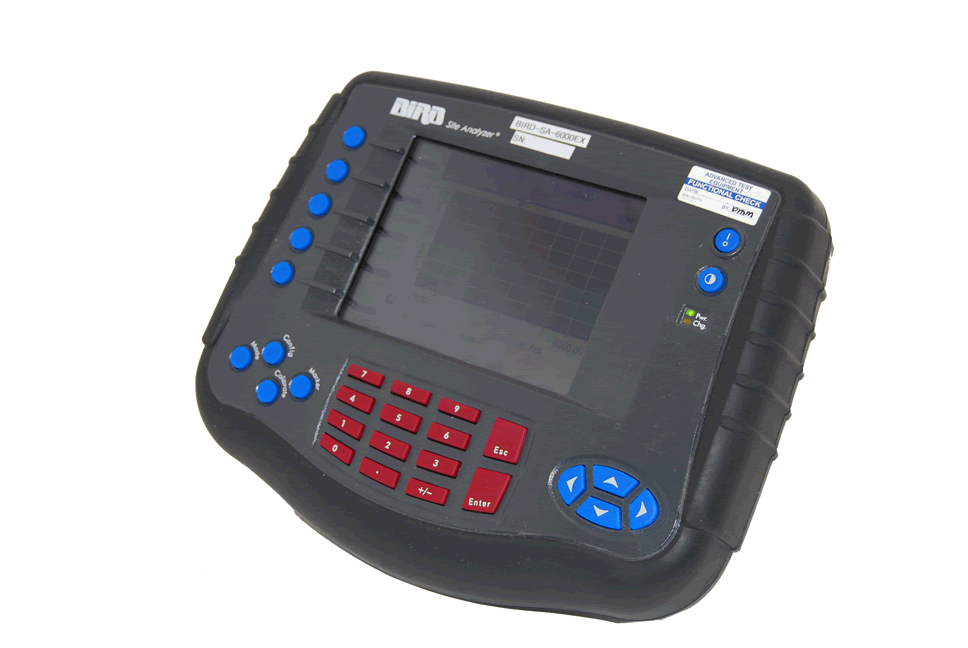

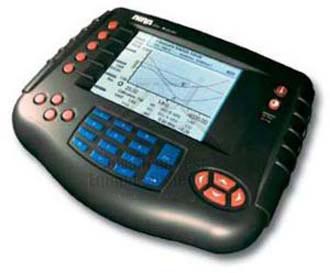

Bird SA-6000EX Site Analyzer, 25 MHz - 6 GHz

Used Sales Price: $5150
Rent Bird SA-6000EX Site Analyzer, 25 MHz - 6 GHz
Enlarge Image
Rent Bird SA-6000EX Site Analyzer, 25 MHz - 6 GHz Rent Bird SA-6000EX Site Analyzer, 25 MHz - 6 GHz Rent Bird SA-6000EX Site Analyzer, 25 MHz - 6 GHz
Request Quote Print Page
Manual Datasheet
The Bird SA-6000EX Site Analyzer, 25 MHz - 6 GHz is the user-friendly test solution for installing, maintaining, and troubleshooting your antenna and cable systems. Field engineers and technicians rely on this rugged handheld tool to get the job done. Wireless equipment manufacturers, service providers, contractors, tower erectors, and military field personnel world wide approve of the analyzer's precision VSWR and Return Loss results. Wideband Power Sensors up to 4 GHz optionally available for use with the built in Digital Power Meter.

Specifications:


Frequency Range (MHz) 25-6000
Frequency Resolution 25 kHz; 25-800 MHz
50 kHz; 800-2500 MHz
150 kHz; 2500-6000 MHz
Power Measurement Yes
Return Loss (dB) 0 to -60
Test Port N-type female connector
Impedance 50 ohms
Speed 1 multi-frequency scan (238 points)/2 seconds
1 multi-frequency scan (475 points)/3.5 seconds
1 multi-frequency scan (949 points)/6 seconds
Trace Resolutions 238 (default), 475, or 949 per trace data points
Storage Capacity 15 Set-Ups/(500) 238 point traces
Immunity to Interfering Signals Rejects on-frequency signals up to + 13 dBm
Maximum Input Signal (dBm) +22
