Boonton RTP5318 Real-Time Peak Power Sensors

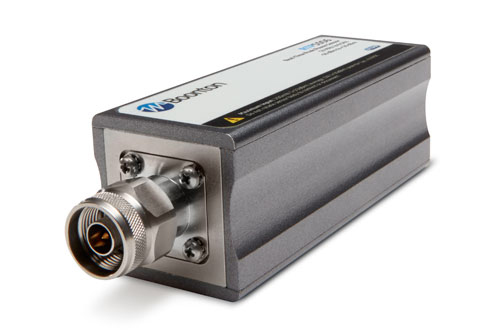

The Boonton RTP5318 Real-Time Peak Power Sensor is a real-time peak power sensor that provides an RF frequency range of 50MHz to 18GHz and an average dynamic range of -34 to +20dBm. RTP5318 power sensors can deliver 100,000 measurements per second due to Boonton’s Real-Time Power Processing™. Real-Time Power Processing™ (RTPP) technology is a unique parallel processing method of performing the multi-step process of RF power measurements at extreme speeds. Boonton RTP5318 power sensors capture, display and measure every pulse, glitch and detail with no gaps in data and zero latency. In addition, the Boonton RTP5318 units include features such as automatic pulse measurements, CCDF and crest factor statistical analysis, multi-channel capabilities and documentation tools.

Product Info Related Products

RF Frequency Range	50 MHz to 18 GHz
Average Dynamic Range	-34 dBm to +20 dBm
Pulse Dynamic Range	-24 dBm to +20 dBm
Internal Trigger Range	-10 dBm to +20 dBm
Rise Time (fast/slow)	5 ns/<10 µs
Video Bandwidth	70 MHz/350 kHz
Single-shot Bandwidth	35 MHz

Up to 70 MHz video bandwidth with 5 ns rise time.
Real-Time Power Processing™ technology with zero measurement dead time.
100,000 measurements per second.

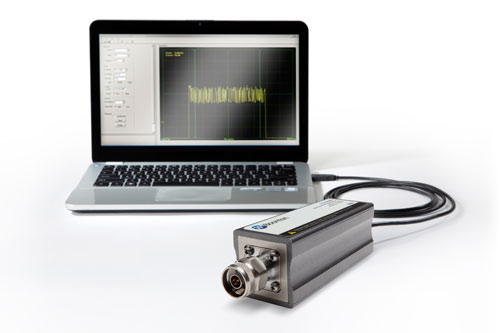

Power Analyzer Suite advanced measurement and analysis software.
Crest factor, CCDF and statistical measurements.
10 GS/s effective sample rate.
100 MS/s continuous sample rate.
Synchronized multi-channel measurements.

Crest Factor and Peak to Average Power Ratio (PAPR) measurements for Power Amplifiers and RF components.
Telecommunication & Satellite signals: W-CDMA, QAM, OFDM, LTE-FDD and LTE-TDD.
WiFi signals: 802.11ac and legacy 802.11 a/g/n/b.
RF and Microwave pulse modulated power measurements: RADAR, MRI, Particle Accelerators.
General purpose scalar measurements such as gain and return loss using modulated and pulsed signals as well as CW.
Monitoring, Recording, ALC loops, transient phenomena.

SKU: Boon-RTP5318
