Eddyfi

Eddyfi M2M Gekko Ultrasonic Flaw Detector

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery
Eddyfi M2M Gekko Larger
Eddyfi M2M Gekko Ultrasonic Flaw Detector
Eddyfi M2M Gekko Ultrasonic Flaw Detector
Categories
  • Ultrasonic Flaw Detectors
    Ultrasonic Flaw Detectors
Documents
  • Datasheet
  • Print
  • Email

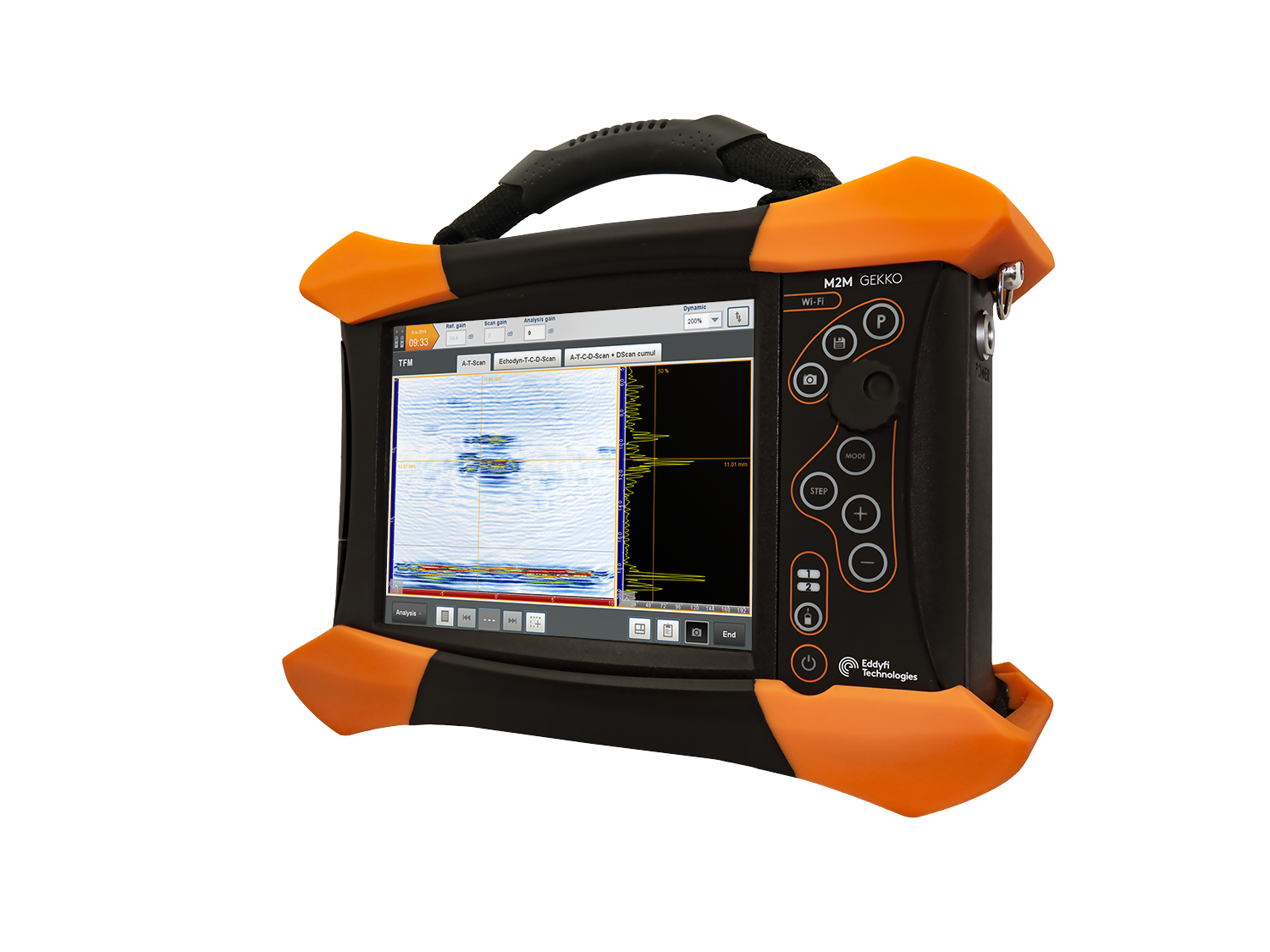

The Eddyfi M2M Gekko Eddy Ultrasonic Flaw Detector is a field-proven flaw detector offering PAUT, UT, TOFD, and TFM through the streamlined user interface capture. Released in 32:128, 64:64 or 64:128 channels configuration, Gekko combines high-resolution and speed while reducing inspectors’ training time. With a 64-channel parallel architecture, this is the only flaw detector offering conventional UT, standard PAUT, TOFD and real-time Total Focusing Method (TFM).

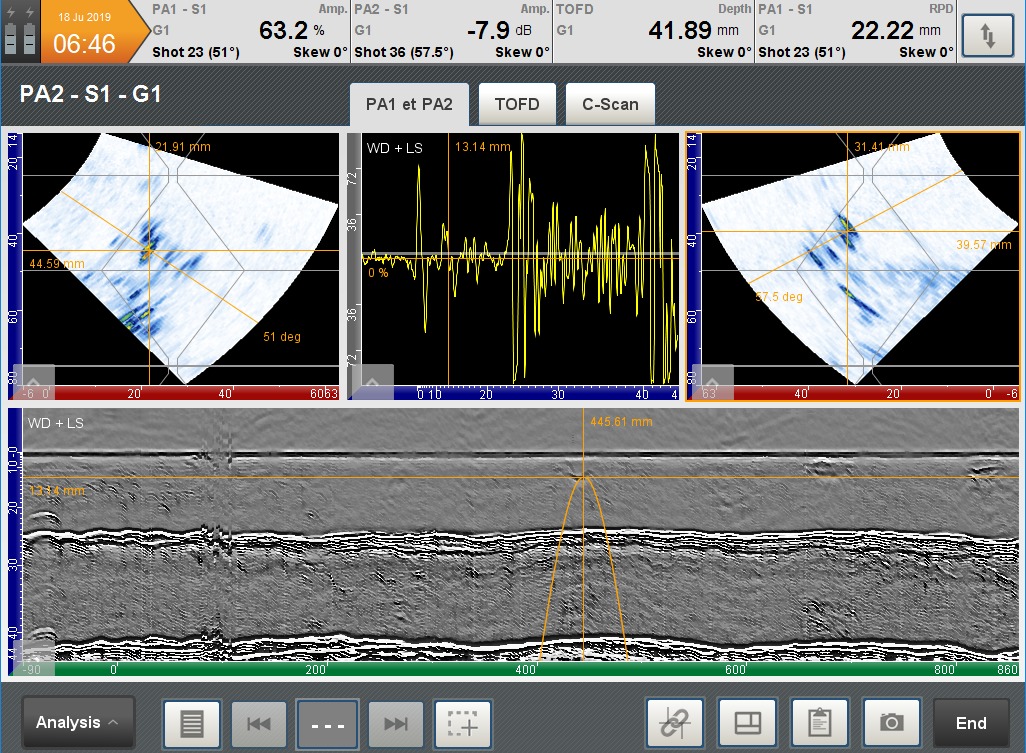

All Eddyfi M2M Gekko techniques (UT, TOFD, PAUT, TFM) are available for conventional and phased-array probes as well as dual-array probes (linear and matrix). Delay laws can be calculated onboard avoiding the need to import them from a PC. With a fast SSD hard drive, operators can store large inspection files (10 Gb) and analyze them on the spot using the 10.4’’ touchscreen. Incremented data saving and automatic reports can be customized and exported as PDF files. Data can also be exported for analysis on a PC using the free viewer provided with Eddyfi M2M Gekko.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • Released in 32:128, 64:64, or 64:128 configurations
  • Robust field-unit with high battery autonomy
  • High-resolution real-time TFM & ATFM
  • Fully embedded scan plan for all geometries
  • Evolutive software platform following inspectors’ feedback
Specifications
L x W x H: 410 mm x 284 mm x 126 mm 10.4‘’ high contrast resistive screen Resolution 1024 x 768 px
Operating temperature range: from -10 °C to 45 °C | 14 °F to 113 °F Weight: 6 kg (without battery) 0.480 g /battery
Storage temperature range: -10 °C to 60 °C | 14 °F to 140 °F with battery Designed for IP66
Operating time: 4h (hot swappable battery Shock resistance according to MIL-STD-810G

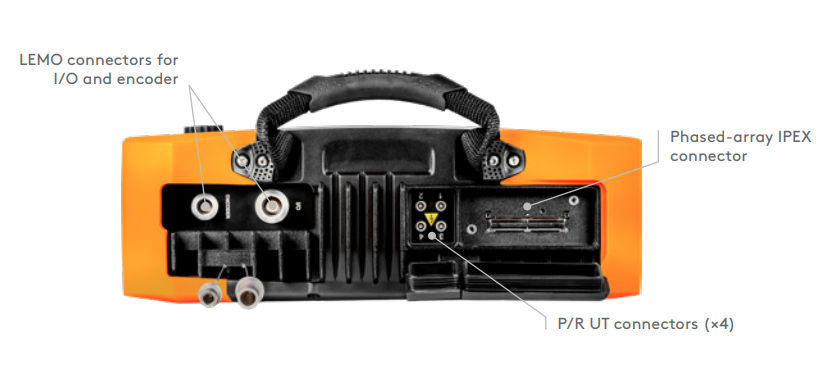

1 IPEX connector for phased-array (can be upgraded to 2 with splitter) 4 LEMO 00 connectors for UT-TOFD (4PR)
3 encoder inputs 1 external trigger

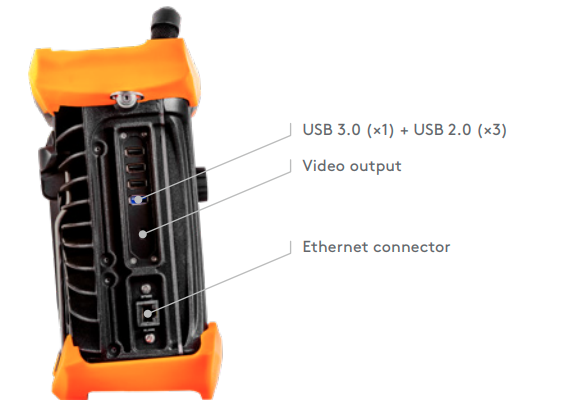

3 USB 2.0 Remote control and data transfer through Ethernet
1 RJ 45 Ethernet connector 16 analog I/O
Maximum active aperture: 64 elements Linear scanning, sectorial scanning, compound scanning, CIVA Laws
Total number of channels : 64 Focusing modes: true depth, sound path, projection
Linear, matrix, DLA and DMA probes CIVA fueled phased-array calculator
Up to 6 probes | Up to 8 groups | Up to 2,048 delay-laws On-board focal law calculation on plate, cylinder, T & Y, nozzle
Reconstruction channels: up to 64 elements Max number of points of the TFM image: up to 1Mpi (post-processing)
Max refresh rate: up to 80fps Sound paths: direct (L or S), indirect and converted modes
Real-time Adaptive TFM (ATFM) module 4 resolution levels
All calibration wizards (including TCG) available A-Scan, B-Scan, C-Scan, D-Scan, Echodynamic, Top view, Side view, 3D view
Applications
  • Oil & Gas: weld, corrosion mapping, HTHA, HIC, CRA, SCC
  • Aerospace: composite, titanium, FSW, corrosion
  • Power Generation: thick weld, dissimilar material, casted stainless steel, boiler tubes
  • Metallurgy: slab, billets, forging, bars
  • Automotive, Railway: rail, axels, wheels, laser weld, spot weld, gear
Options
Accessories
Standards
Media

RELATED PRODUCTS

General Electric Mentor UT
General Electric Mentor UT Phased Array Flaw Detector
Olympus Omniscan X3
Olympus Omniscan X3 Phased Array UT Flaw Detector
Olympus OmniScan MX Ultrasonic Flaw Detector
Olympus OmniScan MX Ultrasonic Flaw Detector
Baker Hughes Krautkramer
Baker Hughes Krautkramer USN 60/60L Portable Ultrasonic Flaw Detector
Dakota Ultrasonics DFX-7+
Dakota Ultrasonics DFX-7+ Flaw Detector & Thickness Gauge
Dakota Ultrasonics DFX-8
Dakota Ultrasonics DFX-8 Flaw Detector and Thickness Gauge
Danatronics ECHO 9 Ultrasonic Thickness Gauge
Danatronics ECHO 9 Ultrasonic Thickness Gauge
 DÜRR HD-CR 35
DURR HD-CR 35 NDT CR Scanner
Eddyfi 64 Element Ultrasonic Transducer
Eddyfi 64 Element Ultrasonic Transducer
Eddyfi 64:128 Ultrasonic Flaw Detector Probe
Eddyfi 64:128 Ultrasonic Flaw Detector Probe
Eddyfi Mantis 16:64PR Phased Array Flaw Detector
Eddyfi Mantis 16:64PR Phased Array Flaw Detector
Elcometer FD700DL+ Flaw Detection Gauge
Elcometer FD700DL+ Flaw Detection Gauge
Elcometer FD800DL+ Bench-Top Flaw Detector
Elcometer FD800DL+ Bench-Top Flaw Detector
General Electric 100N3901
General Electric 100N3901 Scanner for Mentor UT Phased Array Flaw Detector
JMD NDT Ekko
JMD NDT Ultrasonic Flaw Detector Ekko
Kruss MSA Mobile Surface Analyzer
Kruss MSA Mobile Surface Analyzer
MALA CX-12 Ground Penetrating Radar
MALA CX-12 Ground Penetrating Radar
MALA Easy Locator HDR Ground Penetrating Radar
MALA Easy Locator HDR Ground Penetrating Radar
 MALÅ Easy Locator HDR Rev2 w/ Mini RTC
MALÅ Easy Locator HDR Rev2 w/ Mini RTC
NDT Systems Avenger
NDT Systems Avenger EZ Flaw Detector
NDT Systems Raptor
NDT Systems Raptor Precision Ultrasonic Flaw Detector
OKOndt GROUP Eddycon C
OKOndt GROUP Eddycon C Current Flaw Detector
OKOndt GROUP Eddycon CL
OKOndt GROUP Eddycon CL Current Flaw Detector
OKOndt GROUP Sonocon B Ultrasonic Flaw Detector and Thickness Gauge
OKOndt GROUP Sonocon B Ultrasonic Flaw Detector and Thickness Gauge
Olympus 7.5L32-A31
Olympus 7.5L32-A31 Phased Array Probe
  • Certified ISO 9001
  • A2LA
REP PORTAL Terms & Conditions About About ATEC Blog Media News FAQs Forms Careers

© 2023 Advanced Test Equipment Corp. All Rights Reserved.

Privacy Notice Terms of Use Site Map Linecards
This site uses cookies, as explained in our cookie policy.
