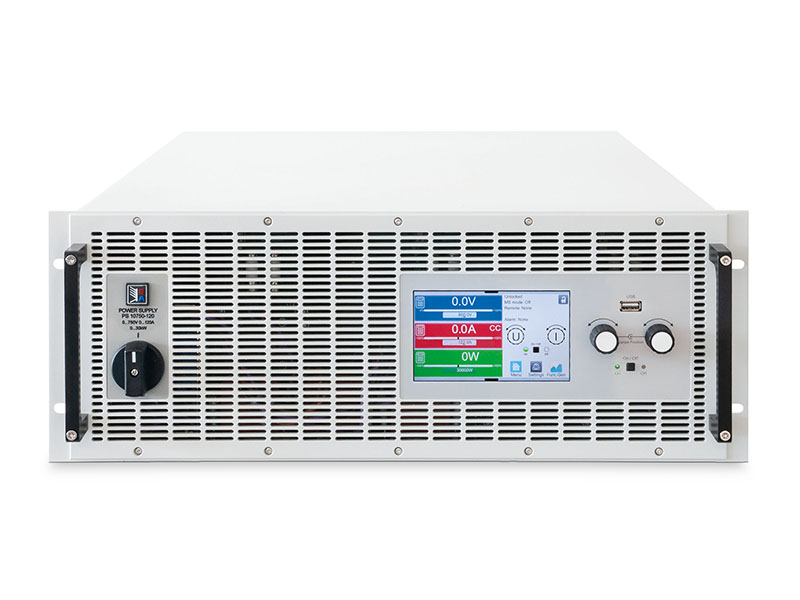

Elektro-Automatik EA-PS 10000 4U Programmable DC Power Supply Series

The Elektro-Automatik EA-PS 10000 4U Programmable DC Power Supply Series has several configurations. The devices in this series have maximum voltages from 60 V to 2000 V and maximum currents ranging from 40 A to 1000 A. These models have user-friendly applications, forced-air cooling, and a protection rating of IP20.

Product Info Product Options Related Products

Model	Voltage	Current	Power
EA-PS-10060-1000	60 V	1000 A	30000 W
EA-PS-10080-1000	80 V	1000 A	30000 W
EA-PS-10200-420	200 V	420 A	30000 W
EA-PS-10360-240	360 V	240 V	30000 W
EA-PS-10500-180	500 V	180 A	30000 W
EA-PS-10750-120	750 V	120 A	30000 W
EA-PS-10920-125	920 V	125 A	30000 W
EA-PS-11000-80	1000 V	80 A	30000 W
EA-PS-11500-60	1500 V	60 A	30000 W
EA-PS-12000-40	2000 V	40 A	30000 W
Series	EA-PS 10000 4U Series
Voltage Range	60 V – 2000 V
Current Range	40 A – 1000 A
AC Input (Voltage & Phases)	Range 1: 208 V, ±10%, 3 ph AC (with DC output power derating to 18 kW) Range 2: 380 – 480 V, ±10%, 3 ph AC
Weight	56 kg (126 lb.) with water cooling

Programmable DC power supply
Color TFT touchscreen
Maximum voltages from 60 V to 2000 V
Maximum currents ranging from 40 A to 1000 A
Forced-air cooling
Protection rating of IP20

EN 61010-1
IEC 61010-1
UL 61010-1
CSA C22.2 No 61010-1
BS EN 61010-1
EN 55011, class B
CISPR 11, class B
FCC 47 CFR part 15B, unintentional radiator, class B
EN 61326-1 include tests according to: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6

SKU: ELEK-PS10000-PSI10000-SERIES
