Espec MC-812R Ultra Low Temperature Chamber

Larger

Categories

Documents

Datasheet

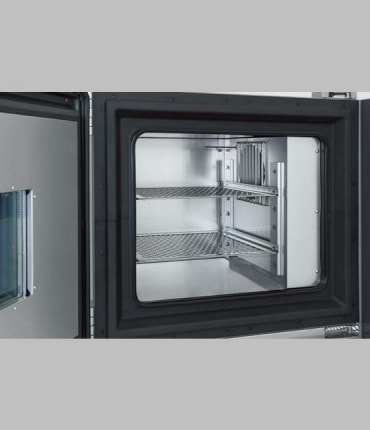

Despite its compact size, the Espec MC-812R Ultra Low Temperature Chamber can achieve low temperatures of -85°C, the lowest range of its class. On the high end, Espec MC-812R chambers can reach 180°C. The interior size of the Espec MC-812R is 2.2 cubic ft., same as model SU-662 and slightly larger than BTZ-133 & BTZ-175. Espec MC-812R Ultra Low Temperature Chambers are used for various purposes including temperature characteristic testing and low temperature storage testing. By adding the optional "Ethernet Port (LAN Port)", users can connect the chamber to local network areas. By doing so, you can control and monitor the Espec MC-812R Ultra Low Temperature Chamber from any computer on the network, using a web browser. This compact ultra-low temperature chamber can register up to 40 program operation settings with a maximum of 99 steps and 3 constant operation settings.

Exterior Dimensions (W x D x H)	35" x 24" x 47"
Interior Dimensions (W x D x H)	15.7" x 15.7" x 15.7"
Workspace Volume	2.2 cu. ft.
Temperature Low	-85°C
Temperature High	180°C
Humidity Range	No humidity control
Input Power	208V 3ph (220 & 380V optional) 14A max

Espec MC-812R Ultra Low Temperature Chamber
