Fairview Microwave FMAM3595

Broadband Amplifier | 1 – 40 GHz, 40 dB Gain

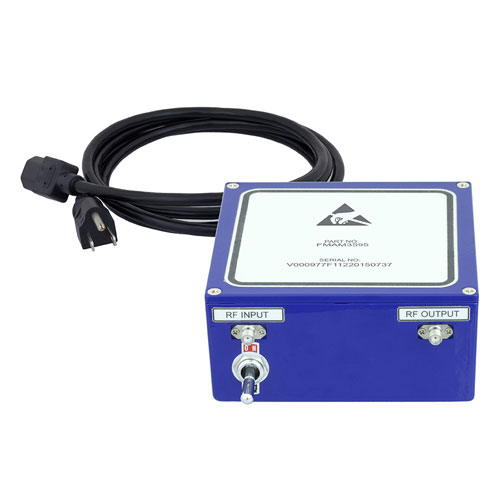

The Fairview Microwave FMAM3595 is a portable broadband RF amplifier covering a 1.0 to 40.0 GHz frequency range with 40 dB typical gain and a minimum P1dB of +22 dBm. It features 2.92 mm female input and output connectors, a front‑panel On/Off switch, and supports AC (120 VAC) or 12 VDC battery operation. The amplifier operates over –40 °C to +85 °C, offers ±2.5 dB gain flatness, and is designed for laboratory, test, and general‑purpose broadband signal amplification.

Product Info Related Products

Frequency Range	1.0 – 40.0 GHz
Typical Gain	40 dB
Gain Flatness	±2.5 dB typical (±3.0 dB max)
Output Power (P1dB)	+22 dBm minimum (1 – 18 GHz); +18 dBm typical (18 – 40 GHz)
Maximum Input Power	+15 dBm
Noise Figure	5 dB typical (mid‑band)
Input / Output VSWR	2.5:1 max
RF Connectors	2.92 mm female (input and output)
Power Requirements	120 VAC or 12 VDC external supply
Operating Temperature	–40 °C ... +85 °C
Dimensions (L × W × H)	4.92 × 4.92 × 2.1 in (125 × 125 × 53 mm)
Weight	2.74 lb (1.24 kg)
