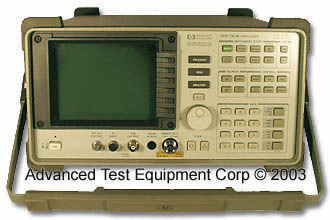

Keysight 8562B 9 kHz - 22 GHz Spectrum Analyzer

Discontinued

9 kHz - 22 GHz Spectrum Analyzer

Product Info Related Products

Frequency Range: 9 kHz to 22 GHz (extendable to 26.5 GHz with Option 026 and 325 GHz with external mixing)
Counter Resolution: 10 Hz - 1MHz (selectable)
Frequency Span Range: 0 Hz-2.5kHz x N
Resolution Bandwidth (-3 dB) Range: 100 Hz - 1MHz in a 1, 3, 10 sequence and 2 MHz
Video Bandwidth Range: 1 Hz - 3 MHz in a 1, 3, 10 sequence
Amplitude Range: +30 dBm to displayed average noise level
Reference Level Range: Log, -120 to +30 dBm in 0.1 dB steps
Displayed Average Noise Level:
- -120 dBm, 1 MHz to 2.9 GHz
- -121 dBm, 2.75 GHz to 6.46 GHz
- -110 dBm, 5.86 GHz to 13.0 GHz
- -105 dBm, 12.4 GHz to 19.7 GHz
- -100 dBm, 19.1 GHz to 22.0 GHz
Amplitude Accuracy Frequency Response (flatness)
- 1 kHz - 2.9 GHz, ±1.0 dB
- 2.75 - 6.46 GHz, ±1.0 dB
- 5.86 - 13.0 GHz, ±1.5 dB
- 12.4 - 19.7 GHz, ±1.5 dB
- 19.1 - 22.0 GHz, ±2.0 dB
Demodulation Modulation Type: AM and FM
RF Input: type N female, nominal impedance 50 ohms
Second IF Input: SMA female
First LO Output: SMA female
Calibrator Output: BNC female
10 MHz Reference (Input/Output): BNC female
Video Output: BNC female
LO Sweep/0.5 V per GHz Output: Shared BNC female
External Trigger Input: BNC female
HP-IB: Interface
