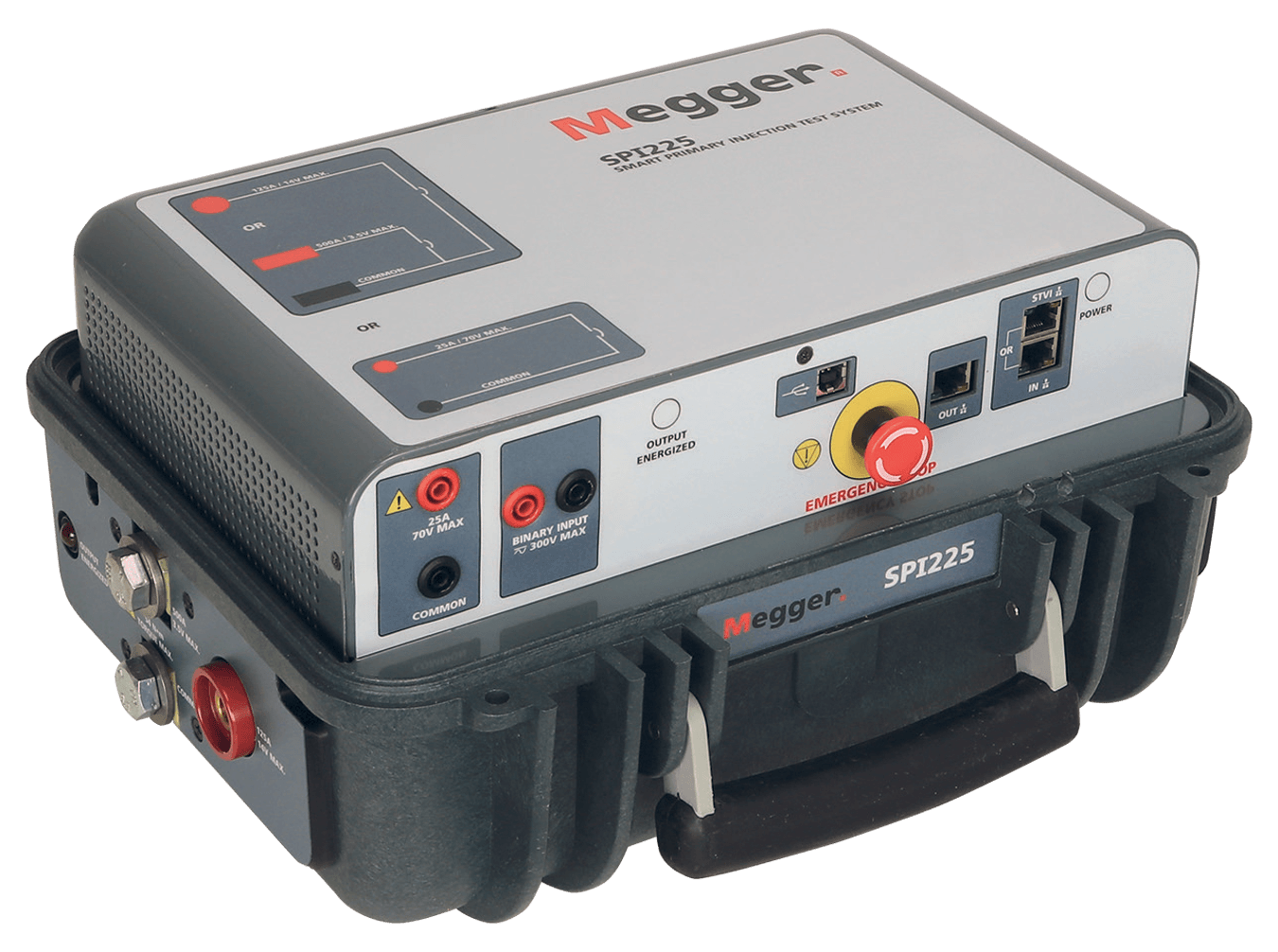

Megger SPI225 Smart Primary Injection Test System

The Megger SPI225 Smart Primary Injection Test System is a high current test system with an output of up to 2000 A. With user-friendly applications, such as the Smart Touch View Interface, the Megger SPI225 makes high current commissioning testing and low-voltage molded-case circuit breaker testing easy. The Megger SPI225 has a 5-digit auto ranging display, an operating temperature of 0° C to 50°C, and 0 to 90% non-condensing humidity. The Megger SPI225 model is ideal for injection testing for circuit breakers, overcurrent relays, circuit breakers, motor overloads, and more.

Product Info Related Products

Model	SPI225
Maximum output	2000 A
Ammeter (digital model)	Operating mode: memory, continuous Digital display: Autoranging display 5-digit Ranges: 1.0000 A to 99.999 kA Overall ammeter system: continuous ±1% of reading Accuracy: RMS pulse ±1.5% of reading
Timer range	Digital display: 5-digit autoranging display Ranges: 0.001 to 99999 seconds 0.01 to 99999 cycles Accuracy: ±1% of reading
Voltmeter (digital model)	Digital display: 5-digit autoranging display Ranges: 0.01 to 600.00 V Accuracy: ±1% of reading
Operating temperature range	0°C to 50°C
Storage temperature range	-30°C to 70°C
Humidity	0 to 90% (non-condensing)
Saftey	CSA, CE, IEC 61010
Communication ports	Ethernet (2), USB, Bluetooth
Dimensions (W x H x D)	14.2 x 7.6 x 12.0 in (360 x 194 x 305 mm)
Weight	44 lb. (20 kg)

Up to 2000 A output
Smallest primary injection test system in its class
First unit on the market to eliminate variac control
Output current regulation
Designed for switchgear commissioning, circuit breaker, CT commissioning, ground grid, and relay testing
Software includes thousands of circuit breaker TCC curves
