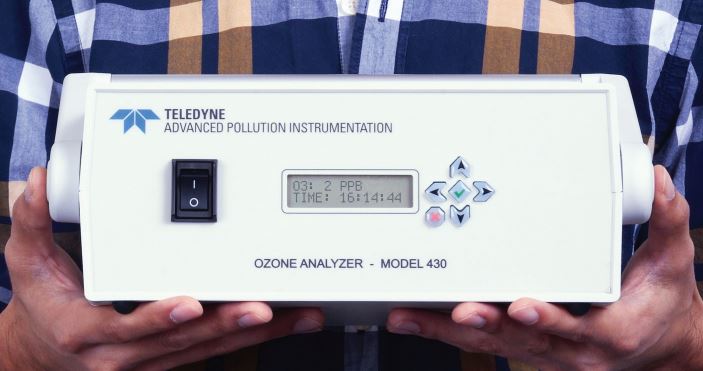

The Teledyne API 430 is a compact ozone analysis instrument that uses the proven UV-absorption principle; its small footprint and robust design make it ideal for a variety of applications where portability and accuracy are both necessary. Teledyne API 430 ozone monitors feature a robust design and low power consumption, an advantageous design for monitoring applications that require long autonomy periods such as rural and remote monitoring, saturation studies, and atmospheric research. The API 430's small footprint and quiet operation make it extremely useful for indoor air quality, surveying, and industrial hygiene applications. An optional battery pack provides up to 14 hrs. of run time on a full charge.
Features
- Proven UV absorption bench used in popular line of industrial ozone products
- Highest quality of construction
- Rugged and lightweight ABS polycarbonate chassis with handle
- Well suited for portable, low power monitoring applications
- Wide operating range
Specifications
| Ranges |
0 - 100 ppb (min), 0-20,000 ppb (max)
(user -selectable) |
| Measurement Units |
ppb, ppm, (user- selectable) |
| Zero Noise |
< 1 ppb (RMS) |
| Span Noise |
< 0.5% of reading (RMS) above 100 ppb |
| Lower Detectable Limit |
< 2 ppb |
| Zero Drift |
< 1 ppb/24 hours |
| Span Drift |
< 1% of full scale/24 hours |
| Lag Time |
<20 seconds |
| Rise/Fall Time |
< 15 seconds to 95% |
| Linearity |
1% of full scale |
| Precision |
< 0.5 ppb or 0.5% of reading above 100 ppb |
| Sample Flow Rate |
0.8 L/min +/-10% |
| Typical Power Consumption |
12VDC, 9W |
| Analog Output Ranges |
0 - 5V |
| Analog Output Resolution |
16-Bit Resolution |
| Internal Data Storage Capacity |
10,000 lines (1 hr avg = 1.1 yr) |
| Included I/O |
1 x RS-232
1 x 0-5V analog output
5 x 0-5V analog input
1 x SD card slot |
| Operating Temperature Range |
5 - 40ºC (with US EPA Approval) |
| Dimensions (HxWxD) |
4.2" x 7.1 ” x 10.2” (107 x 180 x 597 mm) |
| Weight |
5.2 lbs (2.4 kg) |
| Humidity Range |
0-95% RH non-condensing |
Certifications
Specifications are subject to change without notice.
All specifications are based on constant conditions.
|
US EPA Federal Equivalent Method EQOA - 1015-229 |
Applications
- Ambient Air Monitoring
- Road Side Air Monitoring
- Water Treatment
- Food and Beverage
