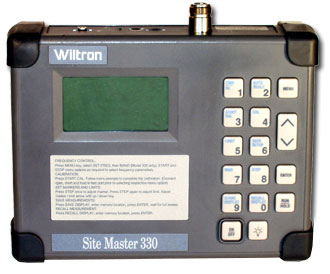

Anritsu/Wiltron 330 Site Master Portable Transmission Line Tester
Enlarge Image
Anritsu 330
Request Quote Print Page
330 Datasheet
700 MHz - 1100 MHz, 1400 MHz - 2200 MHz, 2200 MHz - 3300 MHz

Anritsu 330 Features
  • Wide band coverage: 700 to 1100MHz, 1400 to 2200 MHz, 2200 to 3300 MHz
  • PreciVSWR and return loss measurements
  • Distance-to-Fault capability
  • Immune to incoming interference
  • CW mode for optimizing antennas, transmission lines and single port devices
  • Limit lines and audible Pass/Fail indicator
Anritsu 330 Specs
  • Frequency Accuracy (CW mode): 75 ppm
  • Frequency Resolution: 100 kHz
  • Measurement Range VSWR: 1.00 to 65.00
  • Return loss resolution: 0.1dB
  • Fault location resolution, nominal: 1% of max. range
  • Dynamic range: 54 dB
  • Directivity (corrected): 36 dB
  • Test port, Type N: 50W, 75W with adapter
  • Max. power output, nominal: -9dBm
  • Immunity to interfering signals up to the level of +2: -15 dBm
  • Max. input (damage level): +22dBm
