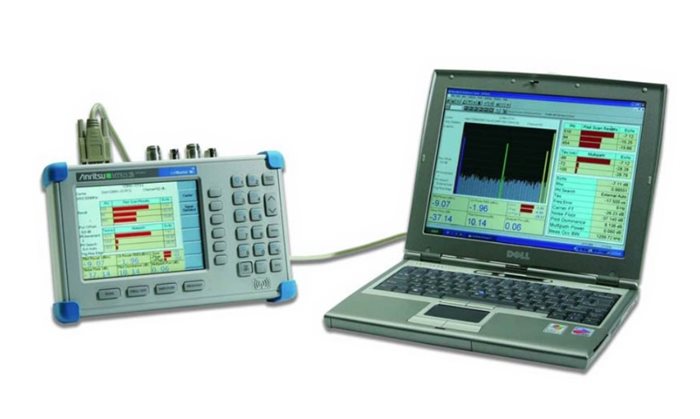

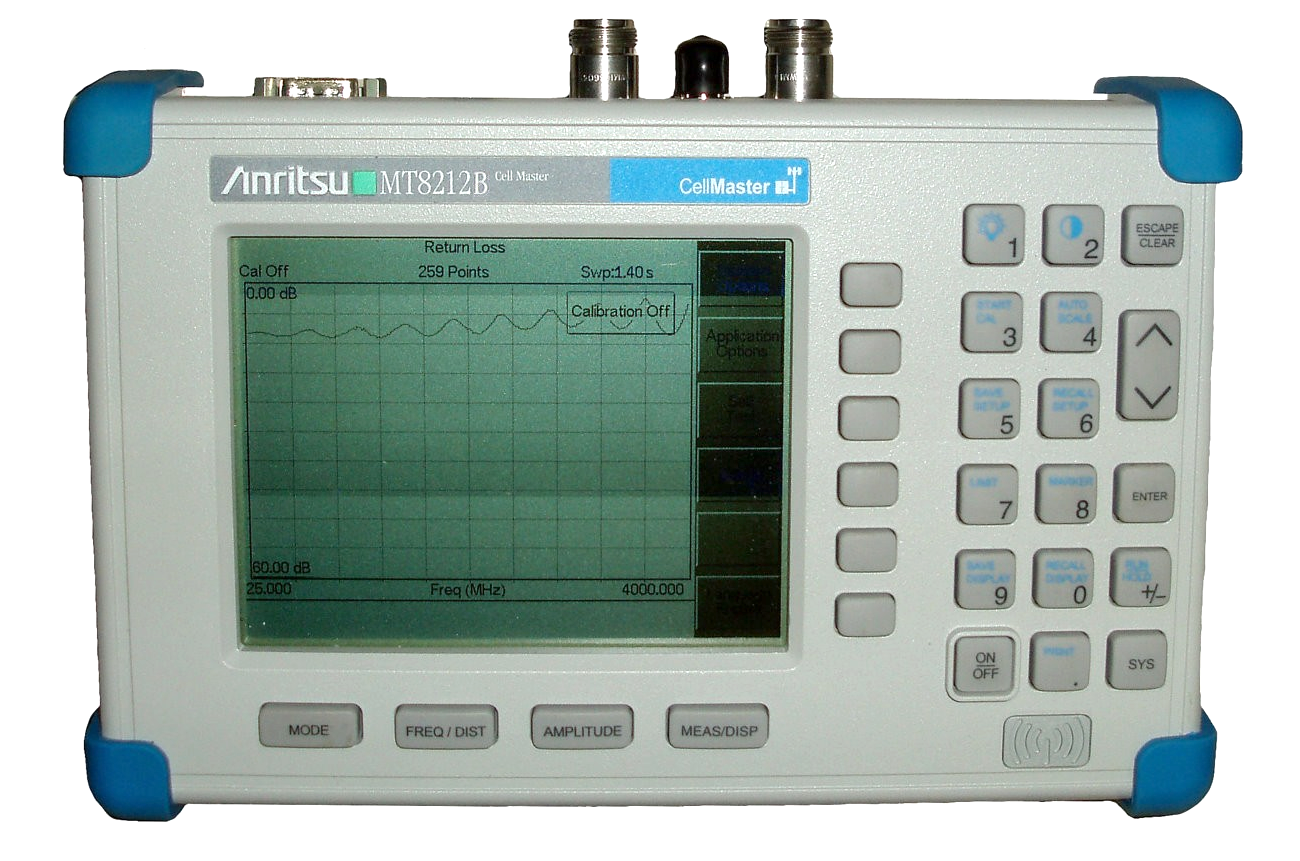

Anritsu MT8212B BTS Cell Master Base Station Analyzer

The Anritsu MT8212B BTS Cell Master Base Station Analyzer combines all necessary functions for troubleshooting base stations. This unit has three main modes, including Cable And Antenna Analyzer Mode (25 to 4000 MHz), Cable And Antenna Analyzer Mode (100 kHz to 3000 MHz), and Power Meter Mode (4.5 MHz to 3000 MHz). The Anritsu Handheld MT8212B is specifically designed for field environments while providing accurate measurement in harsh testing conditions. This Cell Master Base Station Analyzer is capable of detecting small faults quickly before major failures occur, allowing easily process to locate, identify, and record various signals.

Functional Highlights

Cable and Antenna Analyze
Spectrum Analyze
AM/FM Demodulator
Power Meter
Channel Scanner
Transmission Measurement
Interference Analyzer
GPS Receiver
cdmaOne, CDMA2000 1xRTT, and CDMA2000 1xEV-DO measurements
GSM Measurements
T1 and E1 Analyzer

Product Info Product Options Related Products

Cable And Antenna Analyzer Mode
Frequency Range	25 to 4000 MHz
Frequency Accuracy	±75 ppm @ +25°C
Frequency Resolution	100 kHz
Output Power	<0 dBm (–10 dBm nominal)
Immunity to Interfering Signals	On-channel +17 dBm On-frequency –5 dBm
Measurement Speed	≤3.5 msec / data point (CW ON)
Number of Data Point	130, 259, 517
Measurement Accuracy	>42 dB corrected directivity after calibration
Spectrum and Interference Analyze Mode
Frequency Range	100 kHz to 3000 MHz
Frequency Reference	Aging: ±1 ppm/yr Accuracy: ±2 ppm
Measurement Range	+20 dBm to –135 dBm
Input Attenuator Range	0 to 51 dB
Dynamic Range	>65 dB, typical
Resolution Bandwidth (–3 dB)	100 Hz to 1 MHz in 1-3 sequence ±5% Accuracy
SSB Phase Noise (1 GHz) @ 30 kHz Offset	≤–75 dBc/Hz
Spurious Responses Input Related	≤–45 dBc
Power Meter Mode
Frequency Range	4.5 MHz to 3000 MHz
Display Range	-80 dBm to +20 dBm
Offset Range	0 to +60 dB
Accuracy	±1 dB typical (±1.5 dB max), ≥10 MHz to 3 GHz ±2 dB typical <10 MHz
VSWR	1.5:1 typical (Pin > –30 dBm, >10 MHz to 2.4 GHz)
Maximum Power	+20 dBm (0.1W) without external attenuator

Uses Frequency Domain Reflectometry (FDR) to help technicians and wireless field engineers detect cable, feedline and antenna system problems before they become costly, time-consuming system failures
Built-in preamplifier, can measure signalsdown to –135 dBm
Direct connect or over the air
Simple and easy-to-operate transmitter performance monitoring
Integrated spectrum analysis capability provides the “ultimate” in measurement flexibility for field environments and applications requiring mobility
Performs accurate power measurements, reducing holes and interference
Identify and locate interfering signals that cause dropped calls and coverage problems

SKU: ANRI-MT8212B
