Anritsu S820C Microwave Site Master and Antenna Analyzer

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent Anritsu S820C Microwave Site Master and Antenna Analyzer
Enlarge Image

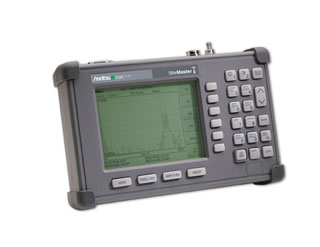

Anritsu S820C
Request Quote Print Page
Manual Brochure
The Anritsu S820C Microwave Site Master and Antenna Analyzer is the most accurate and convenient tool available for field installation, verification, troubleshooting and repair of microwave communication systems. Difficult test specifications become easy to verify. The S820C improves quality and reduces maintenance expenses by providing vector corrected measurements via calibration and a convenient user interface. Microwave Site Master targets microwave site installers, point-to-point operators, point-to-multipoint operators, radio manufacturers, PCS/Cellular operators, utility companies and private/public networks that support microwave links. These microwave Site Master models test both waveguide and coaxial cables more conveniently than laboratory sized scalar analyzers or microwave test sets.
Anritsu S820C Features
  • Accurately tests coaxial cable/waveguide transmission line and antennas
  • Tune mode for waveguide component alignment/testing
  • Superior immunity to live site RF interference
  • Clearly defined user interface for coaxial cable and waveguide media
  • Pop up menus for cable list, waveguide list and compatible flange list
  • Quickly select cable/waveguide type and test parameters without setup error
  • Large, high resolution display allows for easy viewing and trace interpretation under a variety of conditions
Anritsu S820C Specs
Frequency Range 3.3 GHz to 20 GHz
Frequency Accuracy (CW mode) ±75 ppm @ +25°C
Display Resolution 130, 259, 517 data points
Immunity to interfering signals –10 dBm
Return Loss Range 0 to 54 dB
Resolution 0.01 dB
SWR Range 1 to 65
Resolution 0.01
Distance-to-Fault Vertical range Return loss: 0 to 54 dB
Horizontal range (meter) 0 to (data points –1) x resolution to a maximum of 1000 m (3281 ft.) where data points = 130, 259, 517
Horizontal resolution, rectangular windowing for coaxial cable (meter) (1.5 x 108) (υρ)/Δ frequency
Horizontal resolution for waveguide 1.5 x108 (√1-(Fc/F1)2)/ΔF
Coax/Waveguide Insertion Loss Range 0 to 54 dB
Resolution 0.01 dB
