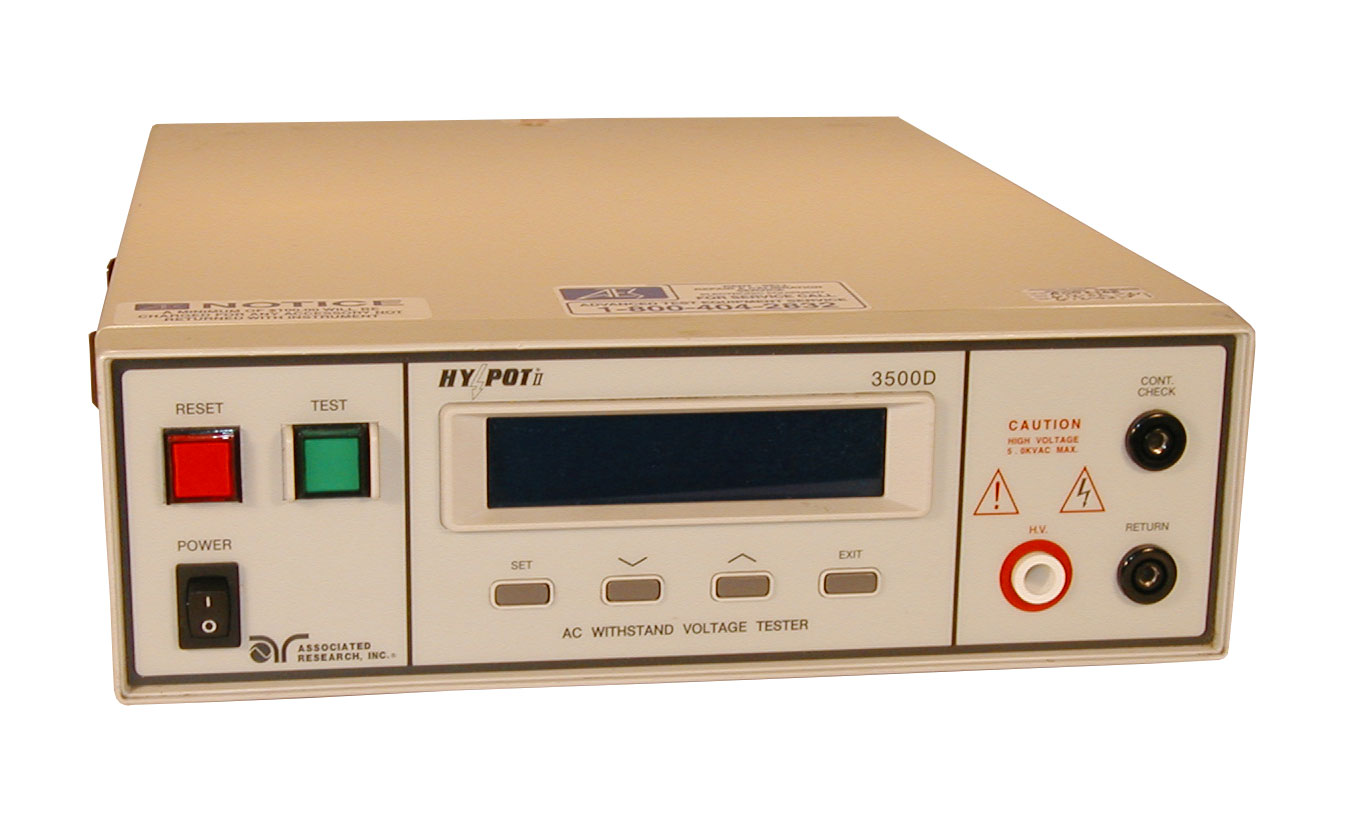

Associated Research 3500D AC Hipot w/Continuity Test Set


Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Associated Research 3500D AC Hipot w/Continuity Test Set
Enlarge Image
Associated Research 3500D
Request Quote Print Page
Specifications
5kV @ 12mA Hipot Ground Continuity Tester with timer

Associated Research 3500D Specs
Output Range 0 - 5 kV AC
Output Resolution 10 volt/step
Output Accuracy ±2% of setting + 5 volts
Leakage Current 12 mA
Adjustable High and Low Limits (0.01 mA resolution)
Timer 0.0 - 999.9 seconds
Ground Continuity Current DC 0.1A ± 0.01A, fixed
Input Voltage 120/230 V AC, ± 15 %, Single Phase, 47 Hz - 63 Hz
Weight 20 lbs (9.07 kg)
