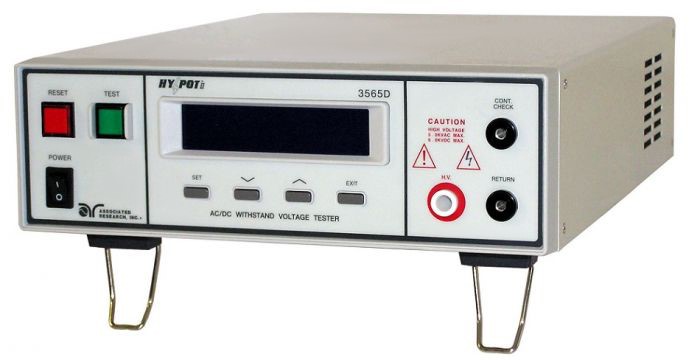

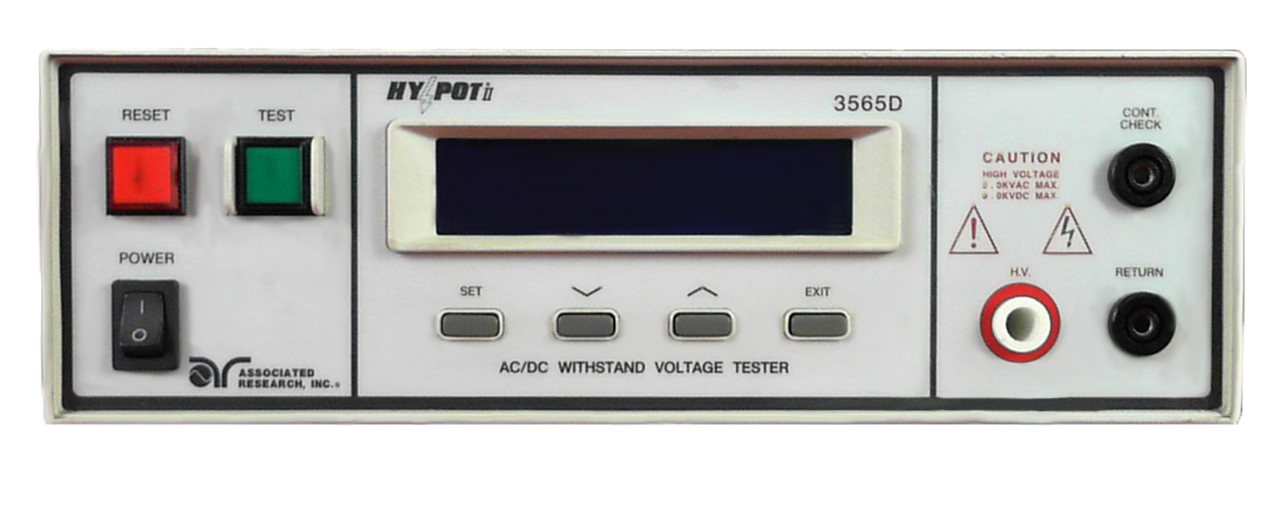

Associated Research 3565D AC/DC Hipot w/Ground Continuity Test Set

Associated Research 3565D AC/DC Hipot w/Ground Continuity Test Set
Enlarge Image
Associated Research 3565D
Request Quote Print Page
Specifications

Applications:

  • Design (performance) Testing - Determining design adequacy to meet service conditions
  • Product Line Testing - Detecting defects in material or workmanship during processing
  • Acceptance Testing - Proving minimum insulation requirements of purchased parts
  • Repair Service Testing - Determine reliability and safety of equipment repairs



Specifications:

Output Range AC: 0 - 5 kV, 2V / step, 12 mA
DC: 0 - 6 kV, 2V / step, 5 mA
Regulation: ±(1% of output + 5V)
Output Frequency Sinewave, Distortion: <2% THD
Output Resolution 10 volt/step
Output Accuracy ±2% of setting + 5 volts
Leakage Current 12 mA
Adjustable High and Low Limits (0.01 mA resolution)
Timer 0.0 - 999.9 seconds
Ground Continuity Current DC 0.1A ±0.01A, fixed
Input Voltage 120/230 VAC, ±15 %, Single Phase, 47 - 63 Hz
Weight 20 lbs (9.07 kg)
