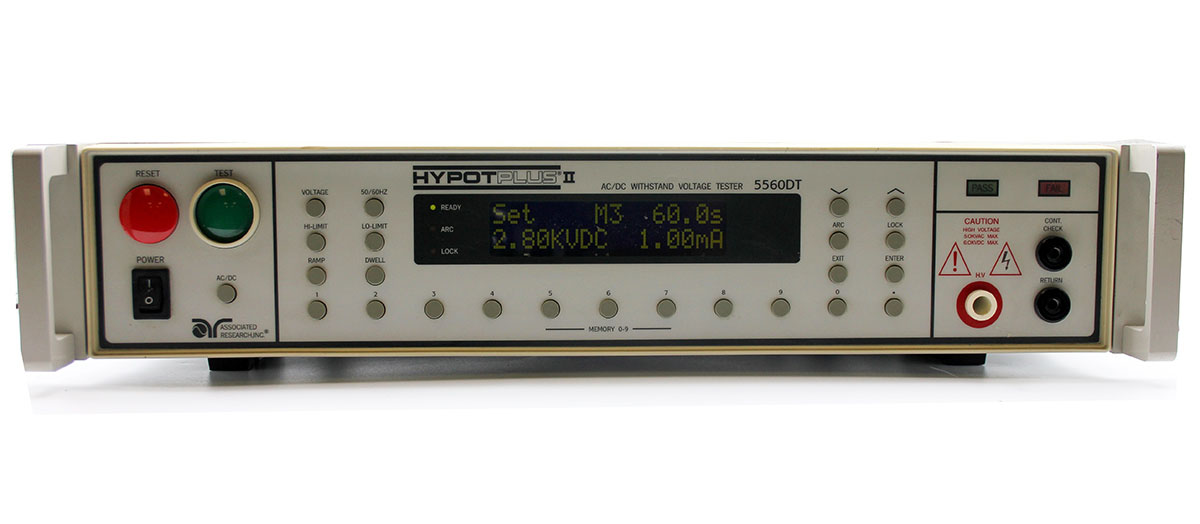

Associated Research 5560DT
Request Quote Print Page
Manual Brochure

The Associated Research 5560DT HypotPLUS®II includes full microprocessor control to enhance ease of use and operator safety. This instrument provides you with all the capability you need to meet hipot and continuity tests required by UL, CSA, VDE, IEC, ToV, other safety agencies and the European Norms including the LOW VOLTAGE DIRECTIVE 73/23/EEC. The Associated Research 5560DT HypotPLUS®II is an AC/DC model to make it flexible enough to meet a wide range of testing applications.



Features:


  • Microprocessor Digital Design with Software Friendly Menuing
  • Tamper Proof Front Panel Controls
  • Enhanced PLC & Ten Volt Analog Signal for Automated Applications
  • Can be Interconnected to HYAMP® II Ground Bond Tester to form a Semi-Automated Test System
  • Advanced Failure Detection System Including Continuity, LO, HI, Arc, Short and Breakdown
  • Storage of up to 10 different test programs
  • Ground Continuity Test
  • Remote memory access
  • Resolution down to 10 microamps
  • LCD displays setup parameters & results
  • Enhanced remote control
  • CE approved & ToV listed


Specifications:


Input 115 VAC (± 15%), 47 Hz - 63 Hz, Single Phase 230 VAC (± 15%), 47 Hz - 63 Hz, Single Phase User Selectable
Fuse 115/230 VAC-5 Amp
Output Rating 5 kV AC @ 20 mA
6 kV DC @ 6 mA
Output Adjustment 0 - 5 kV AC (6 kV DC), 10 volt/steps
0-20.00 mA AC & 6 mA DC, 0.01 mA/steps
High Trip Range 0.05 - 20.00 mA AC & 0.02-6.00 mA DC
Accuracy ±(2% of setting + 0.02 mA)
Low Trip Range 0.00 - 19.99 mA AC & 0.00-5.99 mA DC
Accuracy ±(2% of setting + 0.02 mA)
Continuity Trip 1.1 ohms maximum at 0.1 Amp
Failure Detector Audible & Visual displayed on LCD meter holds breakdown voltage and leakage current reading after failure
Voltage Display 3 Digits, 6.00 kV Full Scale, LCD Display
Accuracy: Readings ± (2% of reading + 10 volts) Settings ± (2% of reading + 5 volts)
Current Display
4 Digits, 20.00 mA Full Scale, LCD Display Accuracy: Readings ± (2% of reading + 0.02 mA)
DC Output Ripple ≤5% (6 kV DC, 6 mA)
AC Output Waveform Sine wave, Distortion² 1%
AC Output Frequency 50 Hz or 60 Hz, User Selectable
Output Regulation 1% of Setting + 5 Volts
Dwell Timer 0.5 - 999.9 seconds in 0.1 second increments or continuous, accuracy ±(0.1% of reading + 0.05 seconds)
Ramp Timer 0.5 - 99.9 seconds in 0.1 second increments accuracy ±(0.1% of reading + 0.05 seconds)
Remote (PLC) Inputs-Test, Reset, Memory Select Outputs-Pass, Fail, Remote Alarm, Test in Process
Memory Allows storage of up to 10 different test programs
Security User selectable password to avoid unauthorized access to test setup program
Line Cord Detachable 7 ft. (2.13 m) power cable terminated in a three prong grounding plug
Terminations 5 ft. (1.52 m) high voltage and return leads with clip and a standard U.S. style (NEMA 5-15) remote receptacle box for testing items terminated with a line cord. International plugs also available
Mechanical Bench or rack mount (2U height) with tilt up front feet
Dimensions: 17" x 3.5" x 16.5" (W x H x D)
Weight 25 lbs. (11.34 kg) net
Environmental Operating Temperature 32° -113° F (0° - 45°C) Relative Humidity - 0 to 95%
Calibration Traceable to National Institute of Standards and Technology (NIST). Calibration controlled by software. Adjustments are made through front panel keypad in a restricted access calibration mode. Calibration information stored in non-volatile memory
