EMC Partner MIG0600MS Multiple Stroke Avionics Test Generator

Rent EMC Partner MIG0600MS Multiple Stroke Avionics Test Generator
Enlarge Image

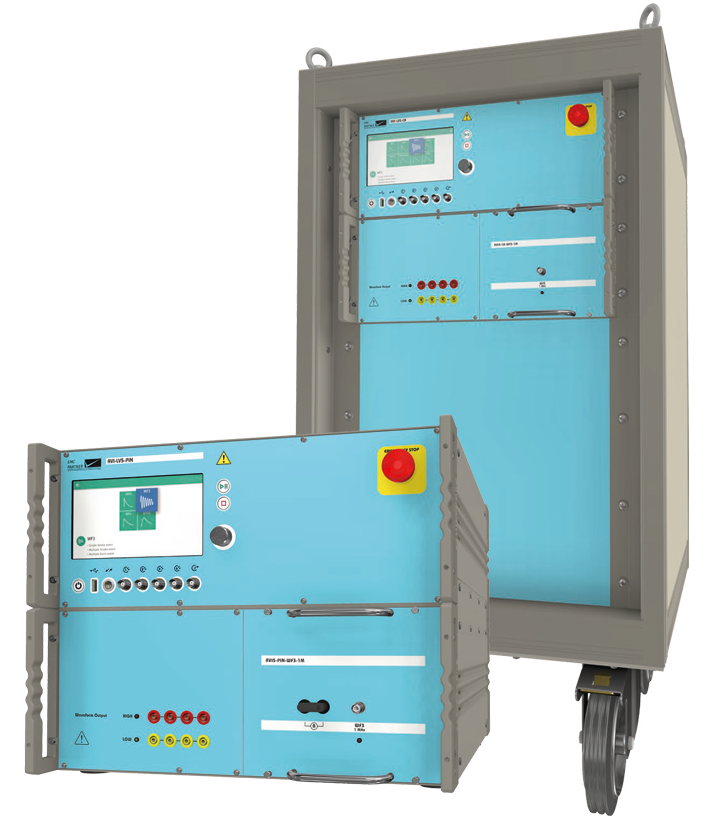

EMC Partner MIG0600MS
Request Quote Print Page
Brochure
Used for PIN injection and single stroke cable bundle testing up to level 4, the EMC Partner MIG0600MS Multiple Stroke Avionics Test Generator is an extension to the MIG0600SS which adds multiple stroke capability. Multiple stroke patterns are pre-programmed that cover all current requirements. Additionally, user defined patterns can be assembled on a PC using the EMC PARTNER FW-Load software and uploaded into the MIG0600MS. A maximum of 24 pulses can be programmed in each stroke with the amplitude of the subsequent strokes variable under user control. Applicable standards include RTCA DO-160 section 17, section 19, section 22, and section 25.

EMC Partner MIG0600MS Specs
  • DO160 Waveforms: W1, W4, W5A & W5B
  • W1 - 6.4/70μs: 15A up to 1600A (3200A) *
  • W4 - 6.4/70μs: 75V up to 1600V
  • W5A - 40/120μs: 75A up to 2000A (10000A) *
  • W5B - 50/500μs: 75A up to 2000A (5000A) *
  • Multiple Stroke pulse spacing: 10ms up to 500ms
  • Stroke duration: 0.01 up to 50s
  • Repetition: 60 up to 999s
  • Maximum pulses: 25 every 10 s
  • First peak A1: 160V up to 3200V
  • Subsequent peaks A2: 50V up to 400V
  • Multiple stroke pattern: user programmable
* Figures in brackets indicate system level with coupler
